APMT 1604PDER-F:M8330

APMT 1604PDER-F:M8330

SKU DOR7447833
by Dormer Pramet
Primary Use: Possible Use:

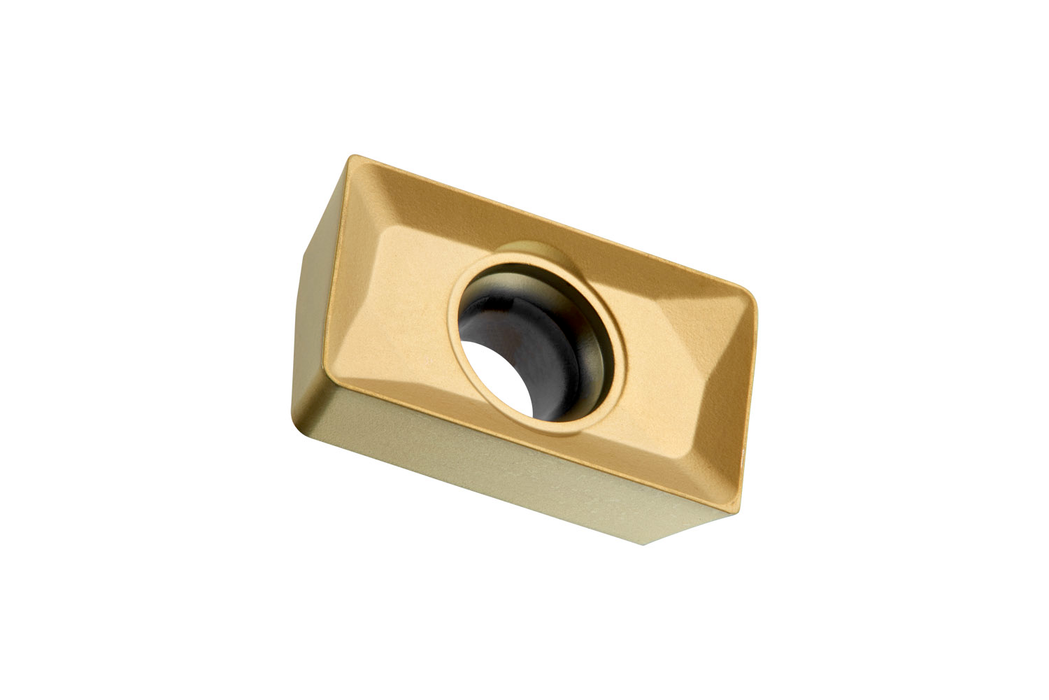

Single-sided milling insert APMT 1604 with chip-breakers, 85° parallelogram for a maximum depth of cut of .5118", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$28.97 - $28.97
$28.97
$28.97 - $28.97
$28.97
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

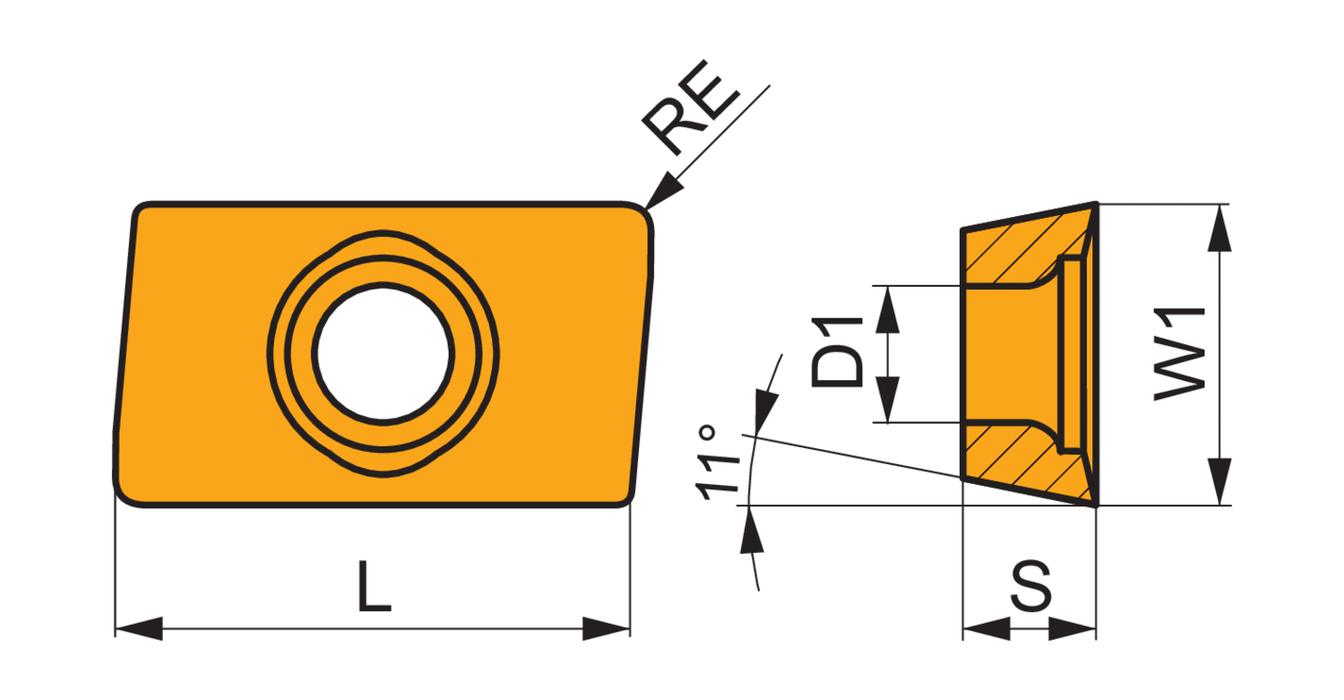

Max. Depth of Cut: 0.512

Insert Design: APMT

Insert Shape Code: A - parallelogram 85° included angle

Insert Thickness: 0.187

Chip Breaker: F

Grade: M8330

EDP: 7447833

EAN: 3603603385474

MFG Part Number: 7447833
