CCMX 08T308S-TS1:M8330

CCMX 08T308S-TS1:M8330

SKU DOR7447872
by Dormer Pramet
Primary Use: Possible Use:

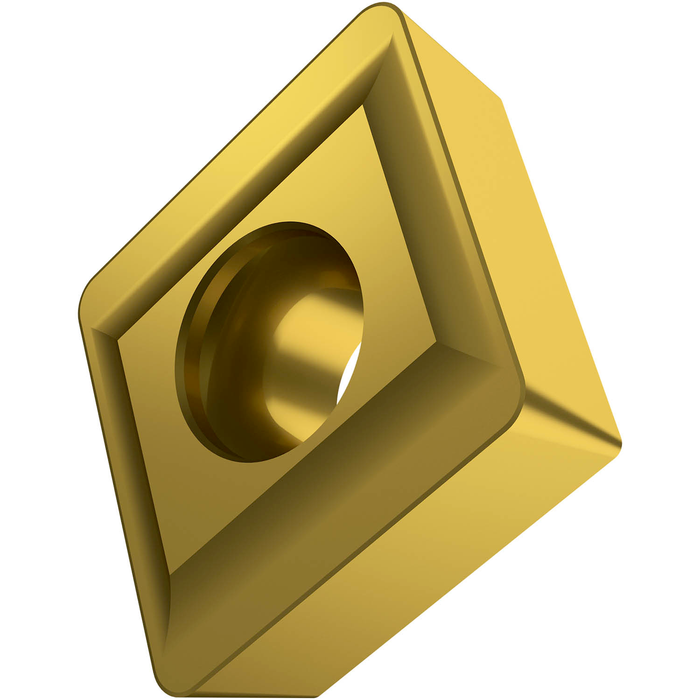

Single-sided milling insert CCMX 08T3, 80° rhomboid for a T-slot milling cutter of 1.2598", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and TS1 geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with T-slot mill F-SCC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$24.60 - $24.60
$24.60
$24.60 - $24.60
$24.60
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

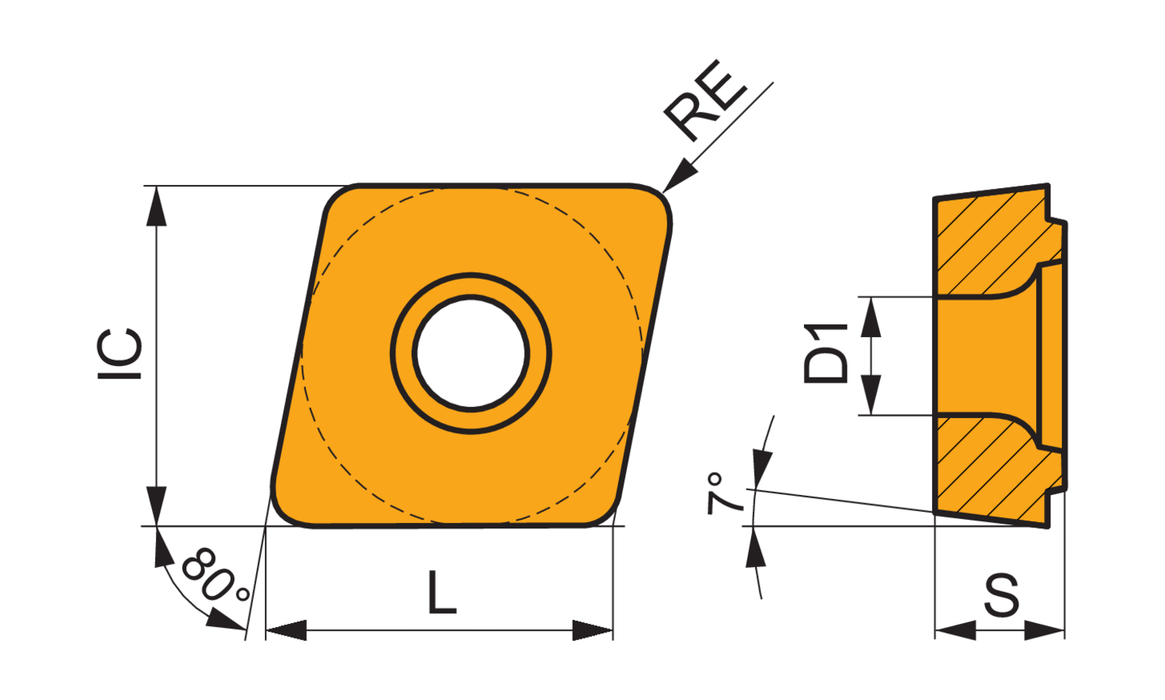

Insert Design: CCMX

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.173

Inscribed Circle Diameter: 0.316

Chip Breaker: TS1

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7447872

EAN: 3603603385511

MFG Part Number: 7447872
