CNHQ 1005AZTN:M8330
SKU DOR7447875
Primary Use:
Possible Use:

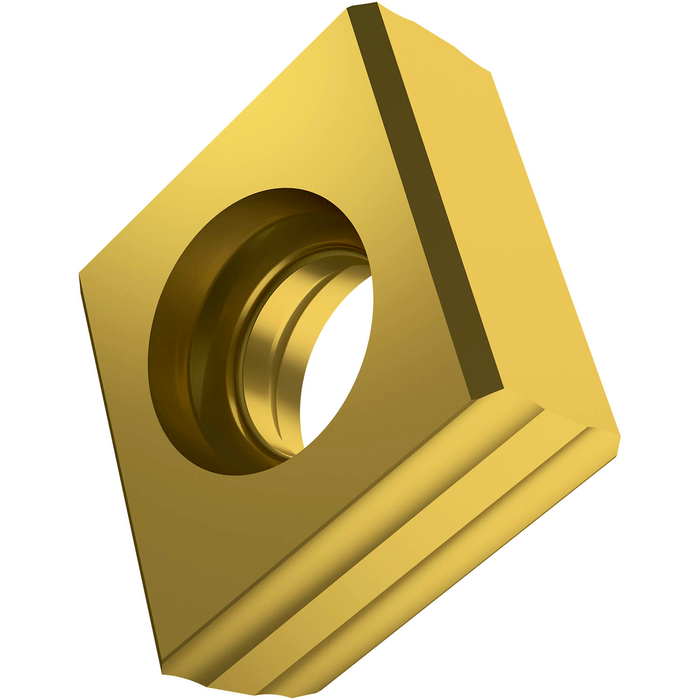

Double-sided disc milling insert, for a cutting width of .5512" to maximum .7283" with cutting edges with facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with disc mills S90CN(XN)
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$45.77
-
Original price
$45.77
Original price
$45.77
$45.77
-
$45.77
Current price
$45.77
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

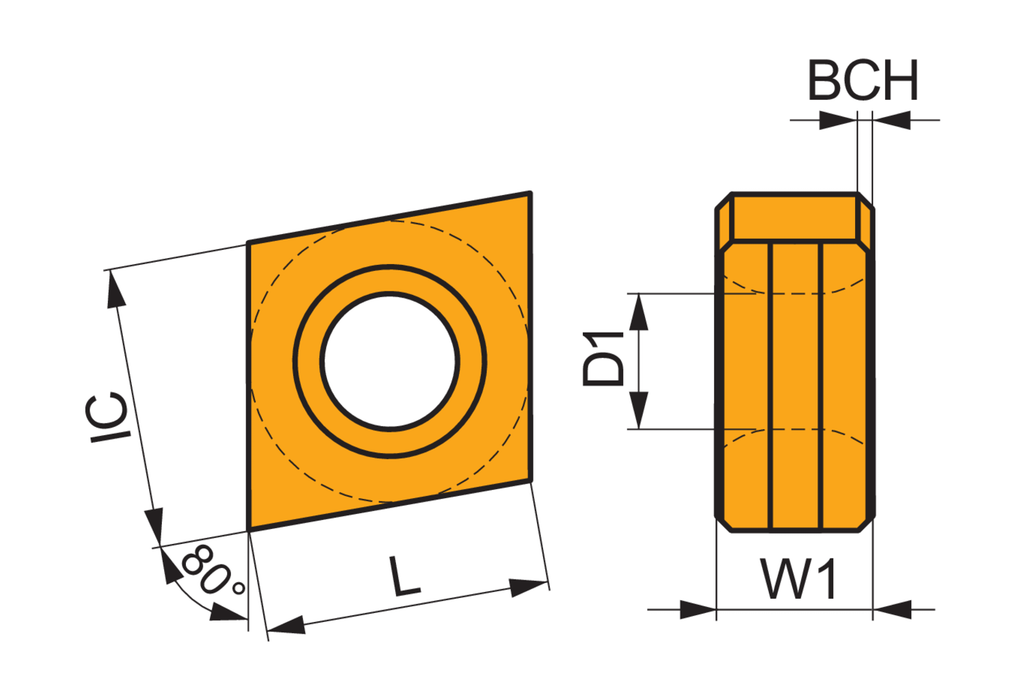

Insert Design: CNHQ
Insert Shape Code: C - rhombic 80° included angle
Inscribed Circle Diameter: 0.394
Chip Breaker: With chipbreaker -no designation
Grade: M8330
EDP: 7447875
EAN: 3603603385542
MFG Part Number: 7447875
