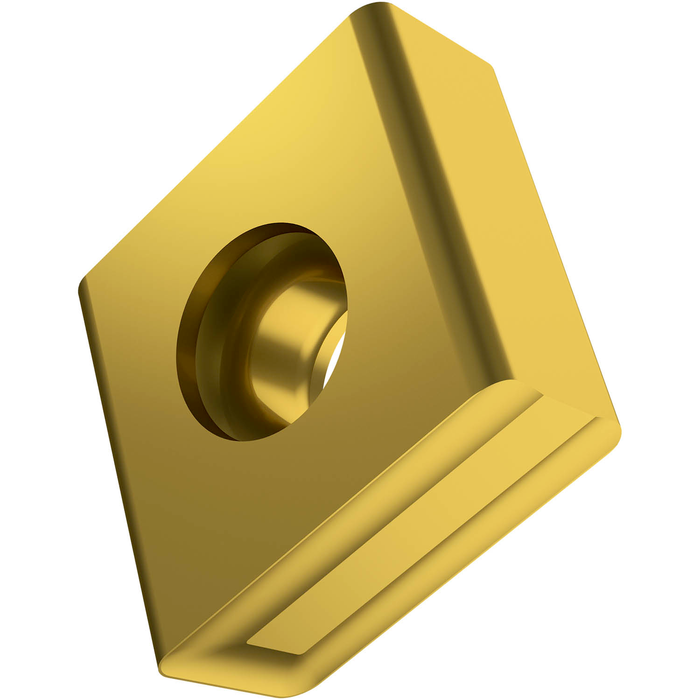

CNM 563:M8330

CNM 563:M8330

SKU DOR7447876
by Dormer Pramet
Primary Use:

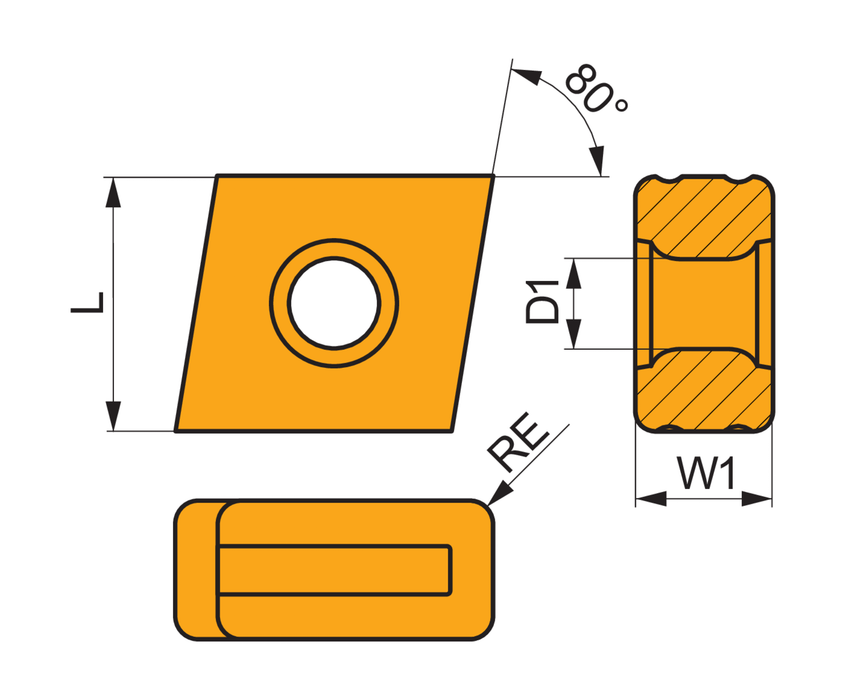

Double-sided milling insert CNM 563, 80° rhomboid for a maximum depth of cut of .5512", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-M, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$43.80 - $43.80
$43.80
$43.80 - $43.80
$43.80
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.551

Insert Design: CNM

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.315

Chip Breaker: With chipbreaker -no designation

Grade: M8330

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 7447876

EAN: 3603603385559

MFG Part Number: 7447876
