LNGX 120508ER-M:M8330

LNGX 120508ER-M:M8330

SKU DOR7447901
by Dormer Pramet
Primary Use:

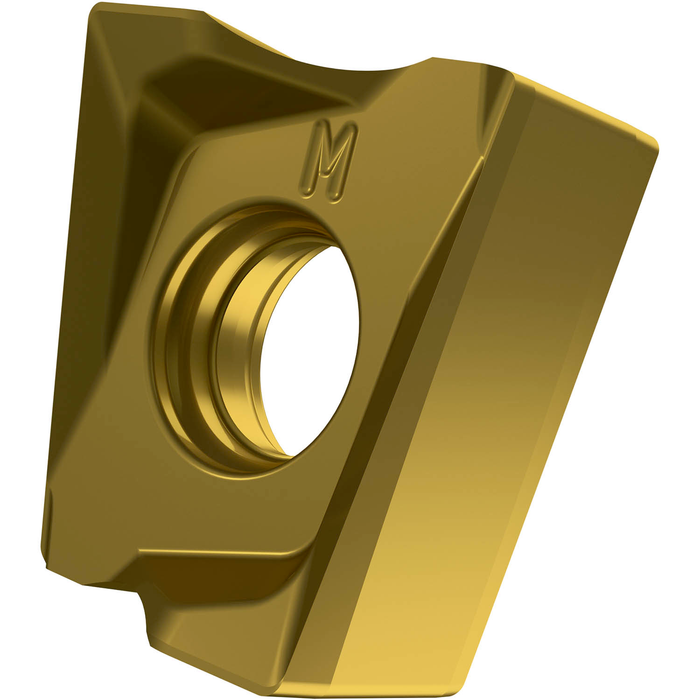

Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of .3543", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills SLN12

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$29.61 - $29.61
$29.61
$29.61 - $29.61
$29.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

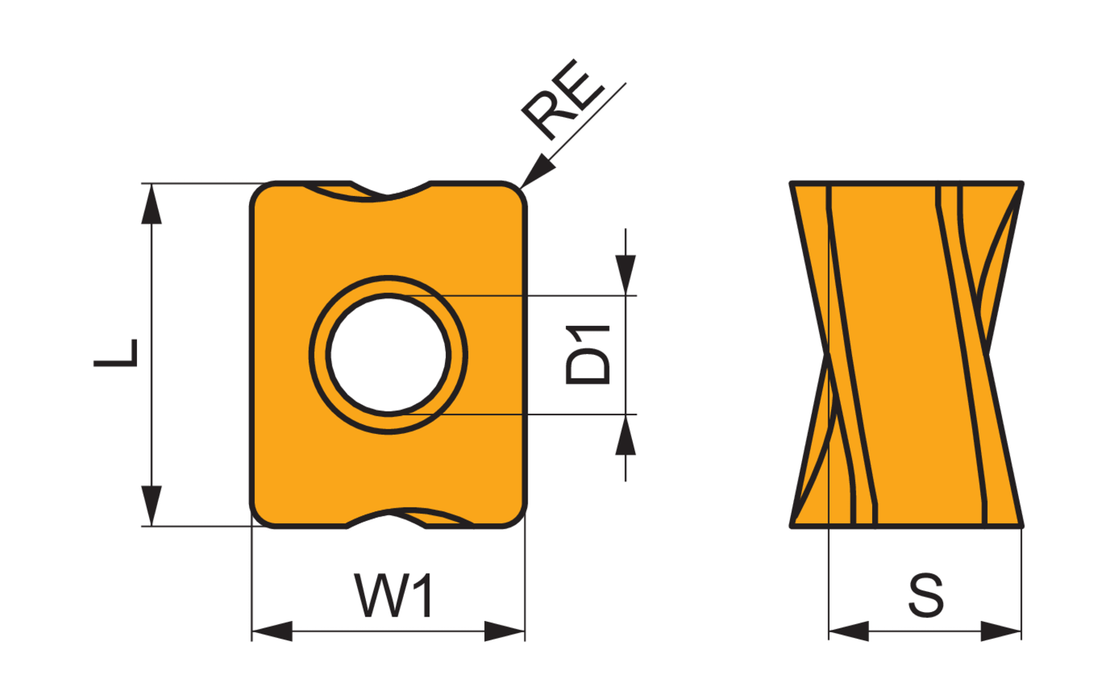

Max. Depth of Cut: 0.354

Insert Design: LNGX 12

Insert Shape Code: L - rectangular

Insert Thickness: 0.235

Chip Breaker: M

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7447901

EAN: 3603603385702

MFG Part Number: 7447901
