ODEW 0605ZZN:M8330

ODEW 0605ZZN:M8330

SKU DOR7447915
by Dormer Pramet
Primary Use: Possible Use:

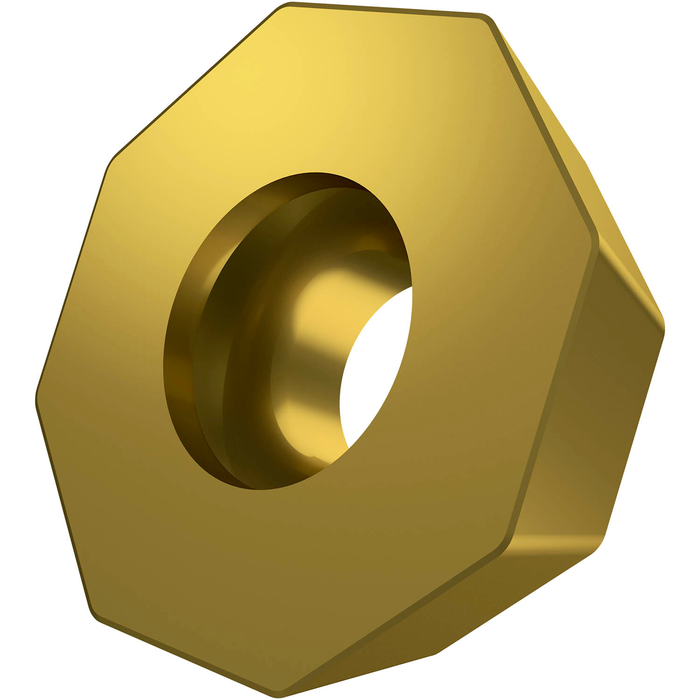

Single-sided milling insert ODEW 0605 with a plane rake surface, octagonal for a maximum depth of cut of .122", with " corner radius, an indexing accuracy according to ISO-tolerance class-E, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with face mills SOD06D

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$26.57 - $26.57
$26.57
$26.57 - $26.57
$26.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

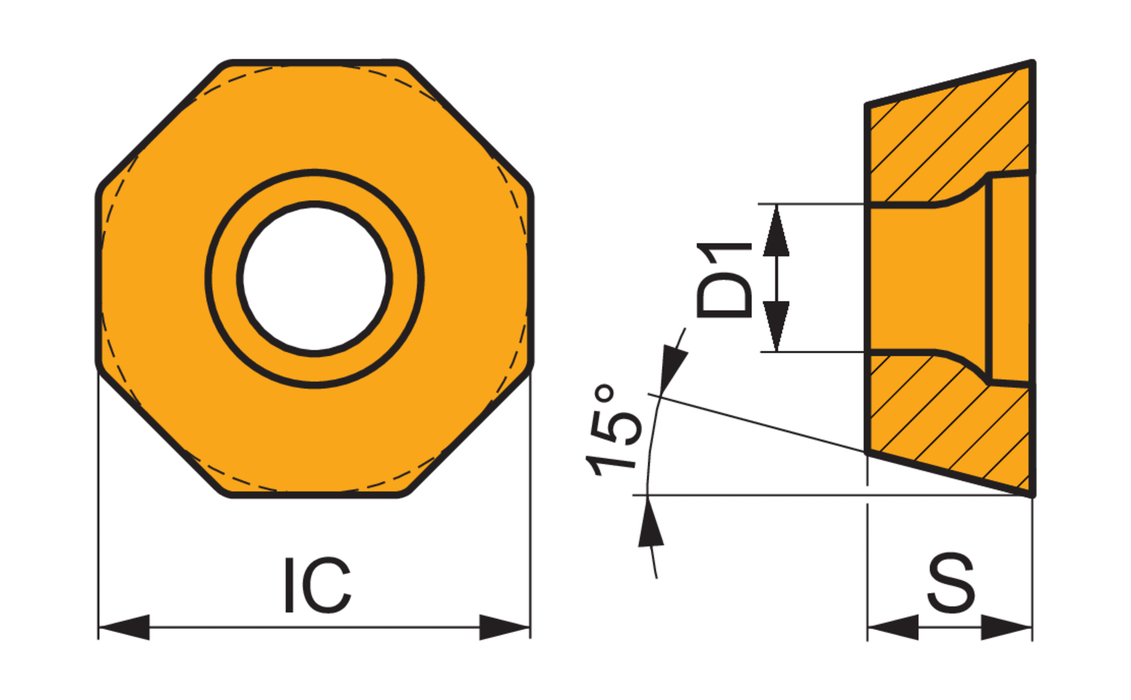

Max. Depth of Cut: 0.122

Insert Design: ODEW

Insert Shape Code: O - octagonal

Insert Thickness: 0.219

Inscribed Circle Diameter: 0.625

Chip Breaker: No chipbreaker

Grade: M8330

EDP: 7447915

EAN: 3603603385849

MFG Part Number: 7447915
