OEHT 0604AESR-M:M8330

OEHT 0604AESR-M:M8330

SKU DOR7447921
by Dormer Pramet
Primary Use: Possible Use:

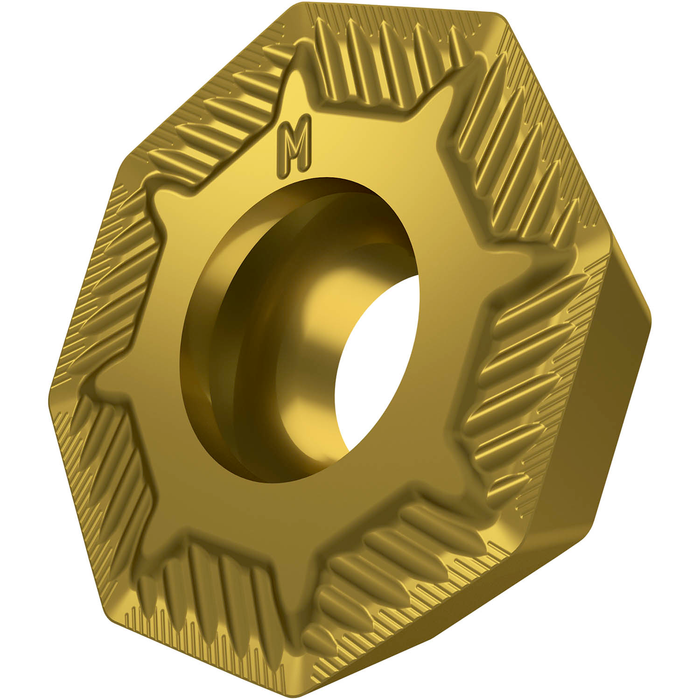

Single-sided milling insert OEHT 0604 with chip-breakers, octagonal for a maximum depth of cut of .1299", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills SOE06Z

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$29.61 - $29.61
$29.61
$29.61 - $29.61
$29.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

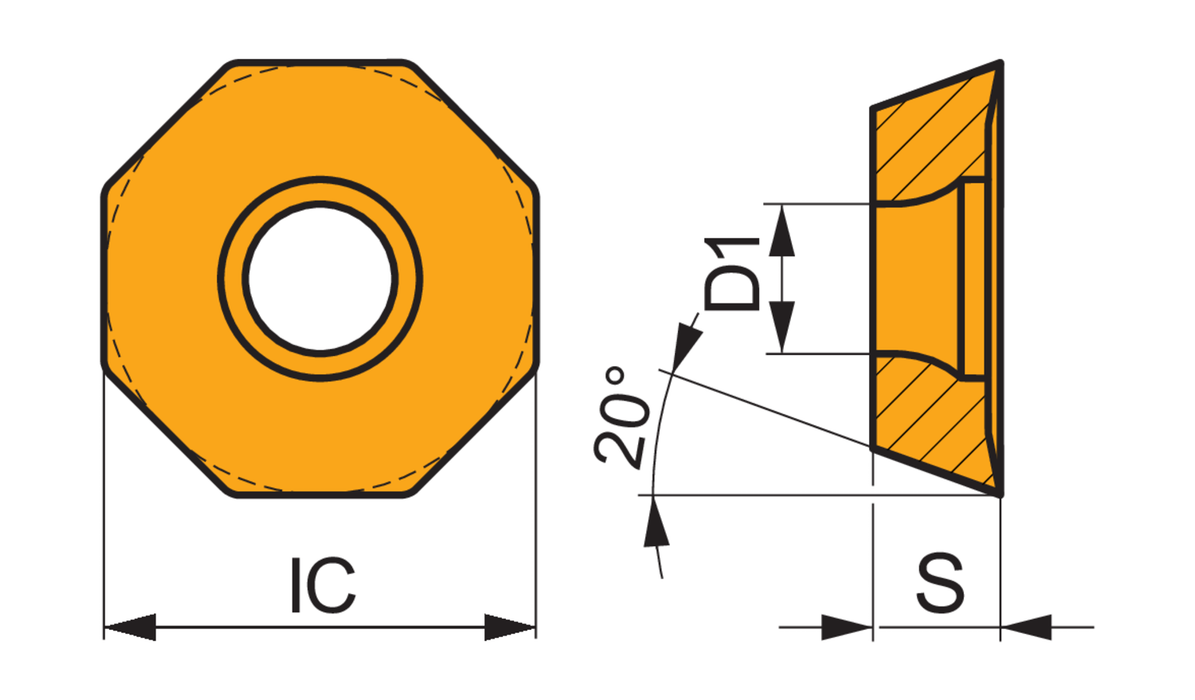

Max. Depth of Cut: 0.13

Insert Design: OEHT

Insert Shape Code: O - octagonal

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.632

Chip Breaker: M

Grade: M8330

EDP: 7447921

EAN: 3603603385900

MFG Part Number: 7447921
