PDMX 0905ZESR-R:M8330

PDMX 0905ZESR-R:M8330

SKU DOR7447927
by Dormer Pramet
Primary Use: Possible Use:

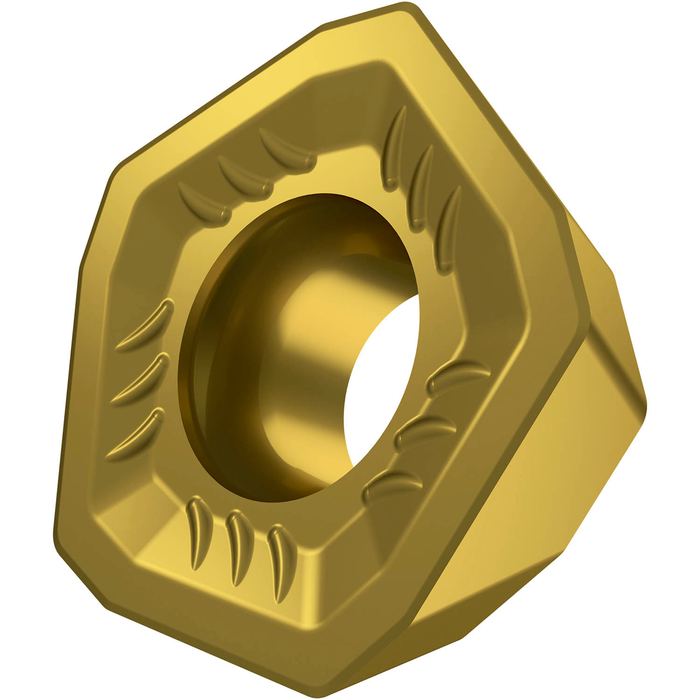

Single-sided milling insert PDMX 0905, pentagonal for a maximum depth of cut of .0787", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with high feed cutters SPD09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$22.76 - $22.76
$22.76
$22.76 - $22.76
$22.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

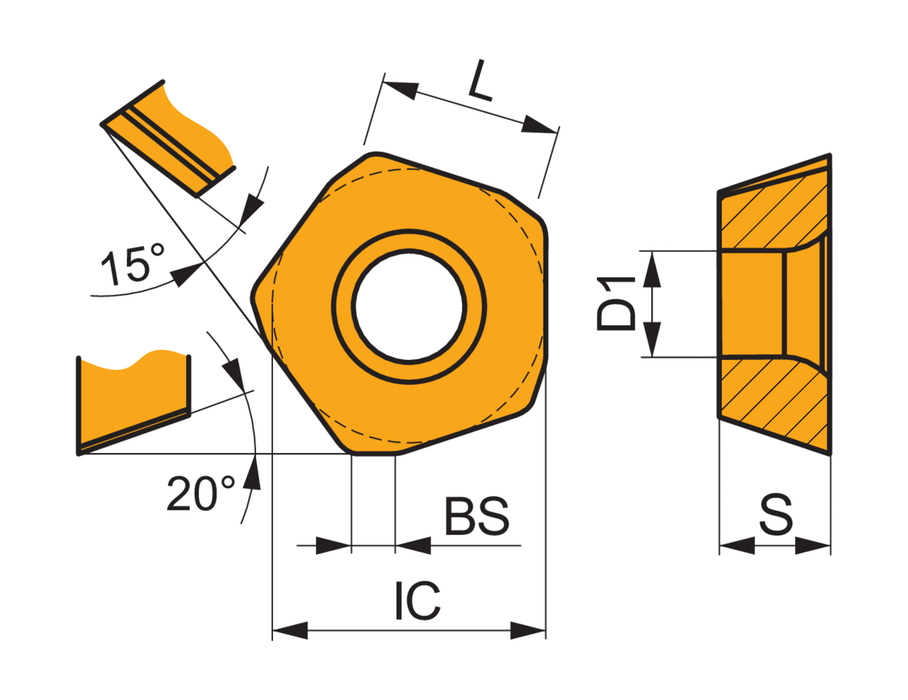

Max. Depth of Cut: 0.079

Insert Design: PDMX

Insert Shape Code: P - pentagonal

Insert Thickness: 0.215

Inscribed Circle Diameter: 0.531

Chip Breaker: R

Grade: M8330

EDP: 7447927

EAN: 3603603385962

MFG Part Number: 7447927
