RPEW 1204MOSN:M8330
SKU DOR7447966
Primary Use:
Possible Use:

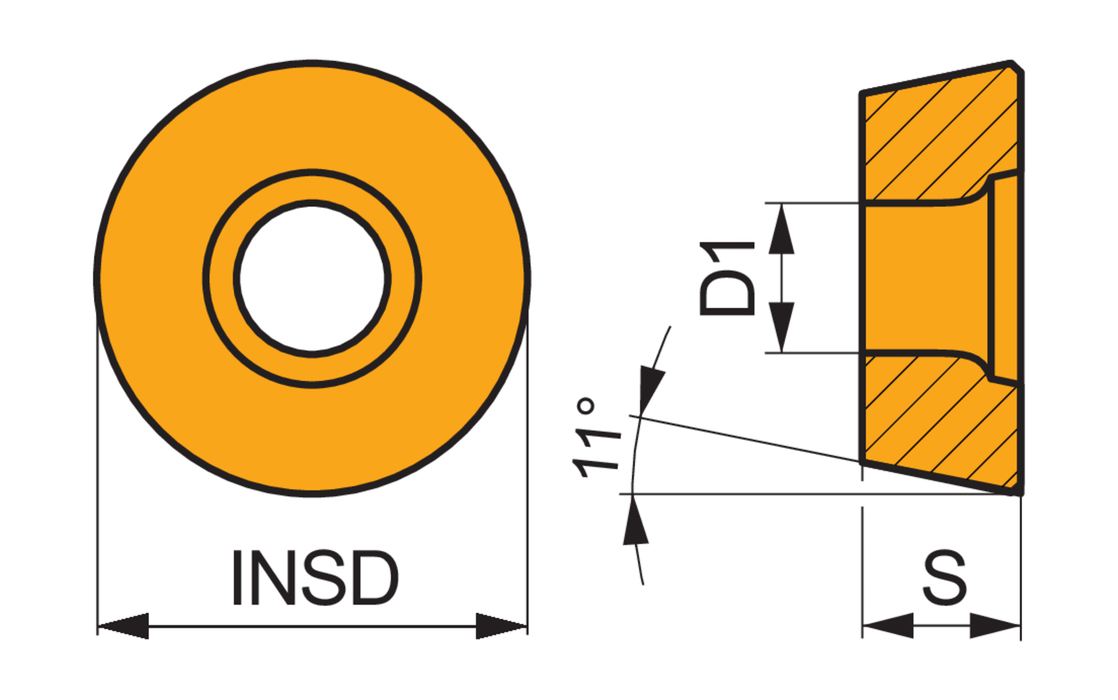

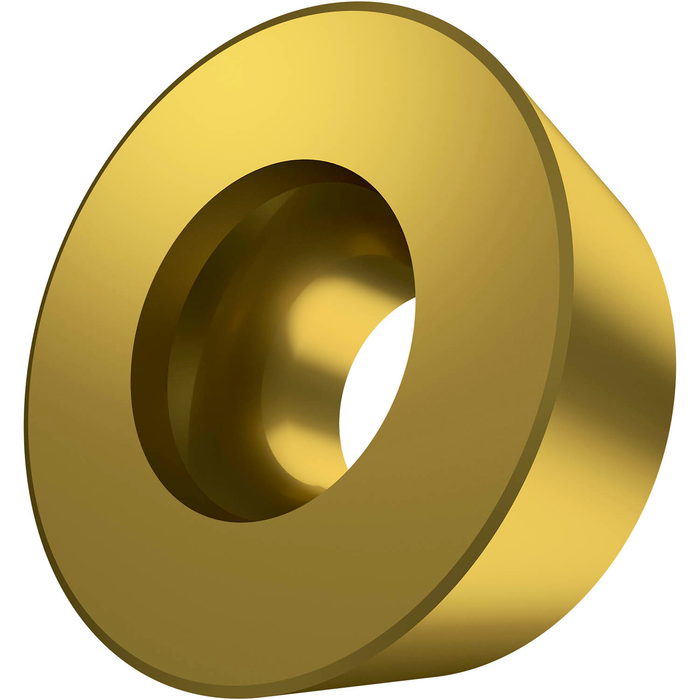

Single-sided milling insert RPEW 1204 with a plane rake surface, round for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$19.29
-
Original price
$19.29
Original price
$19.29
$19.29
-
$19.29
Current price
$19.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
Max. Depth of Cut: 0.118
Insert Design: RPEW
Insert Shape Code: R - round
Insert Thickness: 0.187
Chip Breaker: No chipbreaker
Grade: M8330
EDP: 7447966
EAN: 3603603386228
MFG Part Number: 7447966
