SDEW 322EN:M8330

SDEW 322EN:M8330

SKU DOR7447971
by Dormer Pramet
Primary Use: Possible Use:

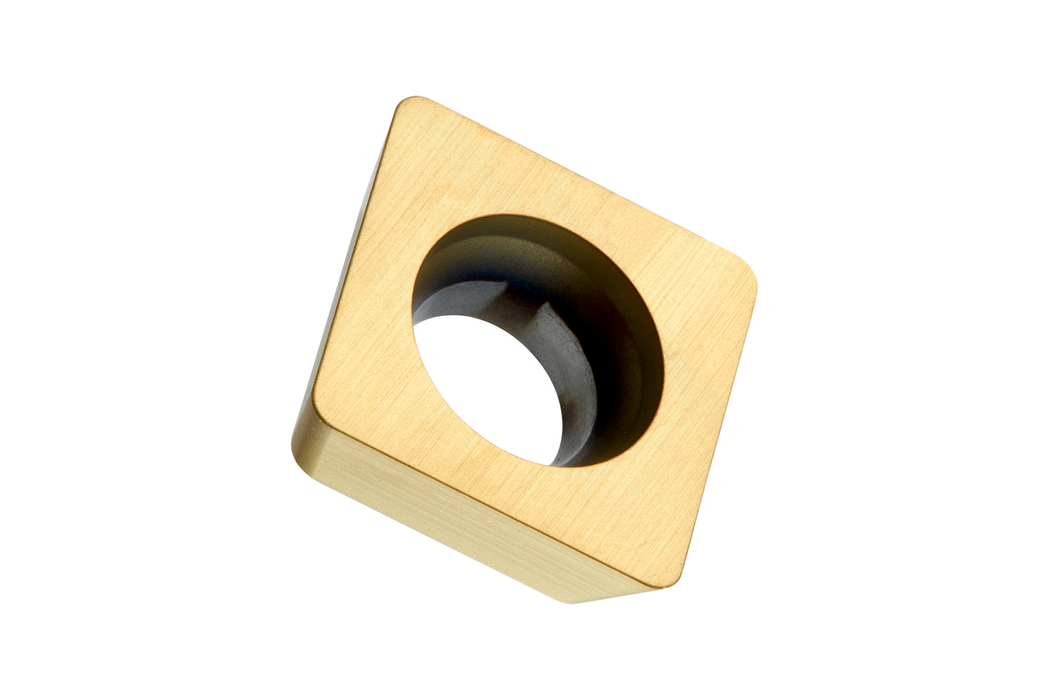

Single-sided milling insert SDEW 0903 with a plane rake surface, square for a maximum depth of cut of .1772", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with chamfer mills SSD09

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.10 - $17.10
$17.10
$17.10 - $17.10
$17.10
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

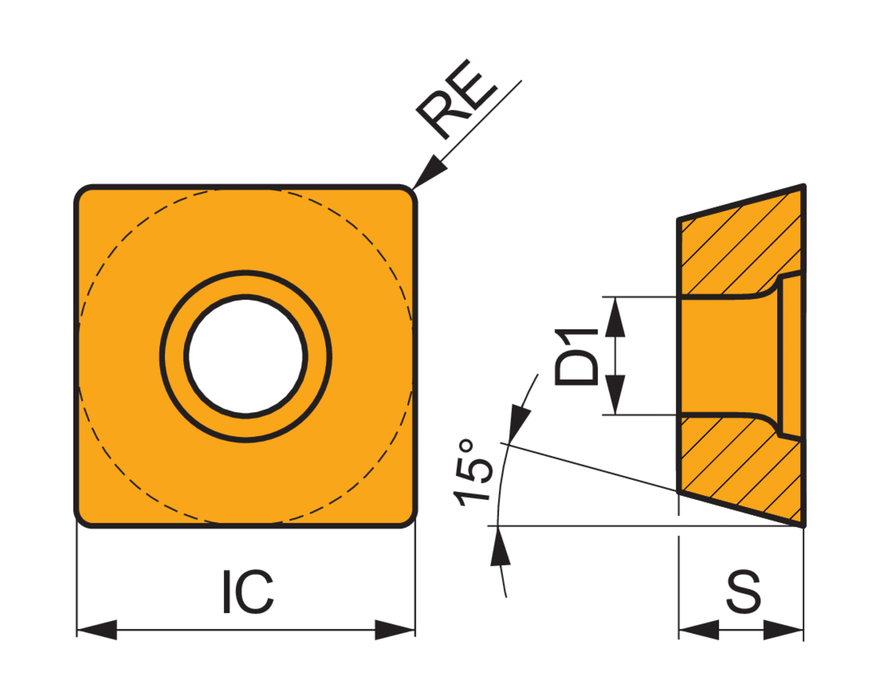

Max. Depth of Cut: 0.177

Insert Design: SDEW

Insert Shape Code: S - square

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7447971

EAN: 3603603386273

MFG Part Number: 7447971
