SDGX 120508EN-FM:M8330

SDGX 120508EN-FM:M8330

SKU DOR7447974
by Dormer Pramet
Primary Use: Possible Use:

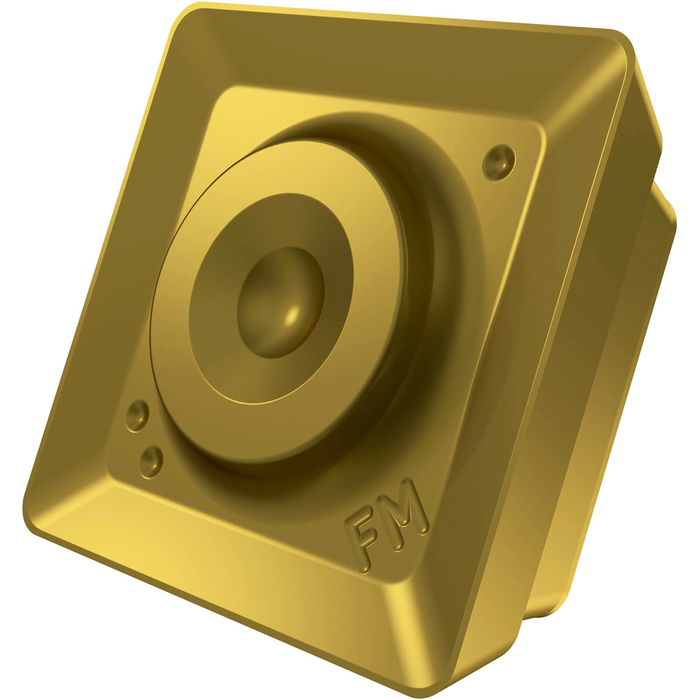

Single-sided milling insert SDGX 1205, square for a maximum depth of cut of .4724", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and FM geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with shoulder mills with extended flute J(T)-CSD12X

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$27.86 - $27.86
$27.86
$27.86 - $27.86
$27.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

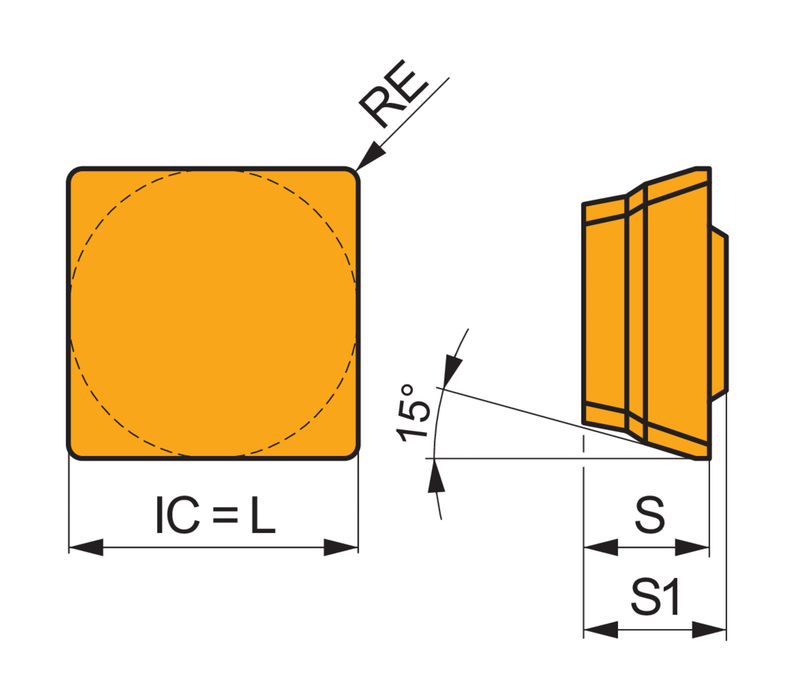

Max. Depth of Cut: 0.472

Insert Design: SDGX

Insert Shape Code: S - square

Insert Thickness: 0.219

Inscribed Circle Diameter: 0.5

Chip Breaker: FM

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7447974

EAN: 3603603386303

MFG Part Number: 7447974
