SNKT 1205AZSR-M:M8330

SNKT 1205AZSR-M:M8330

SKU DOR7451023
by Dormer Pramet
Primary Use: Possible Use:

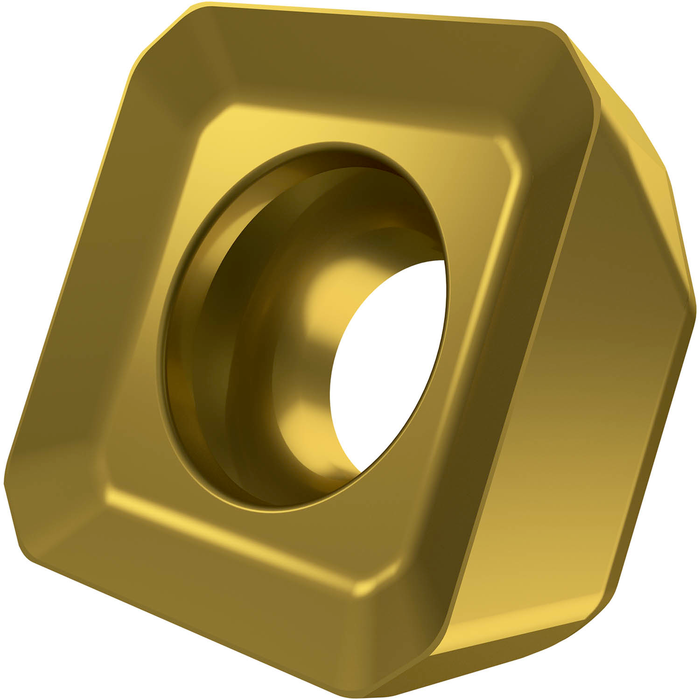

Single-sided milling insert SNKT 1205 with chip-breakers, square for a maximum depth of cut of .126", with " corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with face mills SSN12Z

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$28.63 - $28.63
$28.63
$28.63 - $28.63
$28.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.126

Insert Design: SNKT

Insert Shape Code: S - square

Insert Thickness: 0.219

Inscribed Circle Diameter: 0.5

Chip Breaker: M

Grade: M8330

EDP: 7451023

EAN: 3603603389328

MFG Part Number: 7451023
