SPU 632:M8330

SPU 632:M8330

SKU DOR7451055
by Dormer Pramet
Primary Use: Possible Use:

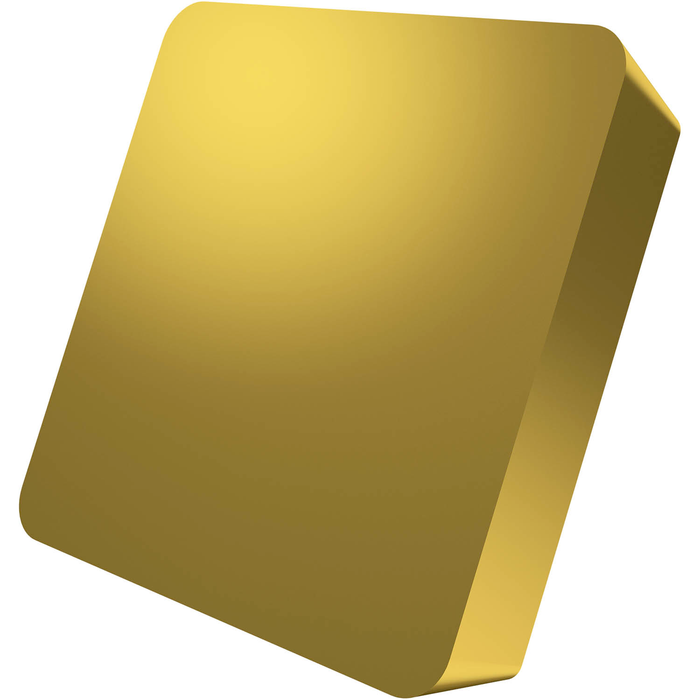

Single-sided milling insert SPUN 1904 with a plane rake surface, square for a maximum depth of cut of .6299", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$27.29 - $27.29
$27.29
$27.29 - $27.29
$27.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

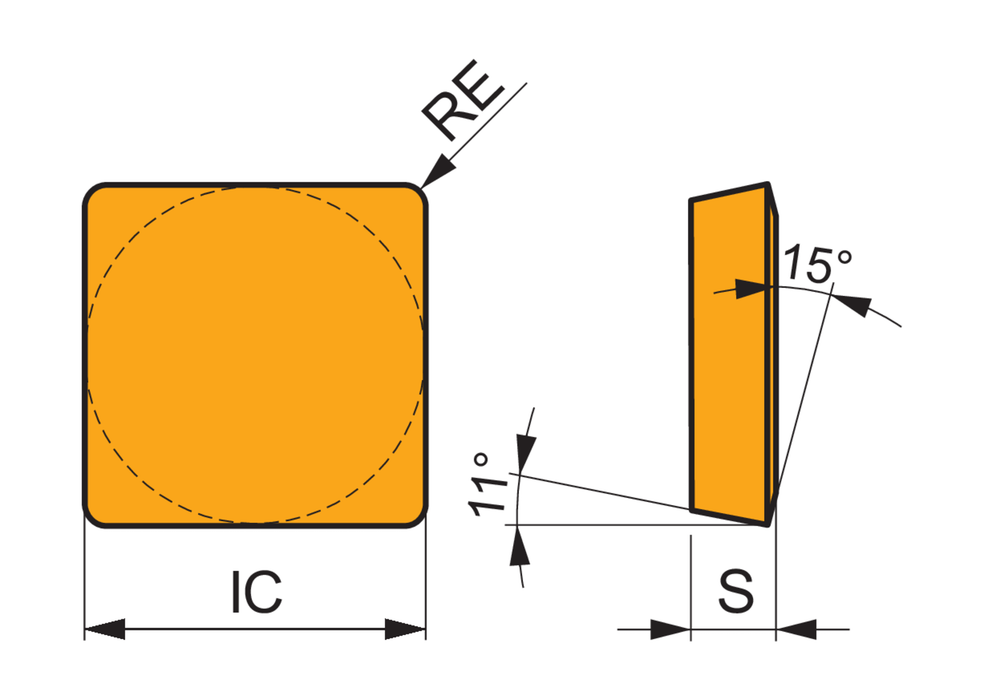

Max. Depth of Cut: 0.63

Insert Design: SPUN

Insert Shape Code: S - square

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.75

Chip Breaker: No chipbreaker

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7451055

EAN: 3603603389649

MFG Part Number: 7451055
