TPCN 32PDSN:M8330

TPCN 32PDSN:M8330

SKU DOR7451104
by Dormer Pramet
Primary Use:

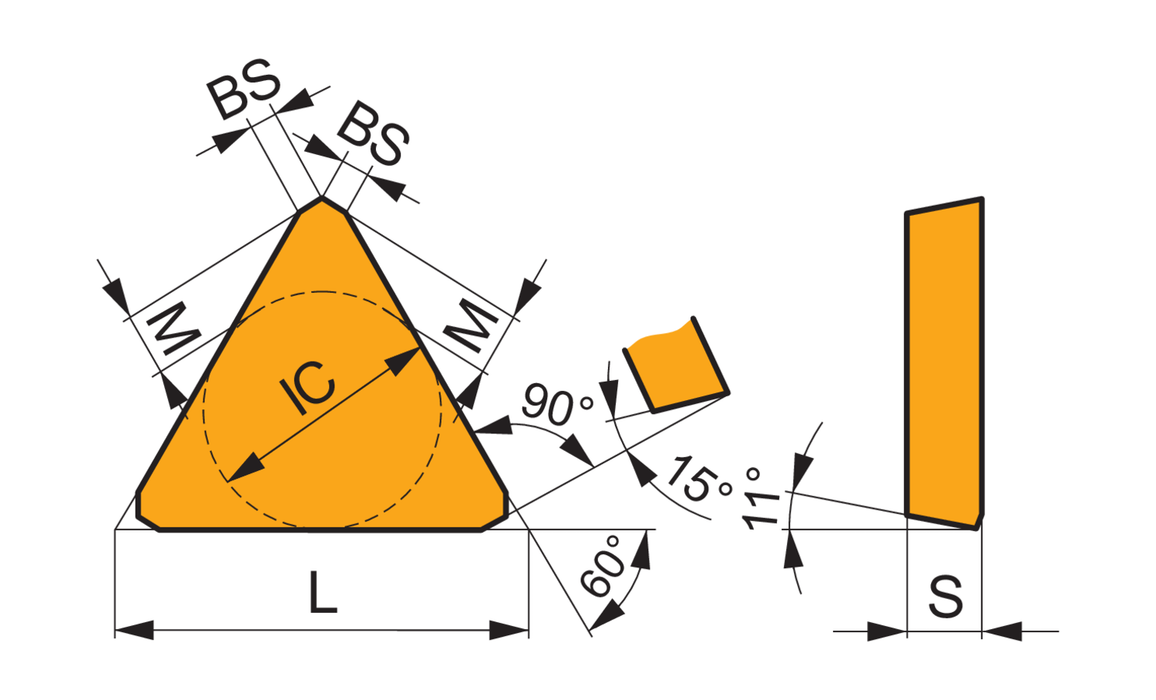

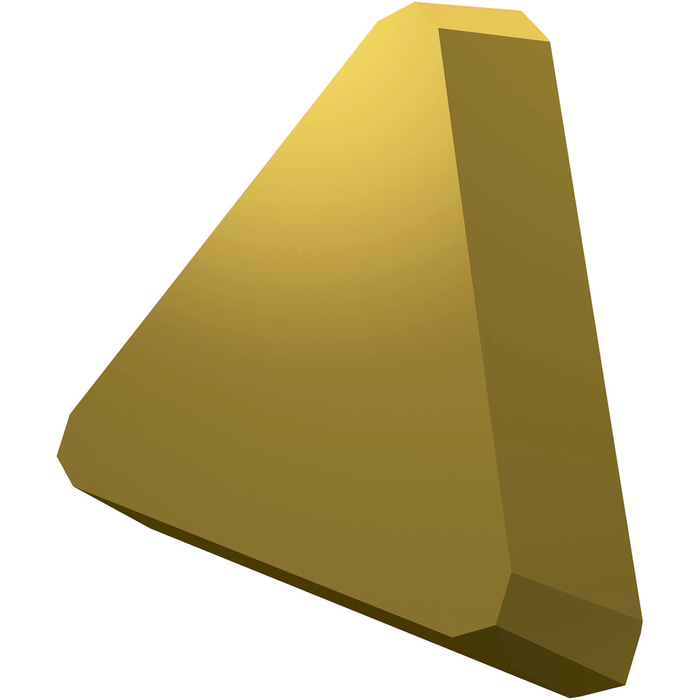

Single-sided milling insert TPCN 1603 with a plane rake surface, triangular for a maximum depth of cut of .4724", with " corner radius, an indexing accuracy according to ISO-tolerance class-C with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.90 - $16.90
$16.90
$16.90 - $16.90
$16.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: TPCN

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.125

Inscribed Circle Diameter: 0.375

Chip Breaker: No chipbreaker

Grade: M8330

EDP: 7451104

EAN: 3603603389724

MFG Part Number: 7451104
