TPKR 43PDSR:M8330

TPKR 43PDSR:M8330

SKU DOR7451110
by Dormer Pramet
Primary Use: Possible Use:

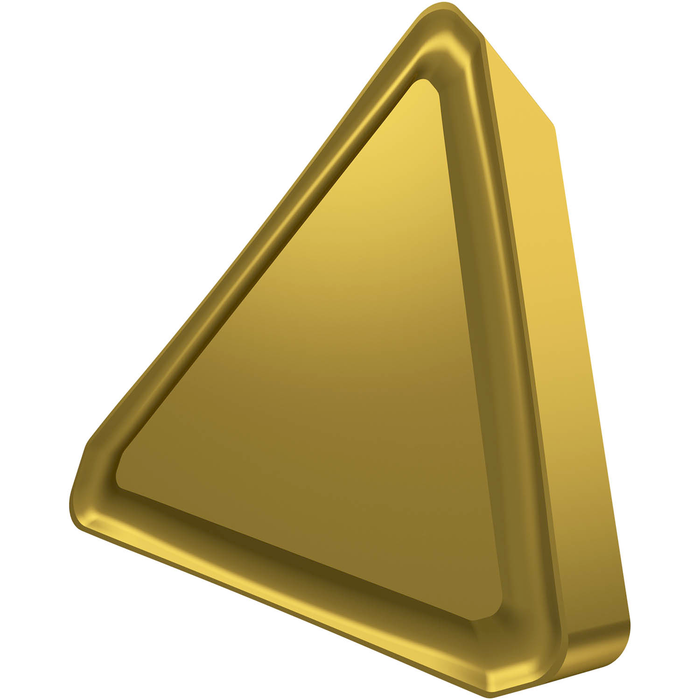

Single-sided milling insert TPKR 2204 with chip-breakers, triangular for a maximum depth of cut of .6693", with " corner radius, an indexing accuracy according to ISO-tolerance class-K with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$20.11 - $20.11
$20.11
$20.11 - $20.11
$20.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

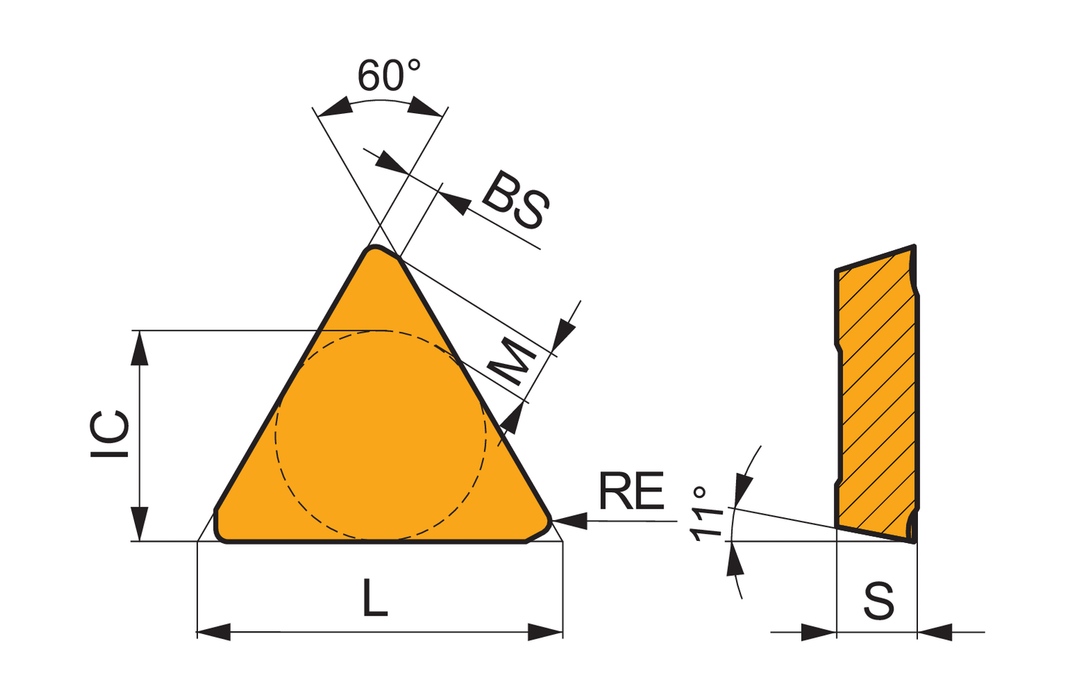

Max. Depth of Cut: 0.669

Insert Design: TPKR

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: With chipbreaker -no designation

Grade: M8330

EDP: 7451110

EAN: 3603603389786

MFG Part Number: 7451110
