TPU 432:M8330

TPU 432:M8330

SKU DOR7451116
by Dormer Pramet
Possible Use:

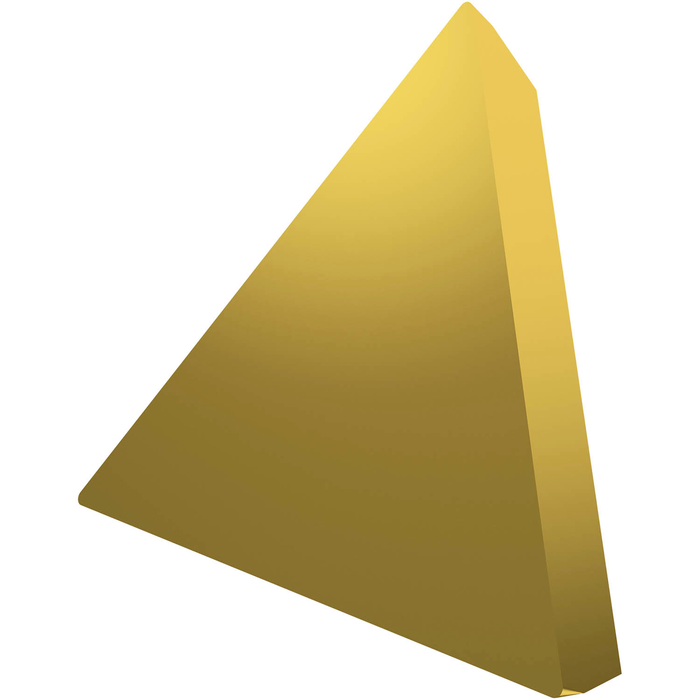

Single-sided milling insert TPUN 2204 with a plane rake surface, triangular for a maximum depth of cut of .6693", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$16.43 - $16.43
$16.43
$16.43 - $16.43
$16.43
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

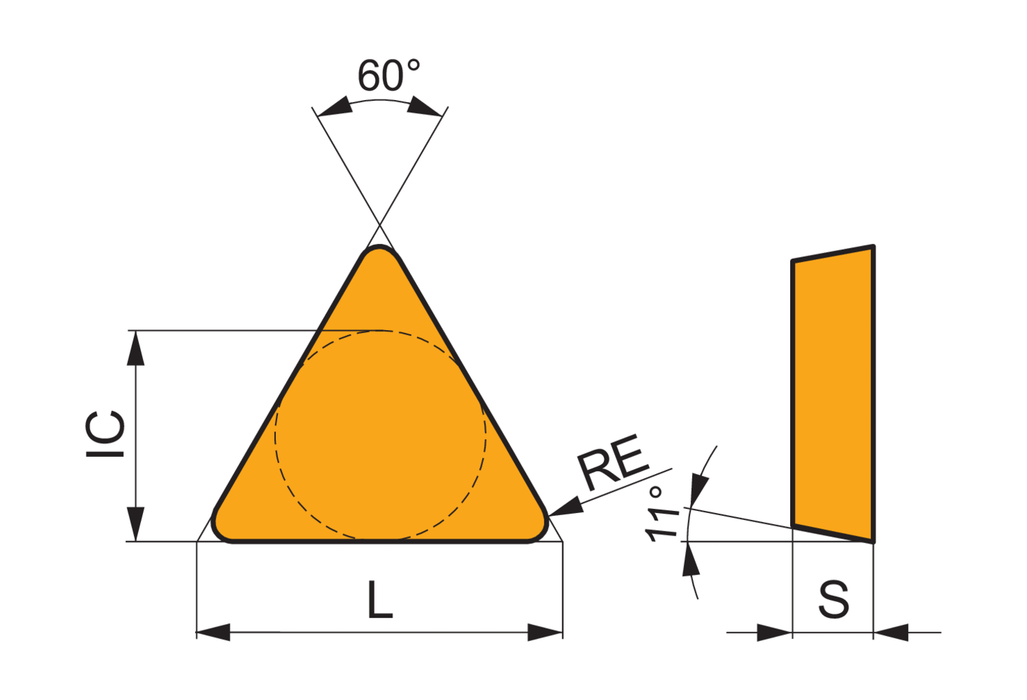

Max. Depth of Cut: 0.669

Insert Design: TPUN

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.5

Chip Breaker: No chipbreaker

Grade: M8330

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7451116

EAN: 3603603389847

MFG Part Number: 7451116
