TNMG 331-NMR:T6310

TNMG 331-NMR:T6310

SKU DOR7454470
by Dormer Pramet
Primary Use:

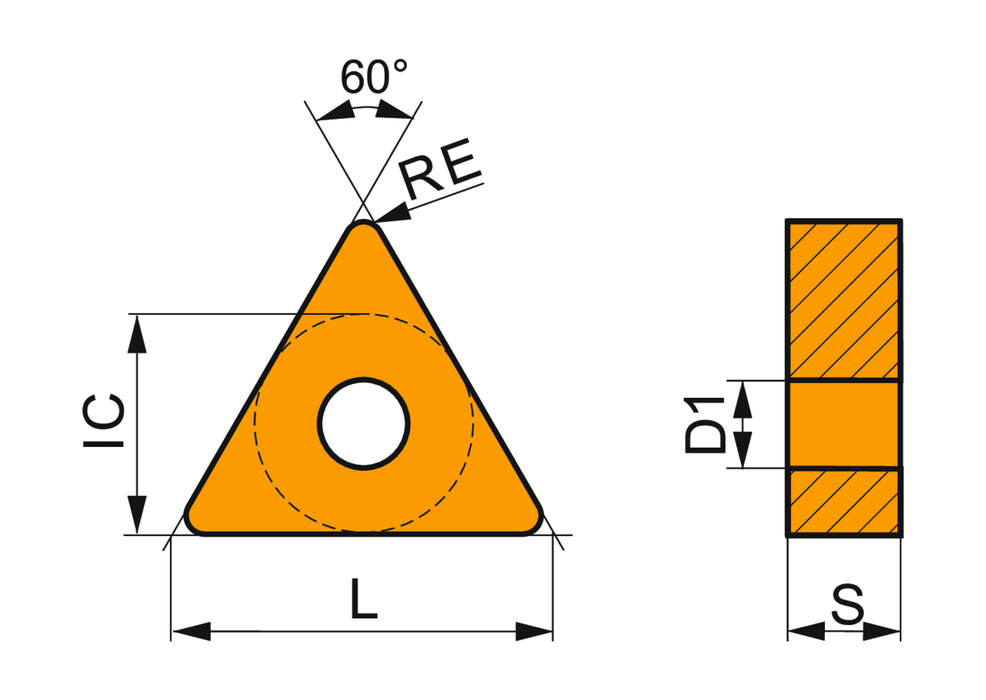

Double-sided negative turning insert, triangular with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NMR, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 - P15/M01 - M15 and S01 - S15, for fine to heavy machining of steels, stainless-steels and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$10.25 - $10.25
$10.25
$10.25 - $10.25
$10.25
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Max. Depth of Cut: 0.157

Insert Design: TNMG

Insert Shape Code: T - triangular 60° included angle

Insert Shape Code: gid://shopify/Metaobject/145756717118

Insert Thickness: 0.187

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

High Temp Alloys: Primary use

Inscribed Circle Diameter: 0.375

Chip Breaker: NMR

Grade: T6310

Corner Radius - in: 0.016

Corner Radius - mm: 0.4

EDP: 7454470

EAN: 3603603392113

MFG Part Number: 7454470
