TCGT 32.53-SF3:T6310

TCGT 32.53-SF3:T6310

SKU DOR7600317
by Dormer Pramet
Primary Use: Possible Use:

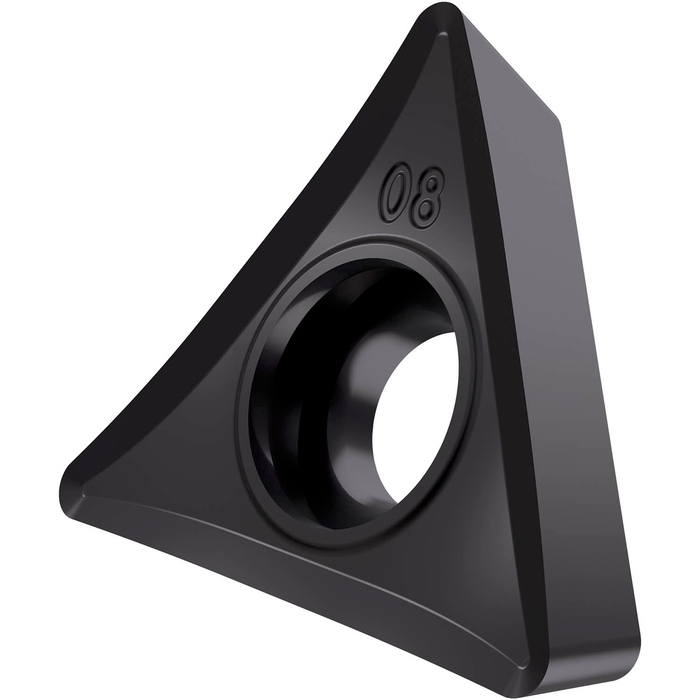

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01-M15 and S01-S15, for fine to medium machining of stainless-steels and super-alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$21.11 - $21.11
$21.11
$21.11 - $21.11
$21.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

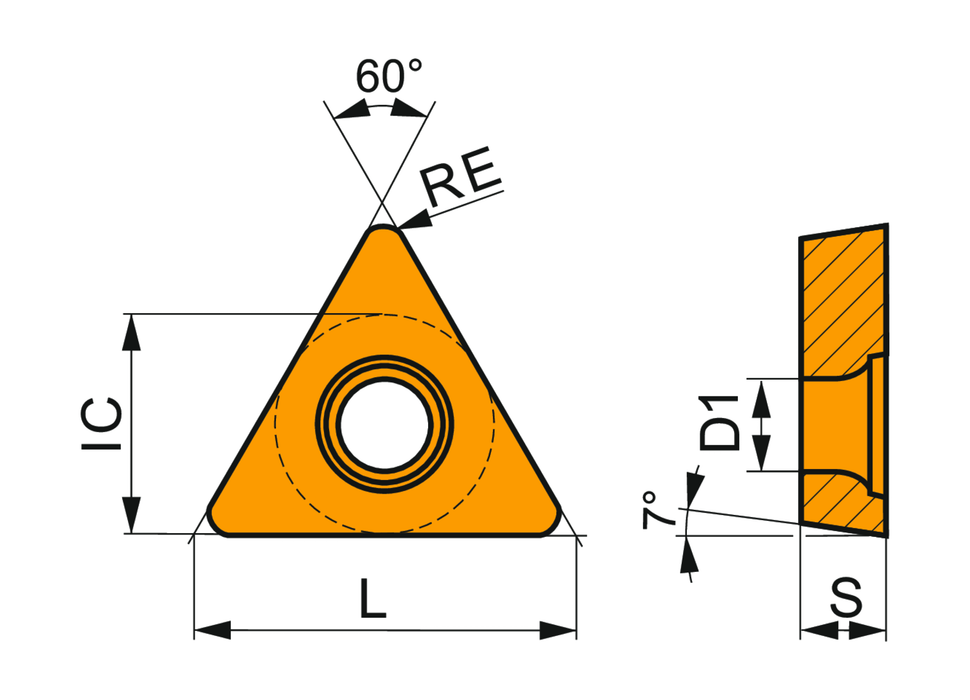

Max. Depth of Cut: 0.138

Insert Design: TCGT

Insert Shape Code: T - triangular 60° included angle

Insert Thickness: 0.166

Inscribed Circle Diameter: 0.375

Chip Breaker: SF3

Grade: T6310

Corner Radius - in: 0.047

Corner Radius - mm: 1.2

EDP: 7600317

EAN: 3603603519077

MFG Part Number: 7600317
