HNGX 0604ANSN-F:M6330

HNGX 0604ANSN-F:M6330

SKU DOR7601336
by Dormer Pramet
Primary Use: Possible Use:

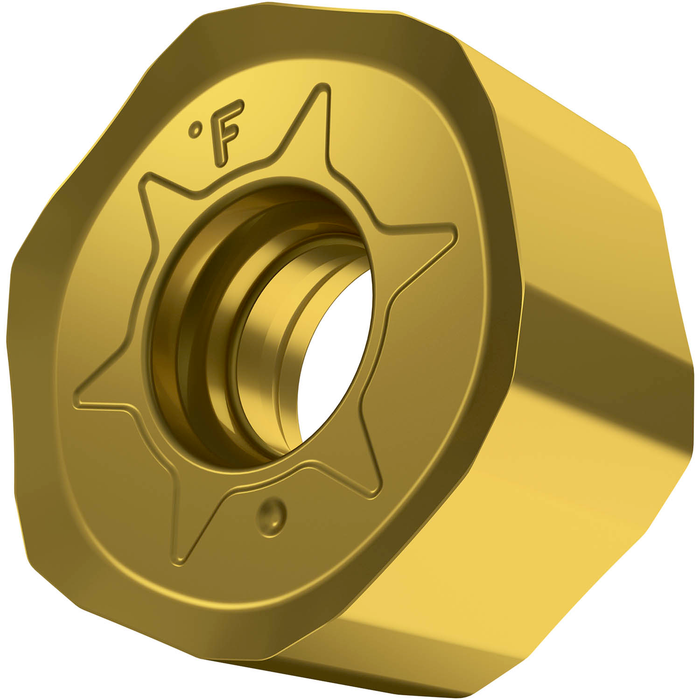

Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with face mills SHN06C

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$27.77 - $27.77
$27.77
$27.77 - $27.77
$27.77
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

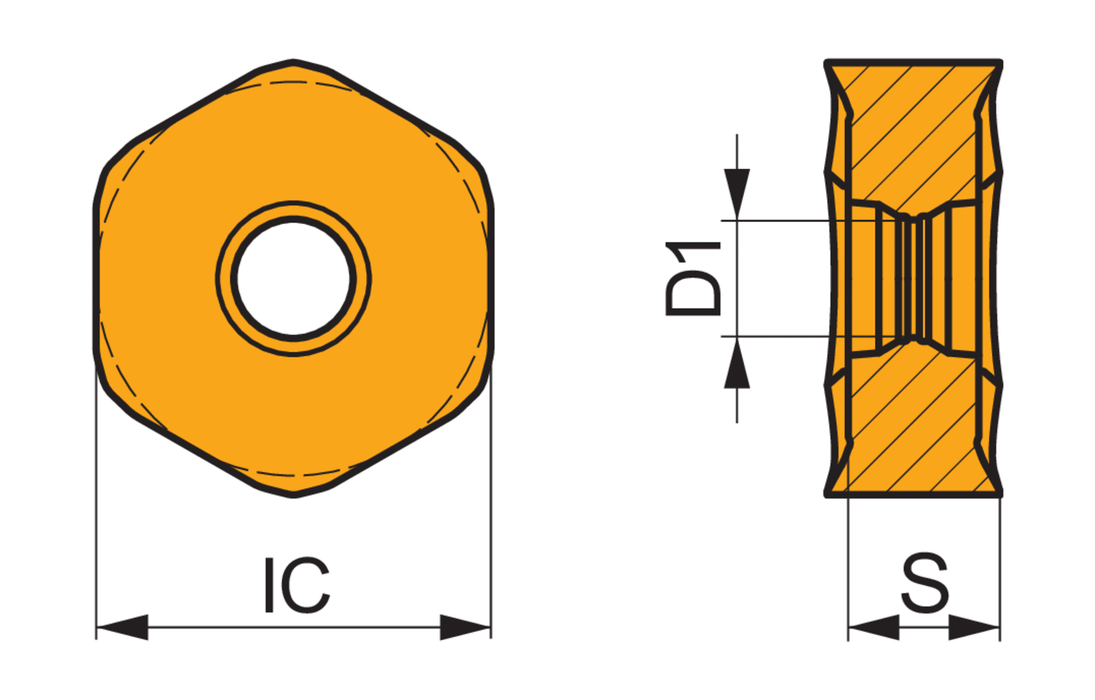

Max. Depth of Cut: 0.118

Insert Design: HNGX

Insert Shape Code: H - hexagonal

Insert Thickness: 0.187

Inscribed Circle Diameter: 0.413

Chip Breaker: F

Grade: M6330

EDP: 7601336

EAN: 3603603520158

MFG Part Number: 7601336
