R4635.2

R4635.2

SKU DOR7624985
by Dormer Pramet
Primary Use:

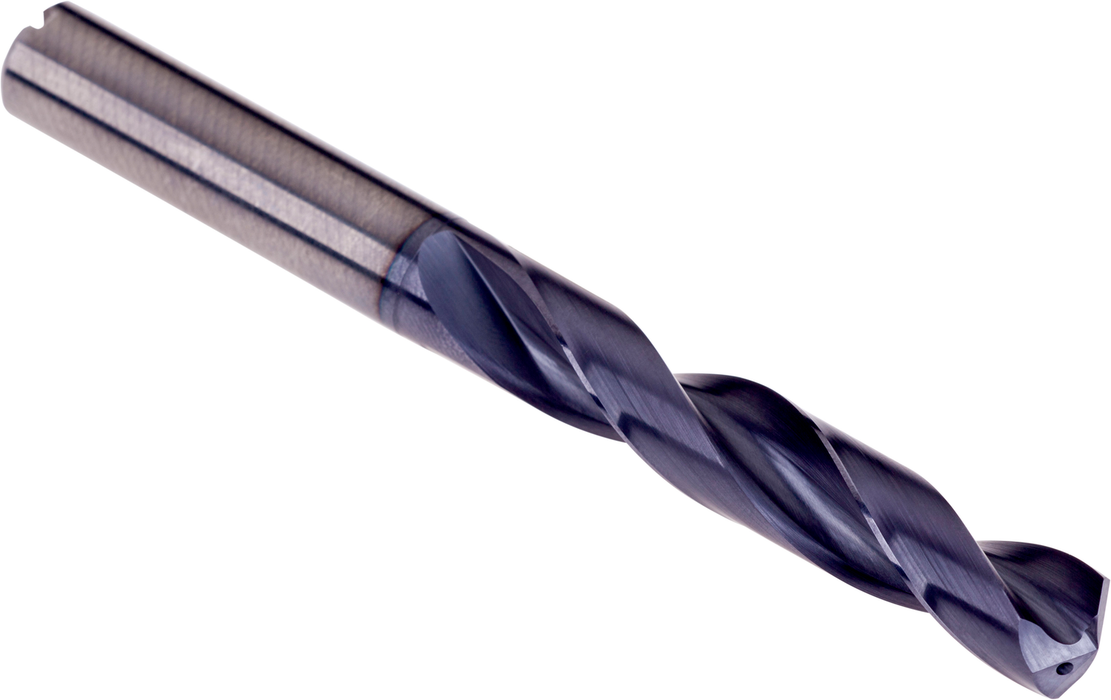

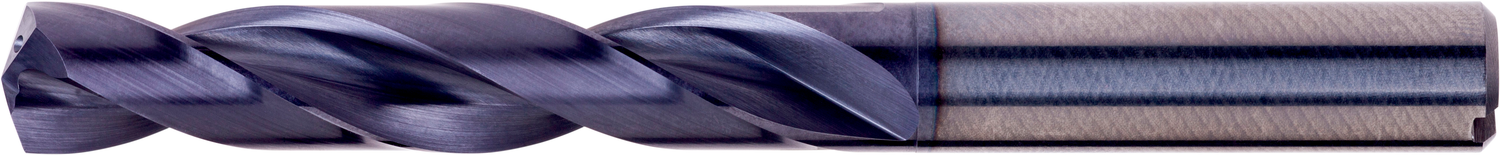

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 5.2mm with an overall length of 82mm and flute length of 44mm according to DIN 6537 L standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 5xD drilling without pecking in stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$166.57 - $166.57
$166.57
$166.57 - $166.57
$166.57
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

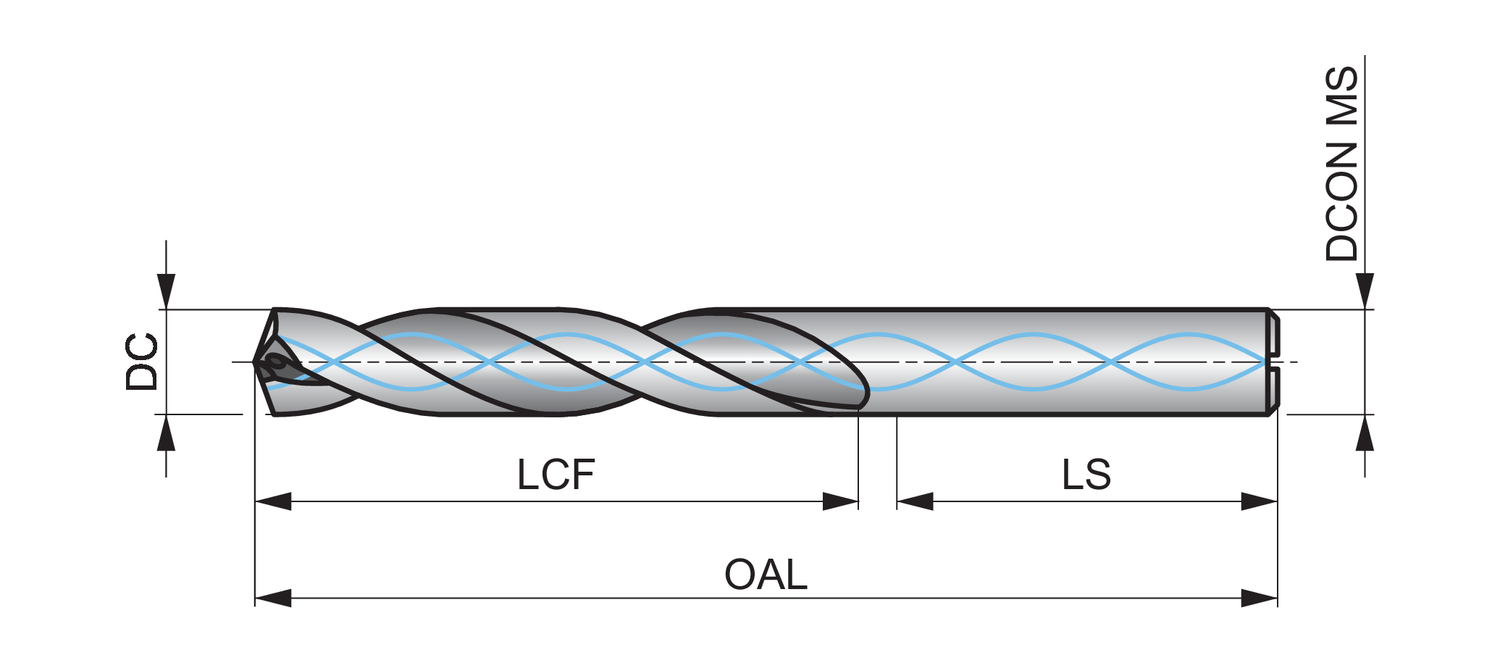

Material: HM

Cutting Diameter - in (DC): 0.2047

Cutting Diameter - mm (DC): 5.2

Drill Point Angle - deg: 140

Flute Length: 1.7323

Through Coolant: 1

Lenxth x Diameter Ratio: 5

Overall Length (OAL): 3.2283

Connetion Diameter: 0.2362

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 7624985

EAN: 7320760834923

MFG Part Number: 7624985
