R4674.1

R4674.1

SKU DOR7625116
by Dormer Pramet
Primary Use:

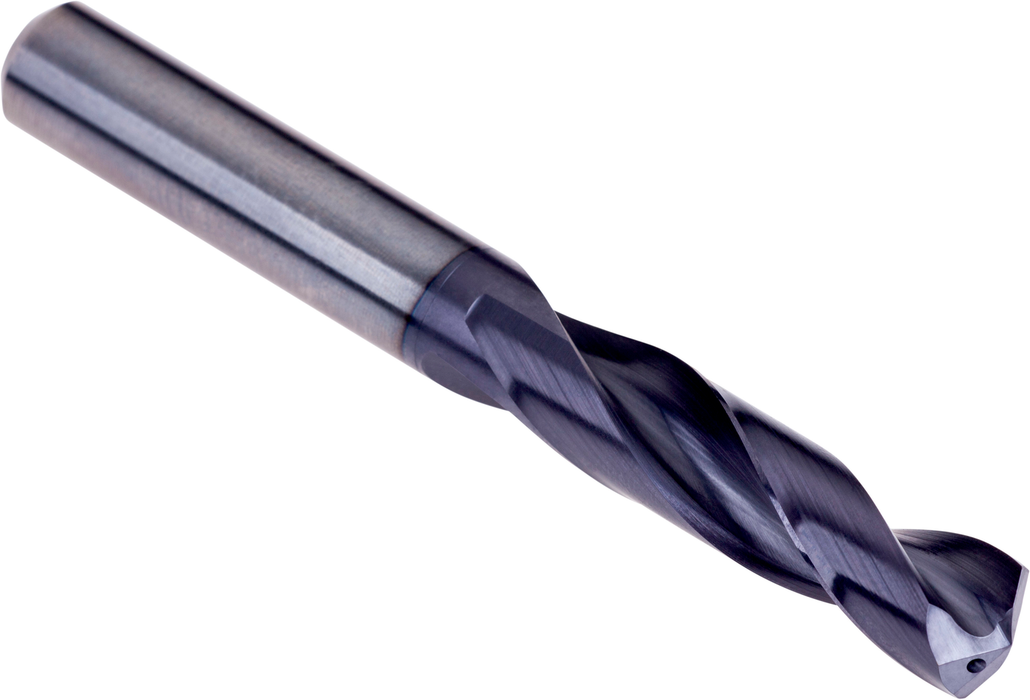

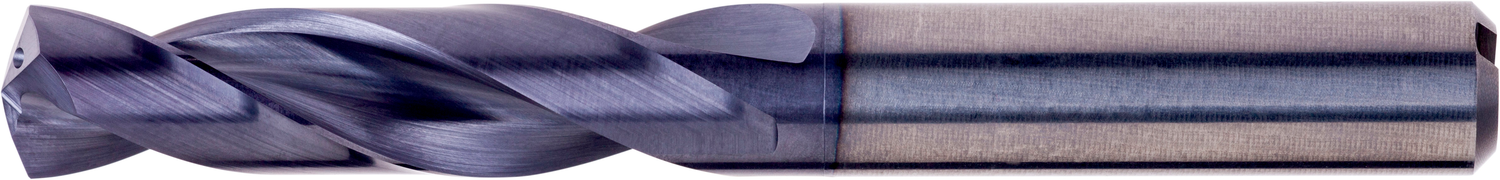

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 4.1mm with an overall length of 66mm and flute length of 24mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$139.07 - $139.07
$139.07
$139.07 - $139.07
$139.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

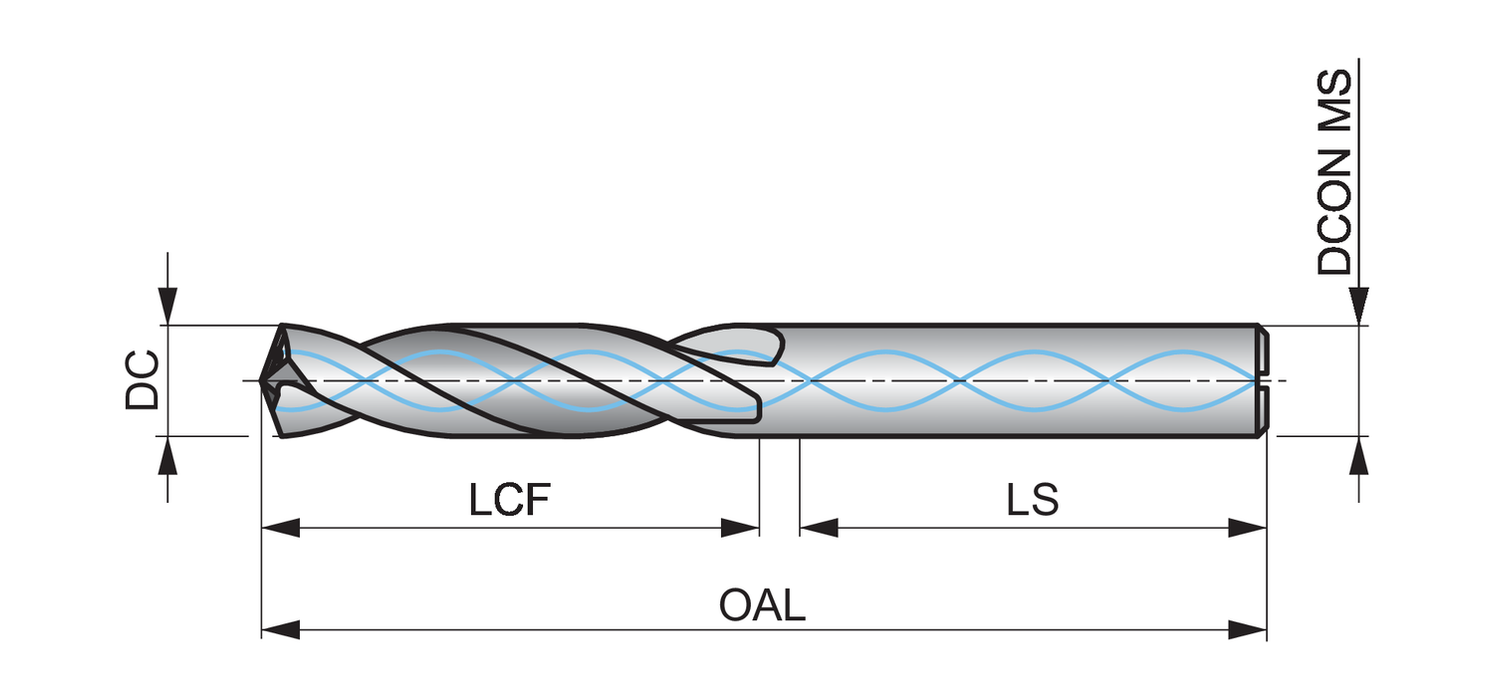

Material: HM

Cutting Diameter - in (DC): 0.1614

Cutting Diameter - mm (DC): 4.1

Drill Point Angle - deg: 140

Flute Length: 0.9449

Through Coolant: 1

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 2.5984

Connetion Diameter: 0.2362

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Grade: TiAlN

EDP: 7625116

EAN: 7320760836231

MFG Part Number: 7625116
