R4671/4

R4671/4

SKU DOR7625148
by Dormer Pramet
Primary Use:

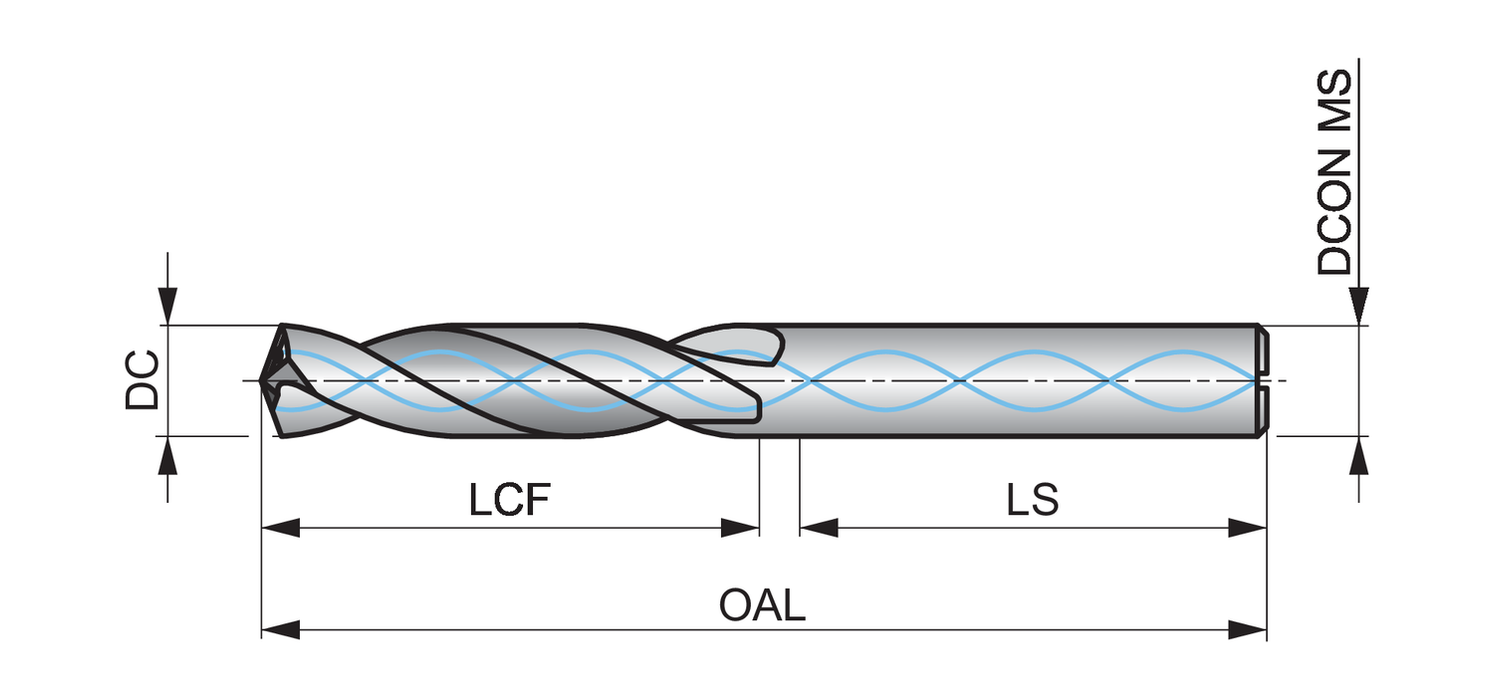

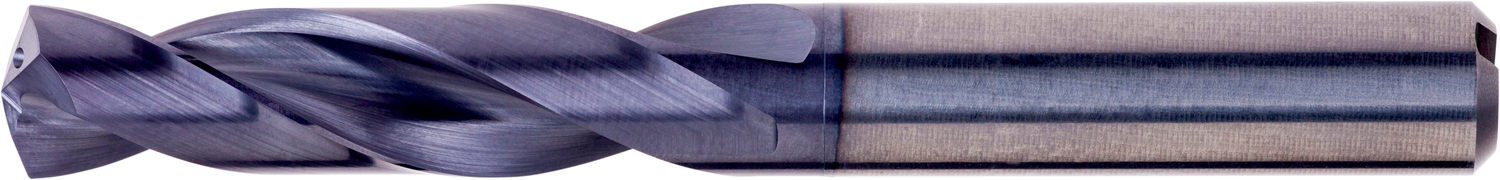

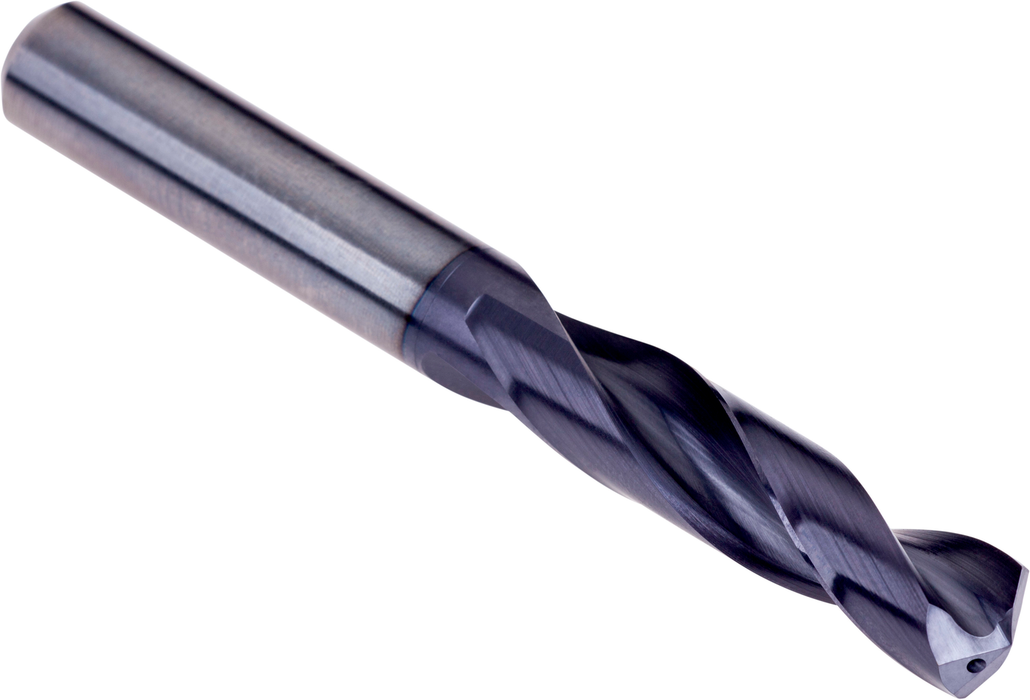

High-performance FORCE M drill with DIN 6535HA NC parallel shank, diameter 0.2500" (1/4) with an overall length of 79mm and flute length of 34mm according to DIN 6537 K standard with 140° S-shape 4-facet split point, solid carbide with TiAlN coating, continiously thinned parallel web and through coolant holes for 3xD drilling without pecking in stainless steel and super-alloy

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$164.21 - $164.21
$164.21
$164.21 - $164.21
$164.21
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Cutting Diameter - in (DC): 0.25

Cutting Diameter - mm (DC): 6.35

Drill Point Angle - deg: 140

Flute Length: 1.3386

Through Coolant: 1

Lenxth x Diameter Ratio: 3

Overall Length (OAL): 3.1102

Connetion Diameter: 0.315

Tool Direction: Right

Shank: Cylindrical shank DIN 6535 HA

Fractional: 1/4

Grade: TiAlN

EDP: 7625148

EAN: 7320760836552

MFG Part Number: 7625148
