LC 1008-KPF:M4310

LC 1008-KPF:M4310

SKU DOR7637588
by Dormer Pramet
Primary Use: Possible Use:

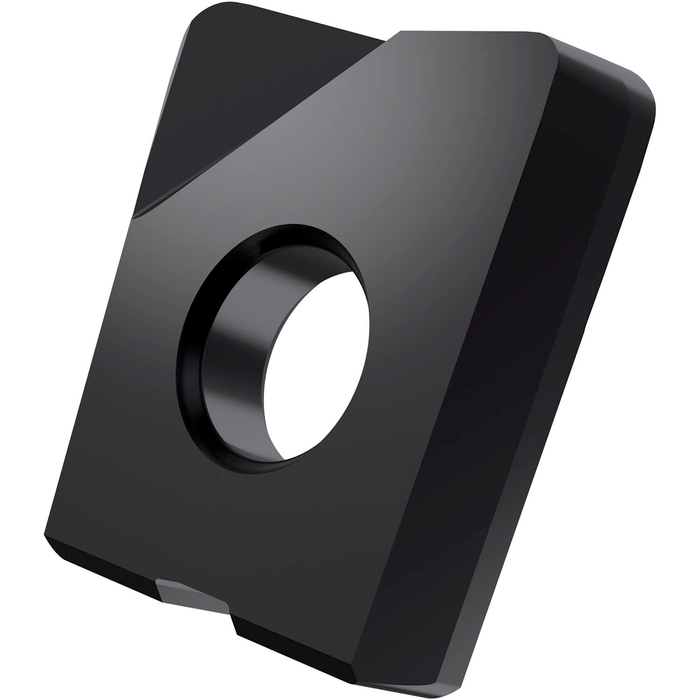

Toroidal copy milling insert with a diameter of .3937" and .0315" corner radii for a maximum depth of cut of .0315", KPF geometry and M4310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K05-K15 and H05-H15 for machining of cast-iron and hardened material with copy end mills K2-SRC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$55.11 - $55.11
$55.11
$55.11 - $55.11
$55.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

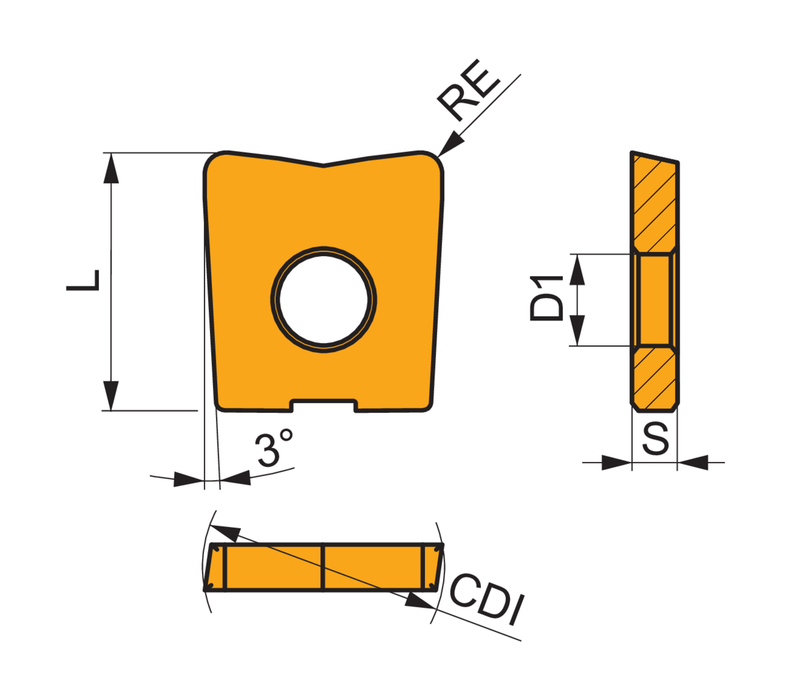

Max. Depth of Cut: 0.031

Insert Design: LC

Insert Shape Code: L - rectangular

Insert Thickness: 0.098

Chip Breaker: KPF

Grade: M4310

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7637588

EAN: 3603603538207

MFG Part Number: 7637588
