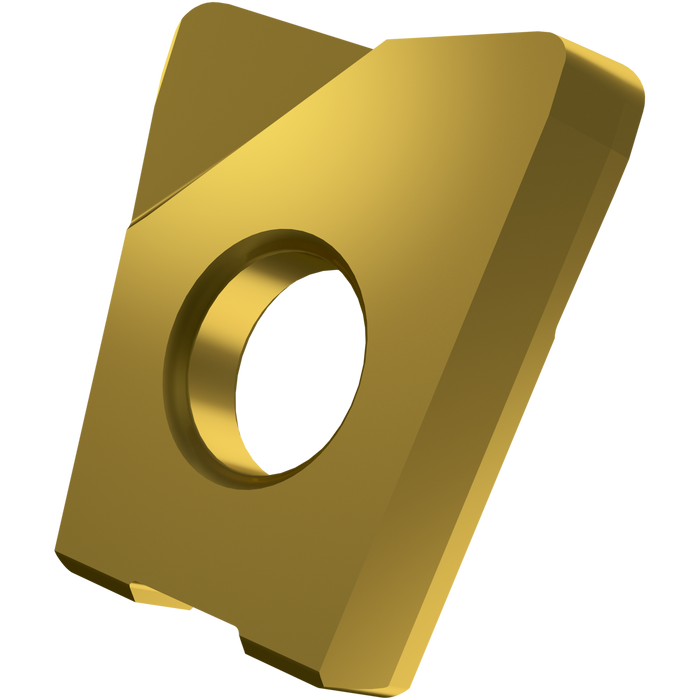

LC 1210-KPF:M8330
SKU DOR7637604
Primary Use:
Possible Use:
Toroidal copy milling insert with a diameter of .4724" and .0394" corner radii for a maximum depth of cut of .0394", KPF geometry and M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-SLC
Inventory
Sold in packs of: 10
For more information about this product,
click here
Original price
$58.37
-
Original price
$58.37
Original price
$58.37
$58.37
-
$58.37
Current price
$58.37
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

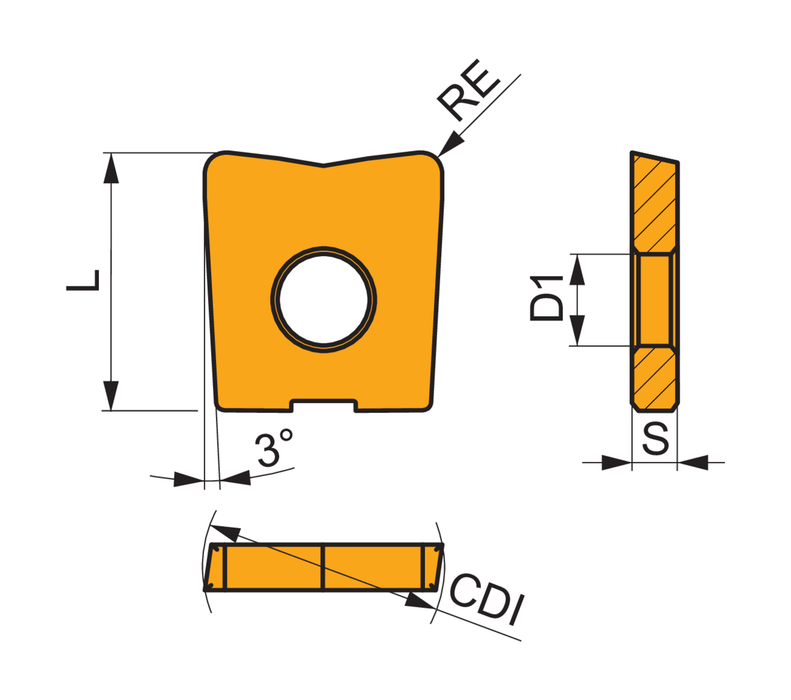

Max. Depth of Cut: 0.039
Insert Design: LC
Insert Shape Code: L - rectangular
Insert Thickness: 0.098
Chip Breaker: KPF
Grade: M8330
Corner Radius - in: 0.039
Corner Radius - mm: 1
EDP: 7637604
EAN: 3603603538269
MFG Part Number: 7637604
