RC 25:M8330
RC 25:M8330

RC 25:M8330

SKU DOR7637799
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.57 CAD - $86.57 CAD
$86.57 CAD
$86.57 CAD - $86.57 CAD
$86.57 CAD

Sold in packs of: 10

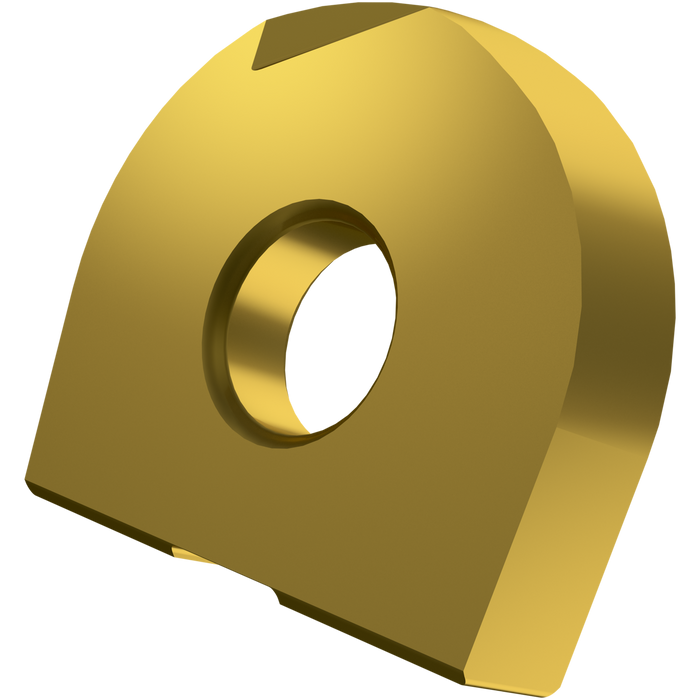

Ball nosed copy milling insert with a diameter of .9843" for a maximum depth of cut of .0984", M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy end mills K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RC 25:M8330
GradeM8330
Chipbreaker (CBMD)No chipbreaker
Product Number7637799
Product FamilyRC
Insert Geometry
Insert DesignRC
Insert Shape Code (SC)R - round
Insert Thickness — in (S)0.157"
Insert Thickness — mm (S)4.0 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7637799
EAN3603603538627
File Type Download
RC 25:M8330 — Line Drawing PDF Download
