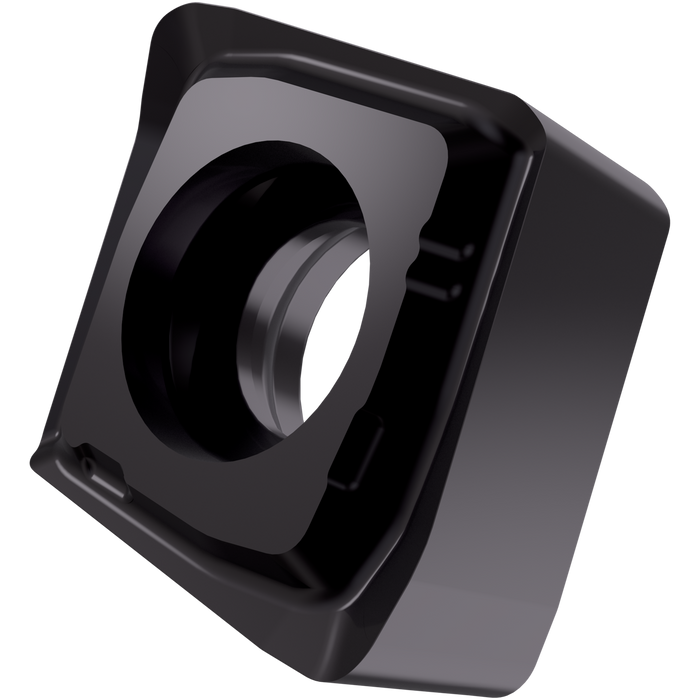

CNHX 050205ER-WM:M8330

CNHX 050205ER-WM:M8330

SKU DOR7639196
by Dormer Pramet
Primary Use: Possible Use:

Double-sided milling insert CNHX 0502, 80° rhomboid and wiper design for a maximum depth of cut of .0394", with .0197" corner radius, an indexing accuracy according to ISO-tolerance class-H and WM geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SCN05C

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$24.47 - $24.47
$24.47
$24.47 - $24.47
$24.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

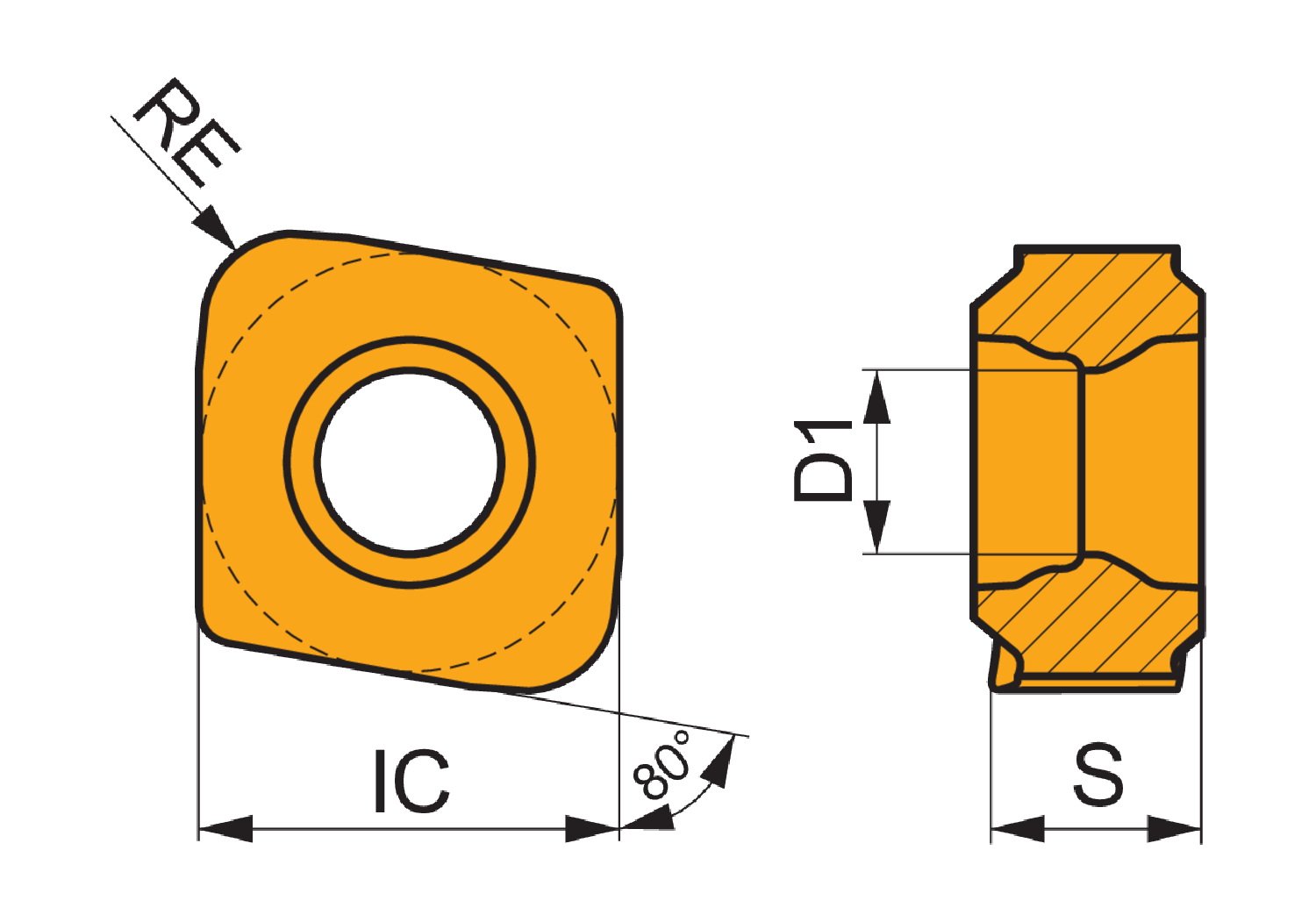

Max. Depth of Cut: 0.039

Insert Design: CNHX

Insert Shape Code: C - rhombic 80° included angle

Insert Thickness: 0.094

Inscribed Circle Diameter: 0.189

Chip Breaker: WM

Grade: M8330

Corner Radius - in: 0.02

Corner Radius - mm: 0.5

EDP: 7639196

EAN: 3603603537354

MFG Part Number: 7639196
