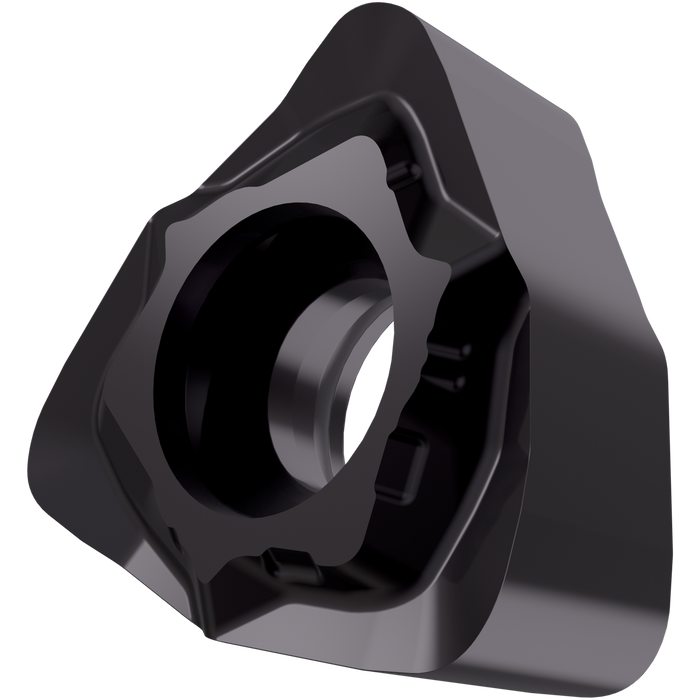

WNHX 040305ER-WM:M4310

WNHX 040305ER-WM:M4310

SKU DOR7639270
by Dormer Pramet
Primary Use: Possible Use:

Double-sided milling insert WNHX 0403, 80° trigon and wiper design for a maximum depth of cut of .0787", with .0197" corner radius, an indexing accuracy according to ISO-tolerance class-H and WM geometry with rounded cutting edges, M4310 PVD coated fine grained WC-Co carbide within ISO-grade ranges K05-K15 and H05-H15 for machining of cast-iron and hardened material with copy face mills SWN04C

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$28.80 - $28.80
$28.80
$28.80 - $28.80
$28.80
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

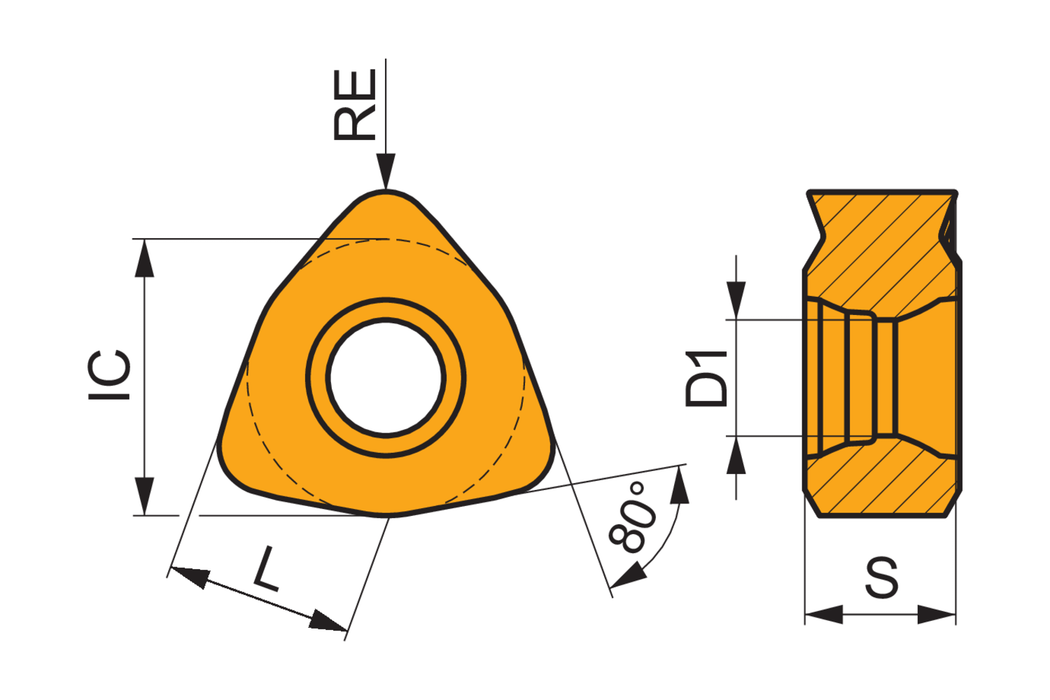

Max. Depth of Cut: 0.079

Insert Design: WNHX

Insert Shape Code: W - trigon

Insert Thickness: 0.133

Inscribed Circle Diameter: 0.244

Chip Breaker: WM

Grade: M4310

Corner Radius - in: 0.02

Corner Radius - mm: 0.5

EDP: 7639270

EAN: 3603603537385

MFG Part Number: 7639270
