WNHX 040305ER-WM:M8330
WNHX 040305ER-WM:M8330

WNHX 040305ER-WM:M8330

SKU DOR7639271
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$28.80 CAD - $28.80 CAD
$28.80 CAD
$28.80 CAD - $28.80 CAD
$28.80 CAD

Sold in packs of: 10

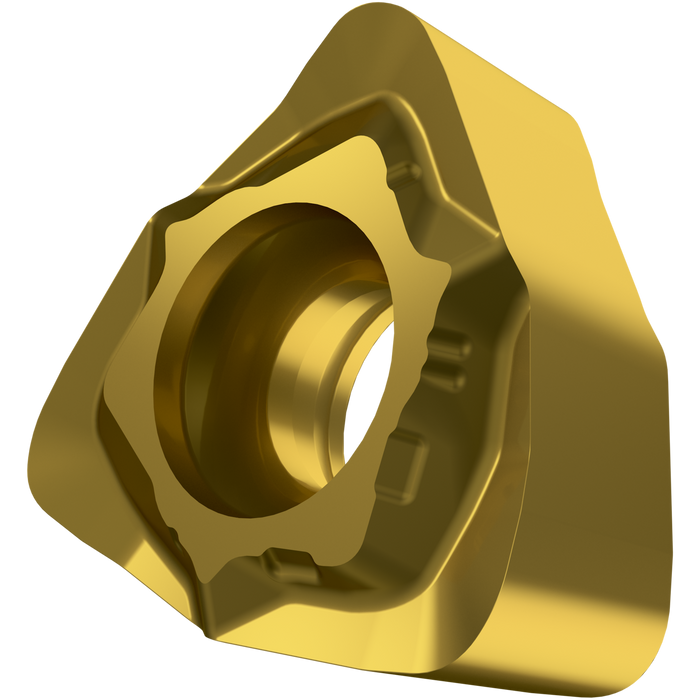

Double-sided milling insert WNHX 0403, 80° trigon and wiper design for a maximum depth of cut of .0787", with .0197" corner radius, an indexing accuracy according to ISO-tolerance class-H and WM geometry with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with copy face mills SWN04C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNHX 040305ER-WM:M8330
GradeM8330
Chipbreaker (CBMD)WM
Product Number7639271
Product FamilyWNHX 04

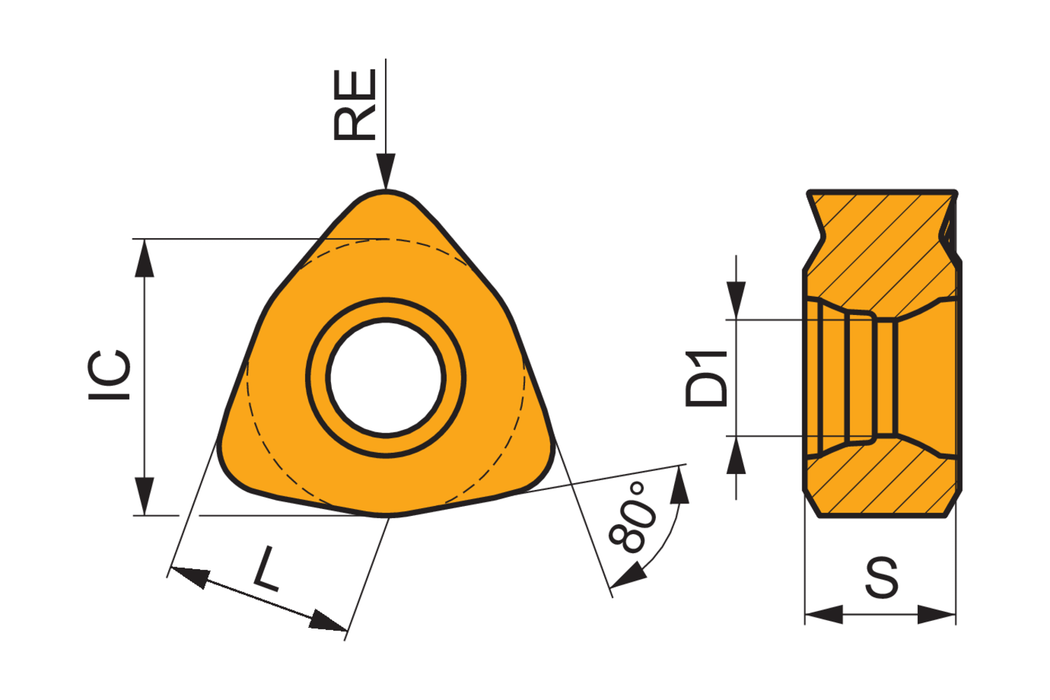

Insert Geometry
Insert DesignWNHX
Insert Shape Code (SC)W - trigon
Inscribed Circle Dia. — in (IC)0.244"
Inscribed Circle Dia. — mm (IC)6.2 mm
Insert Thickness — in (S)0.133"
Insert Thickness — mm (S)3.38 mm
Corner Radius — in (RE)0.02"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7639271
EAN3603603537392
File Type Download
WNHX 040305ER-WM:M8330 — Line Drawing PDF Download
