S1061/4

S1061/4

SKU DOR7648490
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.09 - $32.09
$32.09
$32.09 - $32.09
$32.09

Sold in packs of: 1

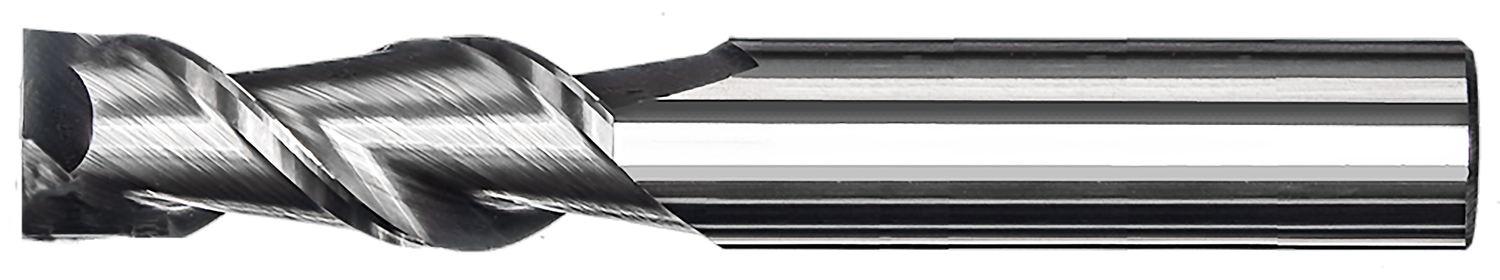

Regular length end mill with 2 flutes, diameter 1/4" with 1" length of cut and 2.1/2" overall length, according to DORMER standard with a 1/4" plain shank, solid carbide with bright finish, 45° helix for shoulder milling, slot milling and ramping in non-ferrous metals

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1061/4
GradeBright
Product Number7648490
Product FamilyS106
Insert Geometry
Depth of Cut Max — in (APMX)1.0"
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)45.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648490
EAN7320760845370
File Type Download
S1061/4 — Line Drawing PDF Download
