S1063/4

S1063/4

SKU DOR7648495
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.74 - $235.74
$235.74
$235.74 - $235.74
$235.74

Sold in packs of: 1

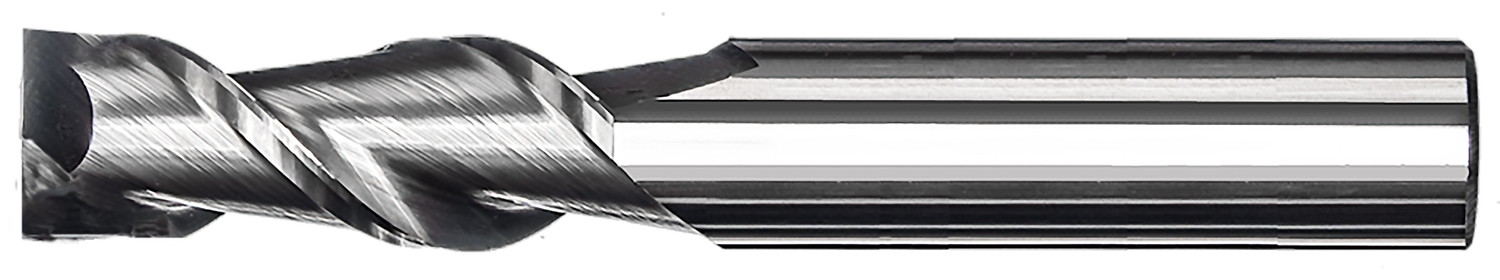

Regular length end mill with 2 flutes, diameter 3/4" with 1.3/4" length of cut and 4" overall length, according to DORMER standard with a 3/4" plain shank, solid carbide with bright finish, 45° helix for shoulder milling, slot milling and ramping in non-ferrous metals

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1063/4
GradeBright
Product Number7648495
Product FamilyS106
Insert Geometry
Depth of Cut Max — mm (APMX)44.45 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)2
Helix Angle (FHA)45.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648495
EAN7320760845424
File Type Download
S1063/4 — Line Drawing PDF Download
