S2073/16X3/4
SKU DOR7648507
Primary Use:

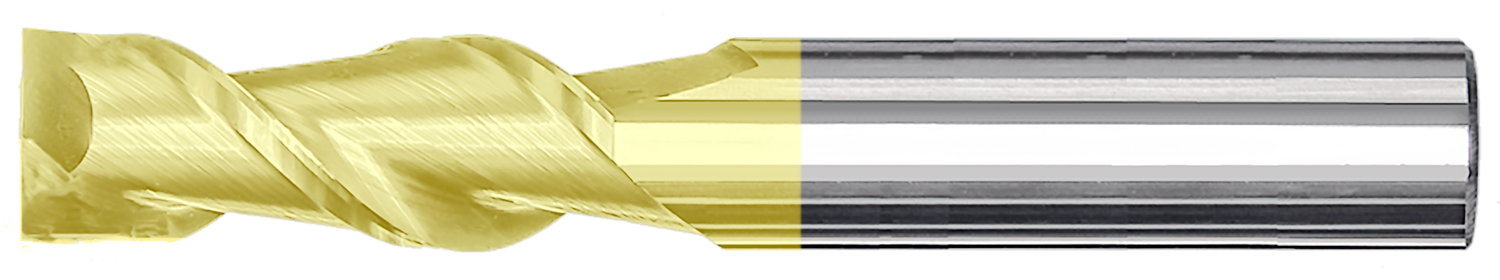

Regular length end mill with 2 flutes, diameter 3/16" with 3/4" length of cut and 2" overall length, according to DORMER standard with a 3/16" plain shank, solid carbide with ZrN coating, 37° helix for shoulder milling, slot milling and ramping in non-ferrous metals
Inventory
Sold in packs of: 1
For more information about this product,
click here
Original price
$37.31
-
Original price
$37.31
Original price
$37.31
$37.31
-
$37.31
Current price
$37.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.
In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

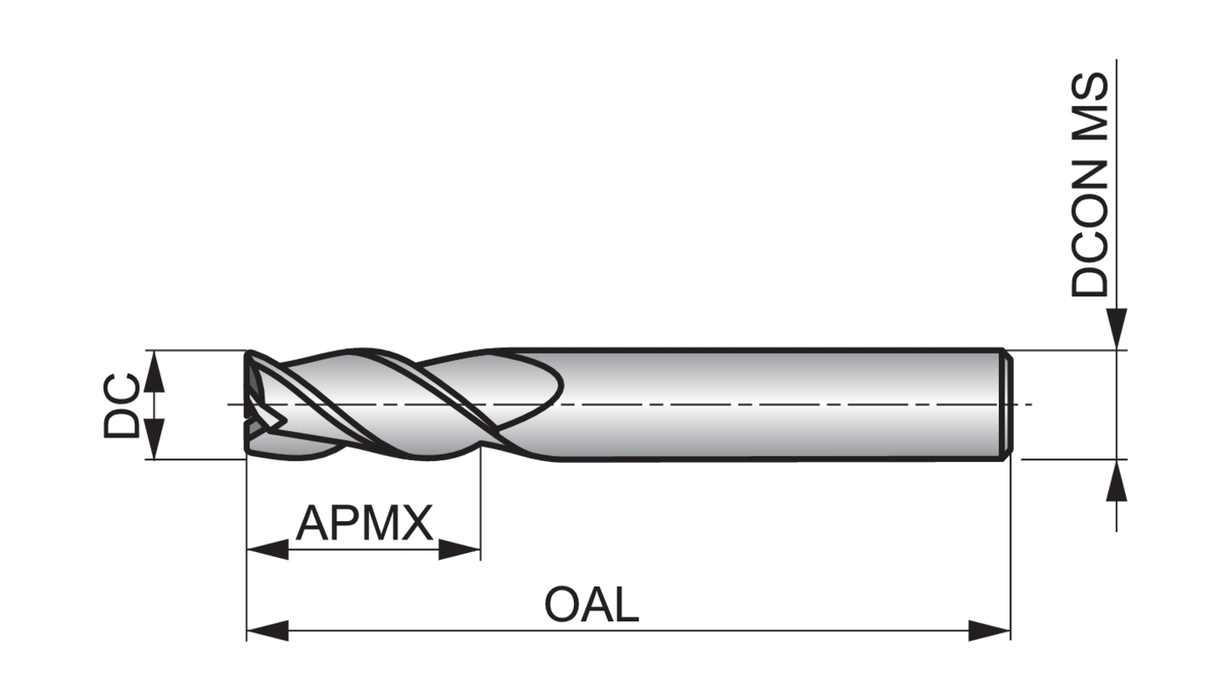

Material: HM
Cutting Diameter - in (DC): 0.1875
Cutting Diameter - mm (DC): 4.76
Overall Length (OAL): 2.0
Connetion Diameter: 0.1875
Shank: Cylindrical shank
Fractional: 3/16
Grade: ZrN
EDP: 7648507
EAN: 7320760845547
MFG Part Number: 7648507
