S1094.5

S1094.5

SKU DOR7648562
by Dormer Pramet
Primary Use: Possible Use:

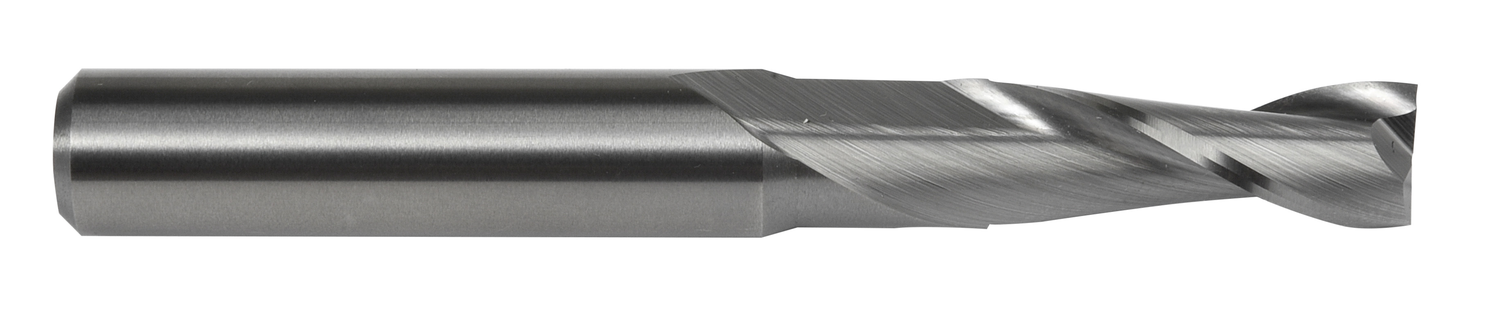

Regular length end mill with 2 flutes, diameter 4.5mm with 14mm length of cut and 50mm overall length, according to DORMER standard with a 5mm plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$23.26 - $23.26
$23.26
$23.26 - $23.26
$23.26
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

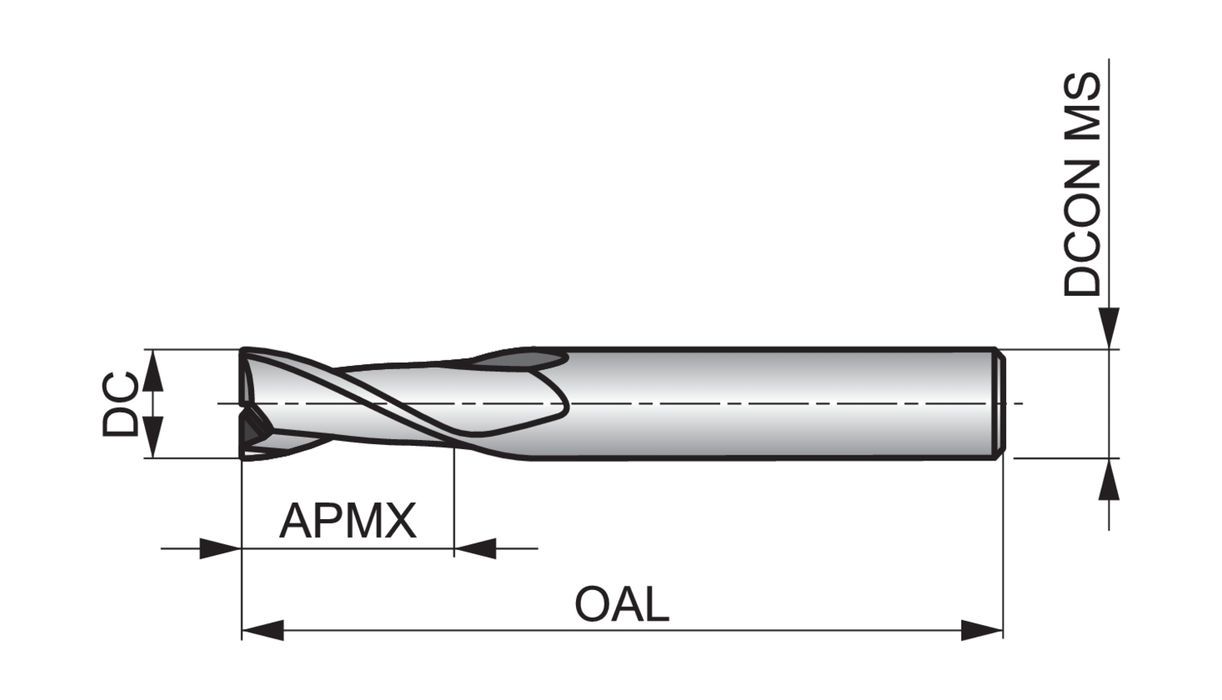

Material: HM

Cutting Diameter - in (DC): 0.1772

Cutting Diameter - mm (DC): 4.5

Overall Length (OAL): 1.9685

Connetion Diameter: 0.1969

Max. Depth of Cut: 0.5512

Shank: Cylindrical shank

Grade: Bright

Cutting Edge Count: 2

EDP: 7648562

EAN: 7320760846094

MFG Part Number: 7648562
