S1099.0
S1099.0

S1099.0

SKU DOR7648567
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$46.36 CAD - $46.36 CAD
$46.36 CAD
$46.36 CAD - $46.36 CAD
$46.36 CAD

Sold in packs of: 1

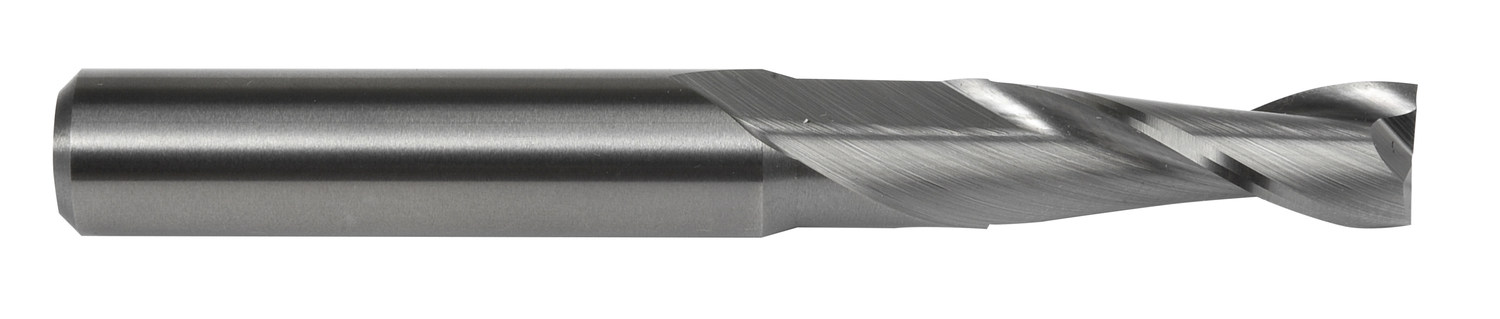

Regular length end mill with 2 flutes, diameter 9mm with 22mm length of cut and 70mm overall length, according to DORMER standard with a 10mm plain shank, solid carbide with bright finish, 30° helix for slot milling in steel and cast steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1099.0
GradeBright
Product Number7648567
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648567
EAN7320760846148
File Type Download
S1099.0 — Line Drawing PDF Download
