S2123/16

S2123/16

SKU DOR7648603
by Dormer Pramet
Primary Use:

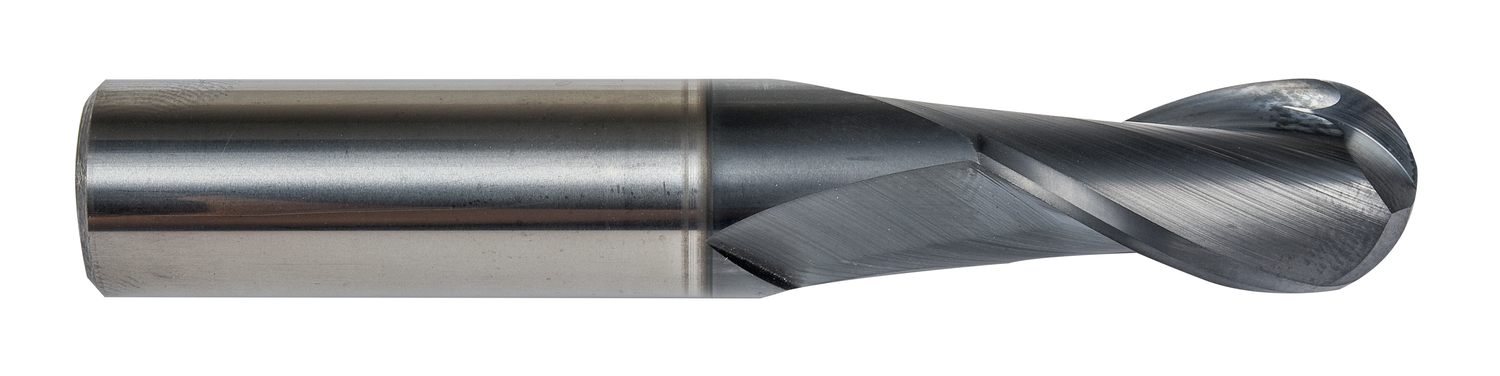

Regular length ball-nose end mill with 2 flutes, diameter 3/16" with 5/8" length of cut, 2" overall length and 3/32" full profile radius, according to DORMER standard with a 3/16" plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and malleable, ductile and compacted graphite cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$28.23 - $28.23
$28.23
$28.23 - $28.23
$28.23
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

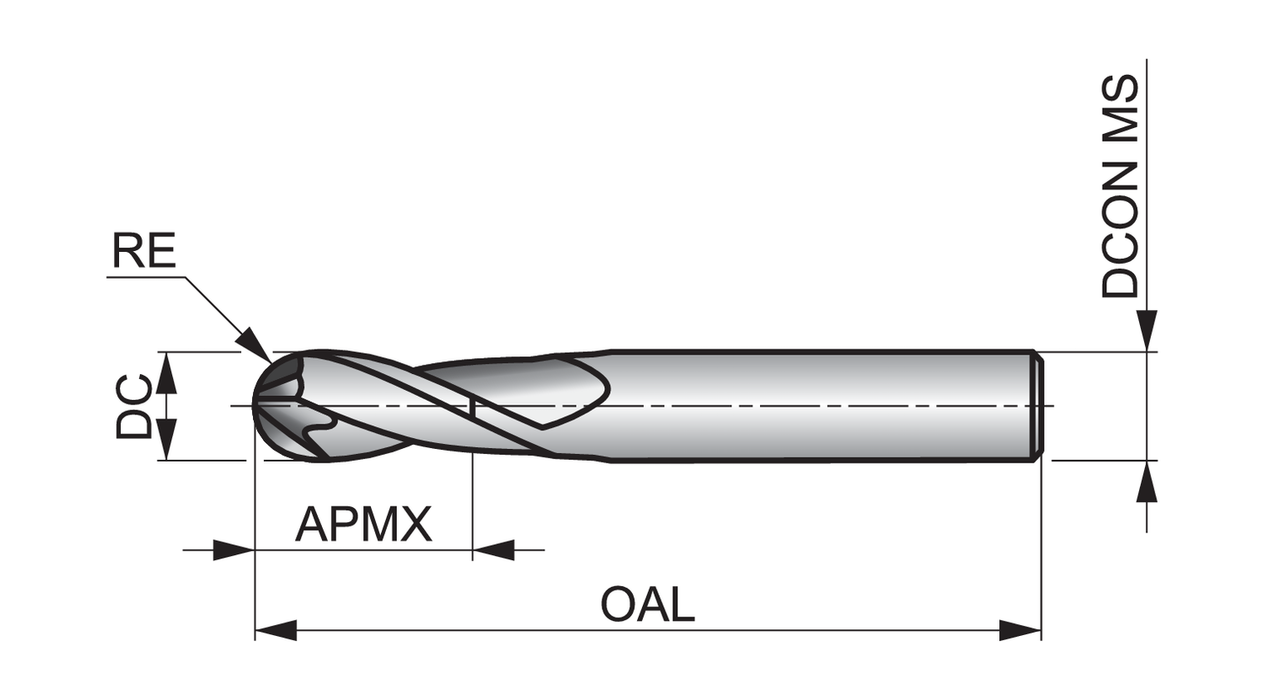

Material: HM

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Overall Length (OAL): 2.0

Connetion Diameter: 0.1875

Shank: Cylindrical shank

Fractional: 3/16

Grade: TiAlN

Corner Radius - in: 0.094

EDP: 7648603

EAN: 7320760846506

MFG Part Number: 7648603
