S11316.0

S11316.0

SKU DOR7648620
by Dormer Pramet
Primary Use:

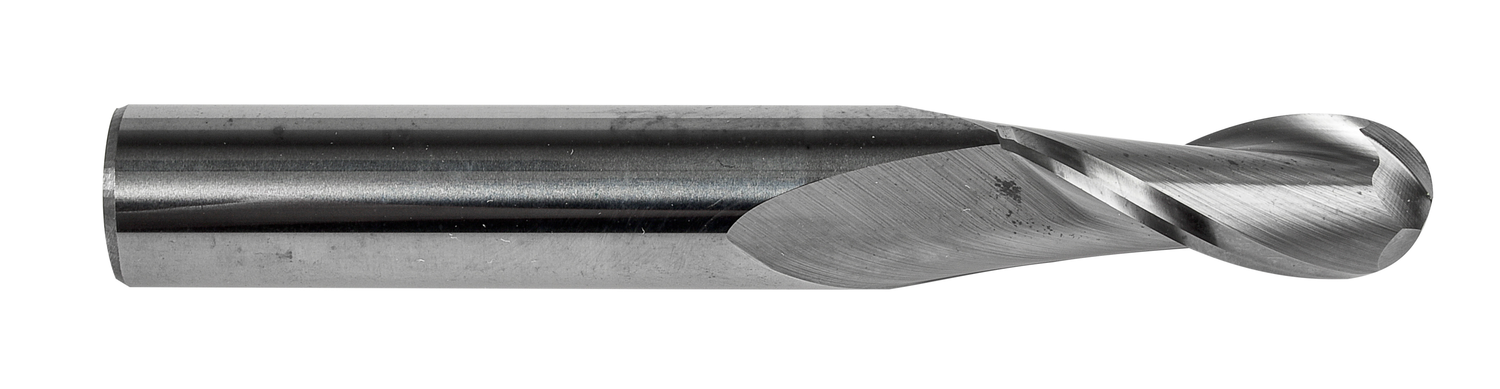

Regular length ball-nose end mill with 2 flutes, diameter 16mm with 32mm length of cut, 88mm overall length and 8mm full profile radius, according to DORMER standard with a 16mm plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$154.87 - $154.87
$154.87
$154.87 - $154.87
$154.87
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

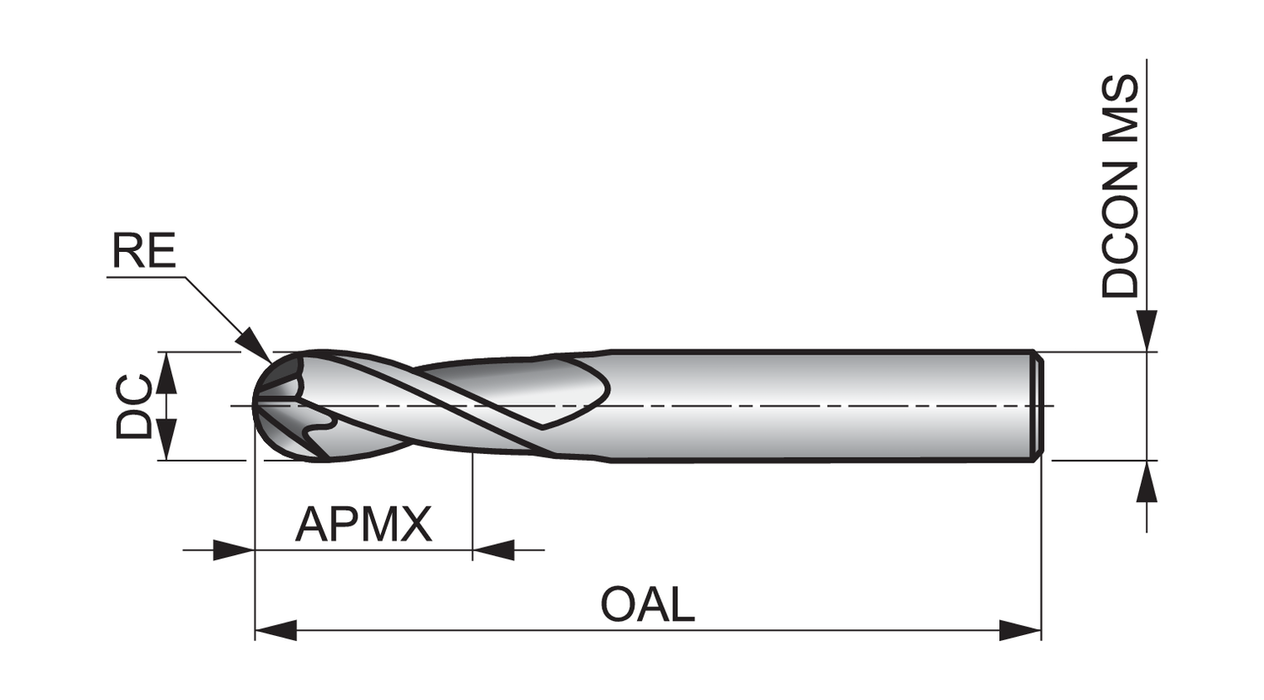

Material: HM

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 3.4646

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank

Grade: Bright

Corner Radius - in: 0.315

Corner Radius - mm: 8

Cutting Edge Count: 2

EDP: 7648620

EAN: 7320760846674

MFG Part Number: 7648620
