S1143/16

S1143/16

SKU DOR7648632
by Dormer Pramet
Primary Use:

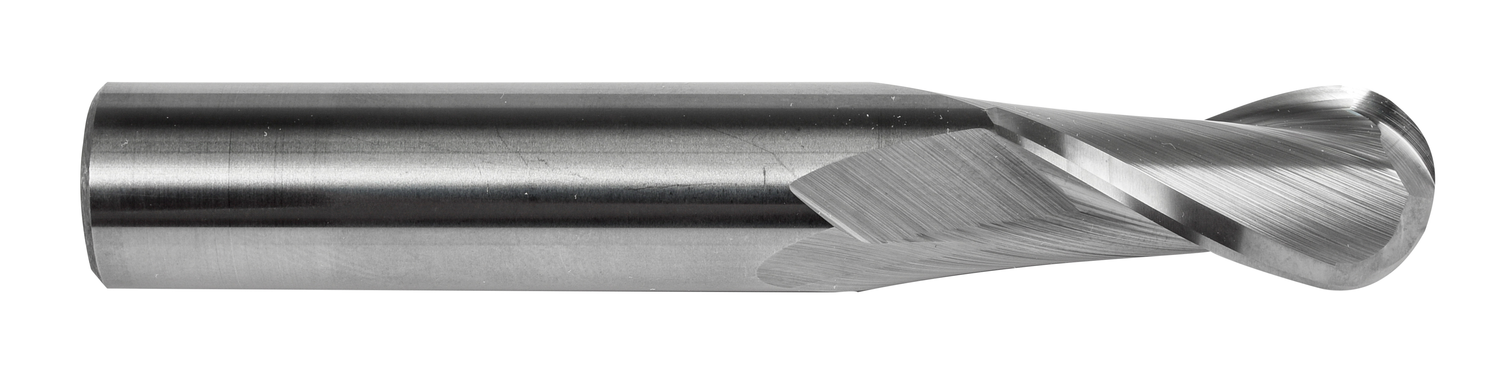

Long series ball-nose end mill with 2 flutes, diameter 3/16" with 3/4" length of cut, 2.1/2" overall length and 3/32" full profile radius, according to DORMER standard with a 3/16" plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, ferritic, martensitic and austenitic stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$41.81 - $41.81
$41.81
$41.81 - $41.81
$41.81
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

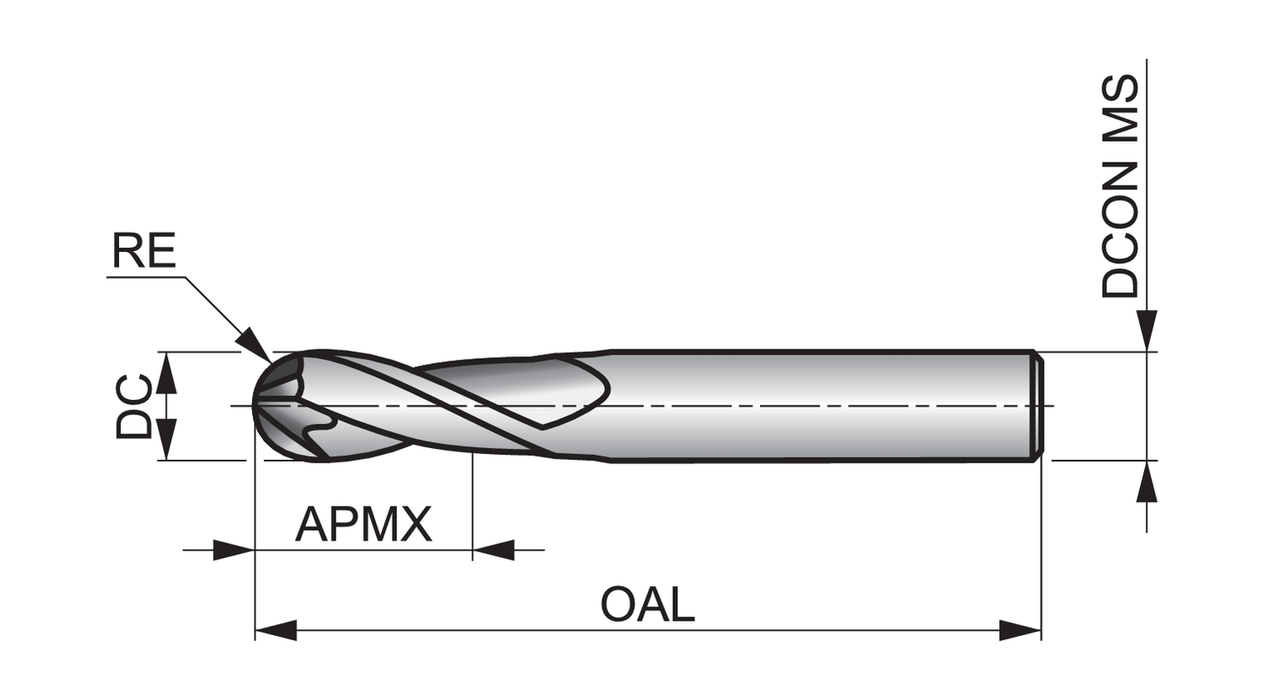

Material: HM

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Overall Length (OAL): 2.5

Connetion Diameter: 0.1875

Shank: Cylindrical shank

Fractional: 3/16

Grade: Bright

Corner Radius - in: 0.094

EDP: 7648632

EAN: 7320760846797

MFG Part Number: 7648632
