S2153/16

S2153/16

SKU DOR7648645
by Dormer Pramet
Primary Use:

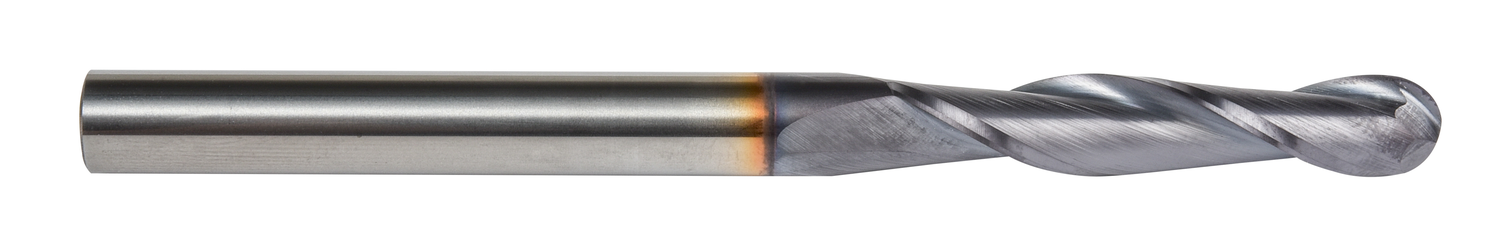

Extra long series ball-nose end mill with 2 flutes, diameter 3/16" with 1.1/8" length of cut, 3" overall length and 3/32" full profile radius, according to DORMER standard with a 3/16" plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$50.31 - $50.31
$50.31
$50.31 - $50.31
$50.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

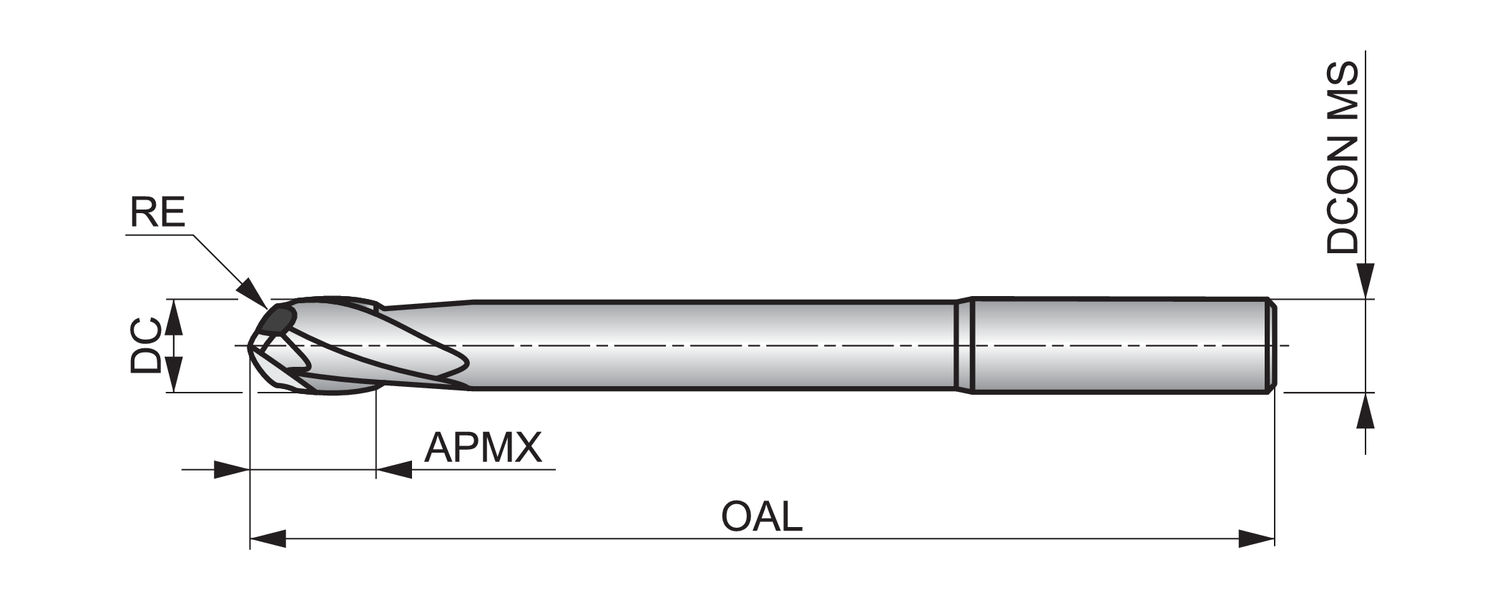

Material: HM

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Overall Length (OAL): 3.0

Connetion Diameter: 0.1875

Shank: Cylindrical shank

Fractional: 3/16

Grade: TiAlN

Corner Radius - in: 0.094

EDP: 7648645

EAN: 7320760846926

MFG Part Number: 7648645
