S2211/4

S2211/4

SKU DOR7648671
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.40 - $33.40
$33.40
$33.40 - $33.40
$33.40

Sold in packs of: 1

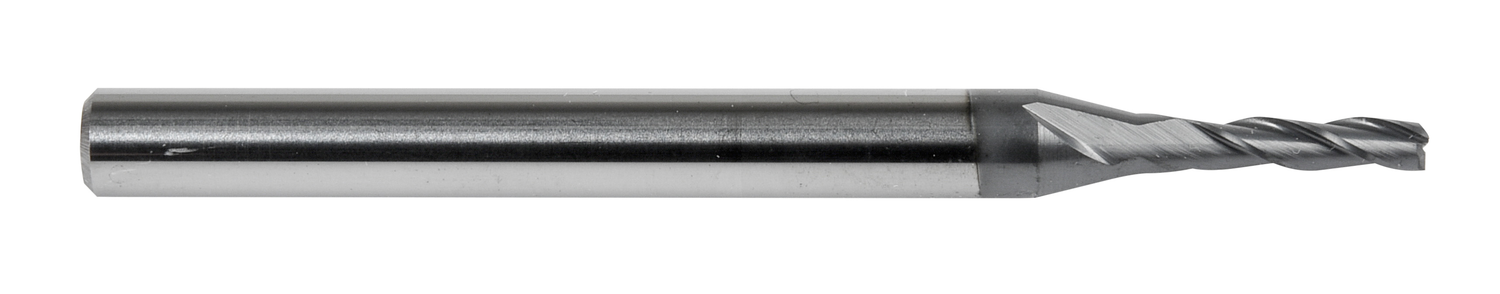

Regular length end mill with 3 flutes, diameter 1/4" with 3/4" length of cut and 2.1/2" overall length, according to DORMER standard with a 1/4" plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and slot milling in steel and cast steel, stainless steel and malleable, ductile and compacted graphite cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2211/4
GradeTiAlN
Product Number7648671
Product FamilyS221
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648671
EAN7320760847183
File Type Download

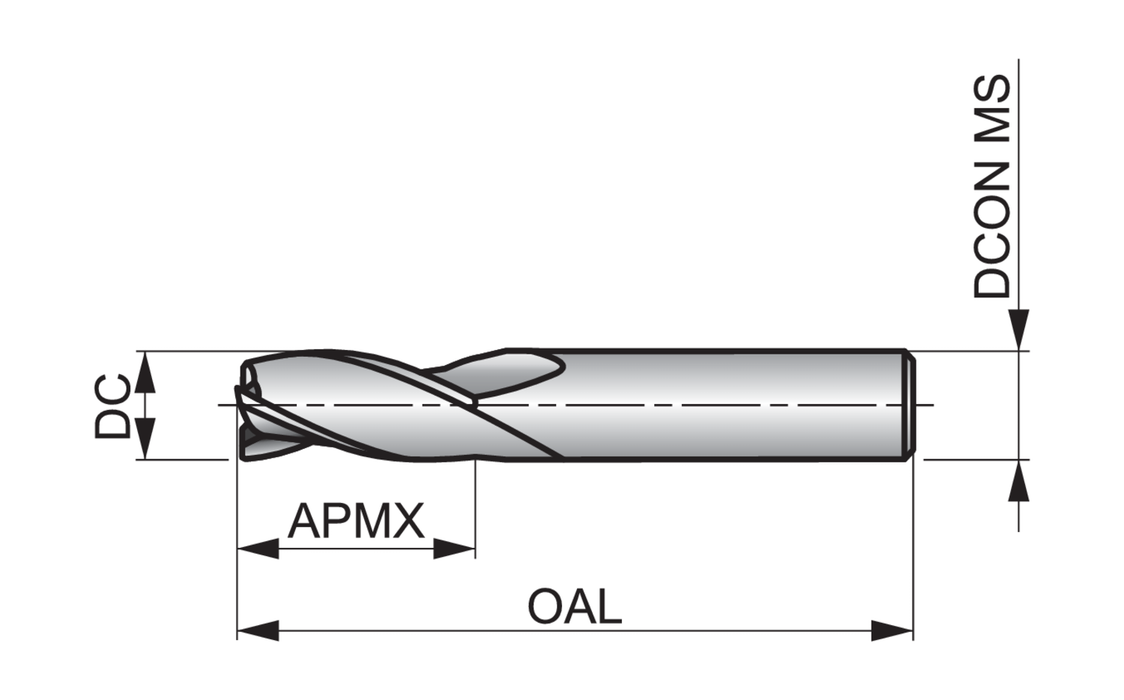

S2211/4 — Line Drawing PDF Download
