S223HA3/4XR.060

S223HA3/4XR.060

SKU DOR7648694
by Dormer Pramet
Primary Use:

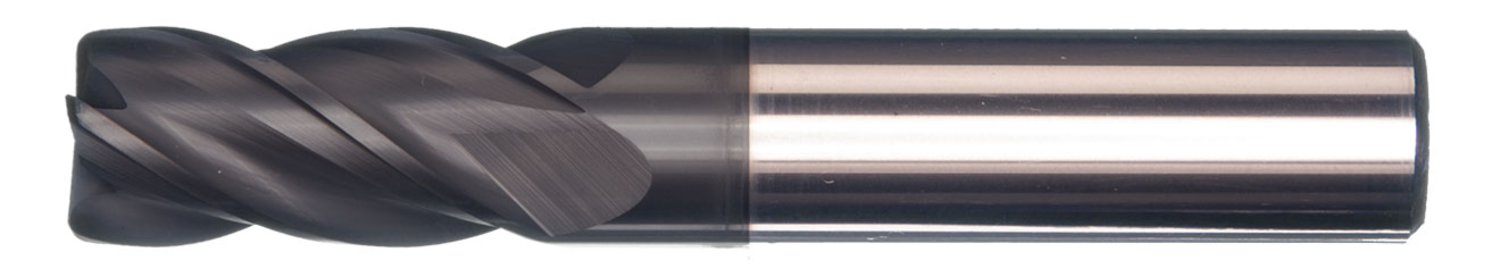

Regular length corner radius end mill with 4 flutes, diameter 3/4" with 1.1/2" length of cut, 4" overall length and 0.06" corner radii, according to DORMER standard with a 3/4" plain shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$248.43 - $248.43
$248.43
$248.43 - $248.43
$248.43
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: AlTiN

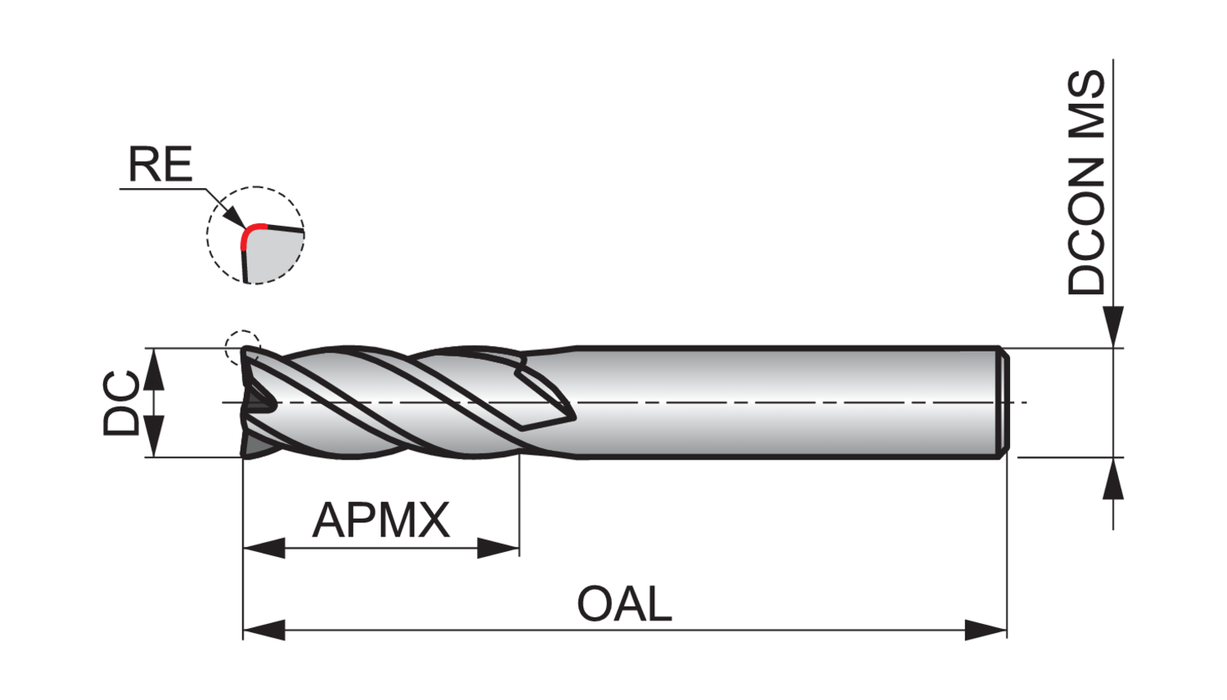

Cutting Diameter - in (DC): 0.75

Cutting Diameter - mm (DC): 19.05

Overall Length (OAL): 4.0

Connetion Diameter: 0.75

Shank: Cylindrical shank DIN 6535 HA

Fractional: 3/4

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

High Temp Alloys: Primary use

Hardened Material: Primary use

Grade: AlTiN

Corner Radius - in: 0.06

EDP: 7648694

EAN: 7320760847411

MFG Part Number: 7648694
