S223HB3/16XR.030

S223HB3/16XR.030

SKU DOR7648700
by Dormer Pramet
Primary Use:

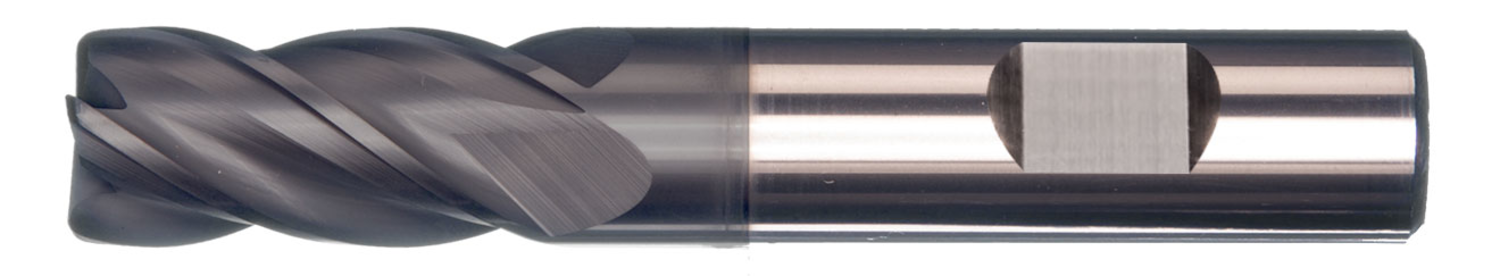

Regular length corner radius end mill with 4 flutes, diameter 3/16" with 7/16" length of cut, 2" overall length and 0.03" corner radii, according to DORMER standard with a 3/16" Weldon shank, solid carbide with AlTiN coating, unequal helix for shoulder milling, plunging, progressive plunge milling, ramping, helical milling and trochoidal milling in steel and cast steel, stainless steel, cast-iron, high-temperature alloys, chilled, hardened cast-iron and hardened steel <55HRC

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$33.51 - $33.51
$33.51
$33.51 - $33.51
$33.51
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

Coating: AlTiN

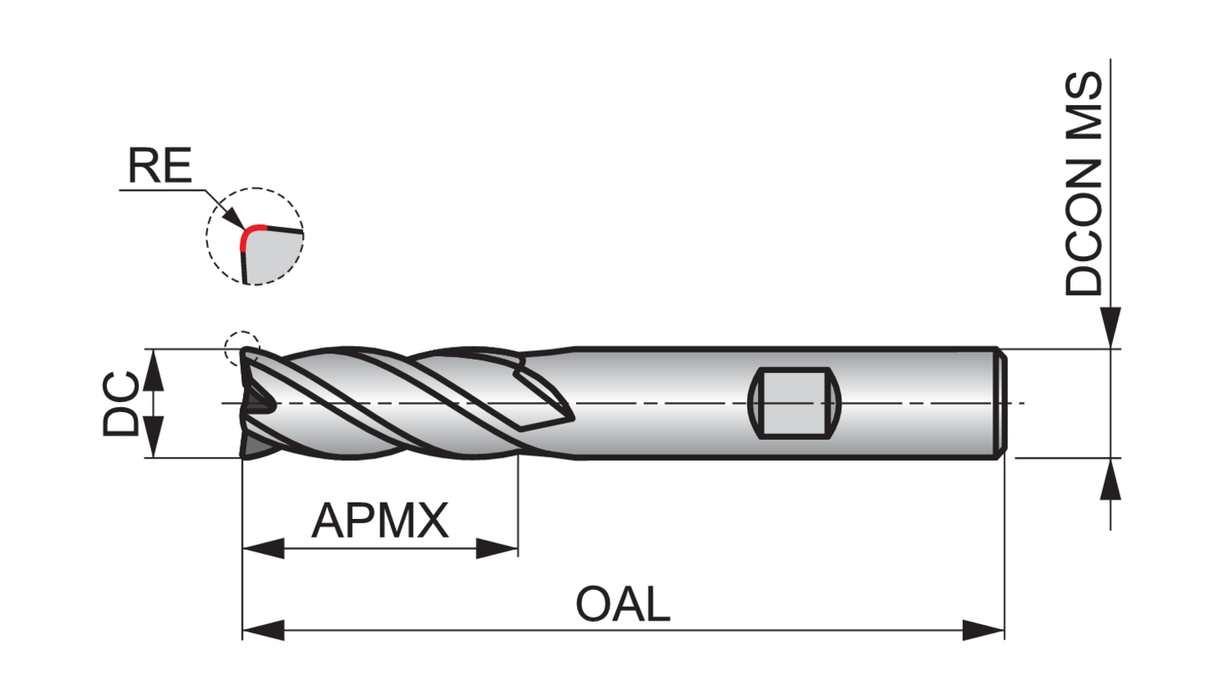

Cutting Diameter - in (DC): 0.1875

Cutting Diameter - mm (DC): 4.76

Overall Length (OAL): 2.0

Connetion Diameter: 0.1875

Shank: Cylindrical shank DIN 6535 HB

Fractional: 3/16

Steel and Cast Steel: Primary use

Stainless Steel: Primary use

Cast Iron: Primary use

High Temp Alloys: Primary use

Hardened Material: Primary use

Grade: AlTiN

Corner Radius - in: 0.03

EDP: 7648700

EAN: 7320760847473

MFG Part Number: 7648700
