S1345/64
S1345/64

S1345/64

SKU DOR7648727
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.16 CAD - $17.16 CAD
$17.16 CAD
$17.16 CAD - $17.16 CAD
$17.16 CAD

Sold in packs of: 1

Regular length end mill with 4 flutes, diameter 5/64" with 1/4" length of cut and 1.1/2" overall length, according to DORMER standard with a 1/8" plain shank, solid carbide with bright finish, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1345/64
GradeBright
Product Number7648727
Product FamilyS134
Insert Geometry
Depth of Cut Max — mm (APMX)6.35 mm

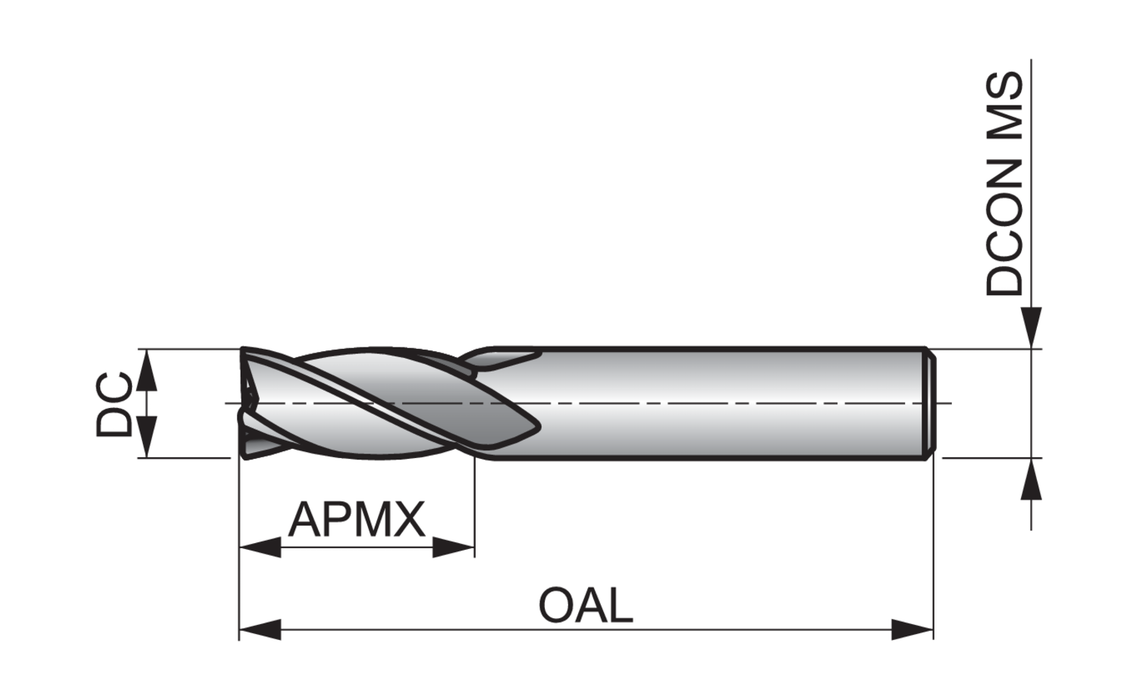

Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648727
EAN7320760847749
File Type Download
S1345/64 — Line Drawing PDF Download
