S2347/64
S2347/64

S2347/64

SKU DOR7648751
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.17 CAD - $20.17 CAD
$20.17 CAD
$20.17 CAD - $20.17 CAD
$20.17 CAD

Sold in packs of: 1

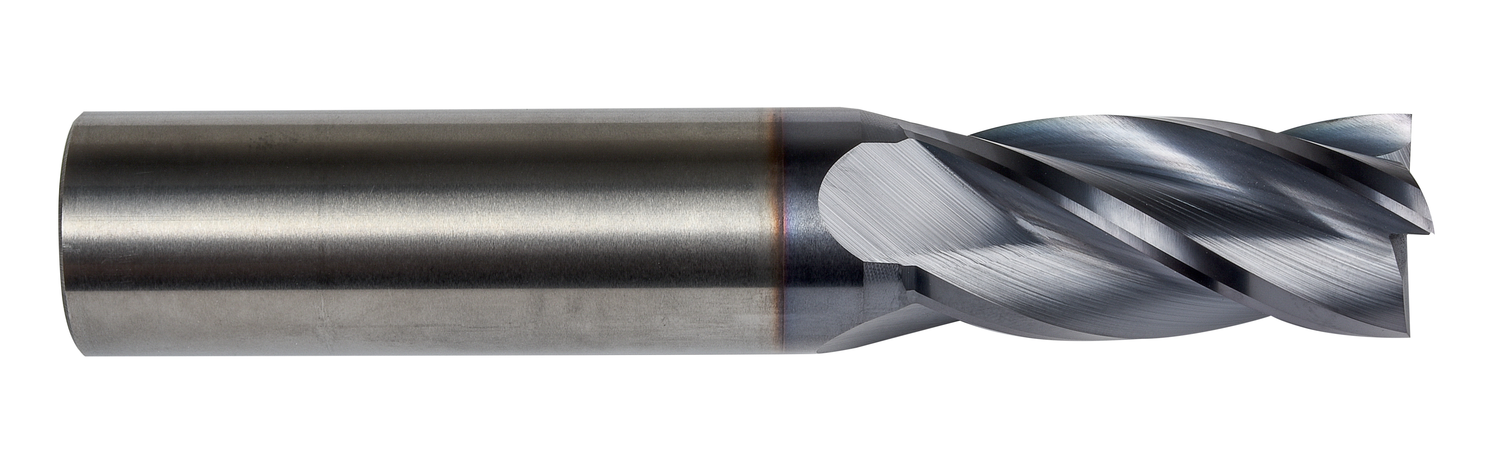

Regular length end mill with 4 flutes, diameter 7/64" with 3/8" length of cut and 1.1/2" overall length, according to DORMER standard with a 1/8" plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2347/64
GradeTiAlN
Product Number7648751
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)9.53 mm
Dimensions
Cutting Diameter — in (DC)0.1094"
Cutting Diameter — mm (DC)2.78 mm
Cutting Diameter — Fractional7/64
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648751
EAN7320760847985
File Type Download
S2347/64 — Line Drawing PDF Download
