S2349/64
S2349/64

S2349/64

SKU DOR7648753
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.06 CAD - $27.06 CAD
$27.06 CAD
$27.06 CAD - $27.06 CAD
$27.06 CAD

Sold in packs of: 1

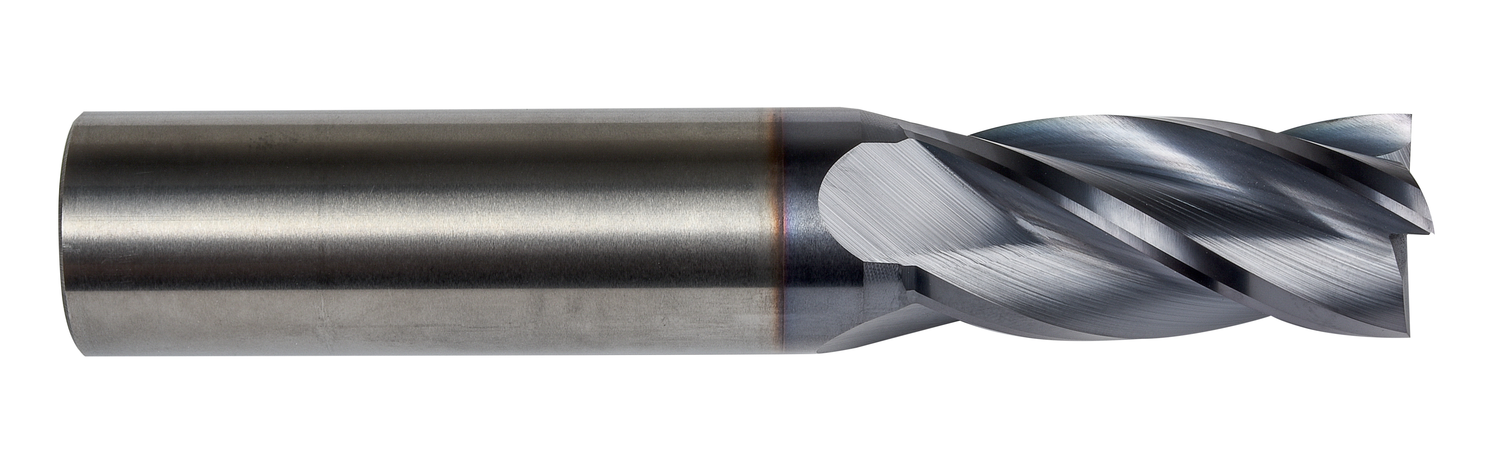

Regular length end mill with 4 flutes, diameter 9/64" with 9/16" length of cut and 2" overall length, according to DORMER standard with a 3/16" plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2349/64
GradeTiAlN
Product Number7648753
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.1406"
Cutting Diameter — mm (DC)3.57 mm
Cutting Diameter — Fractional9/64
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648753
EAN7320760848005
File Type Download
S2349/64 — Line Drawing PDF Download
