S2349/16

S2349/16

SKU DOR7648764
by Dormer Pramet
Primary Use:

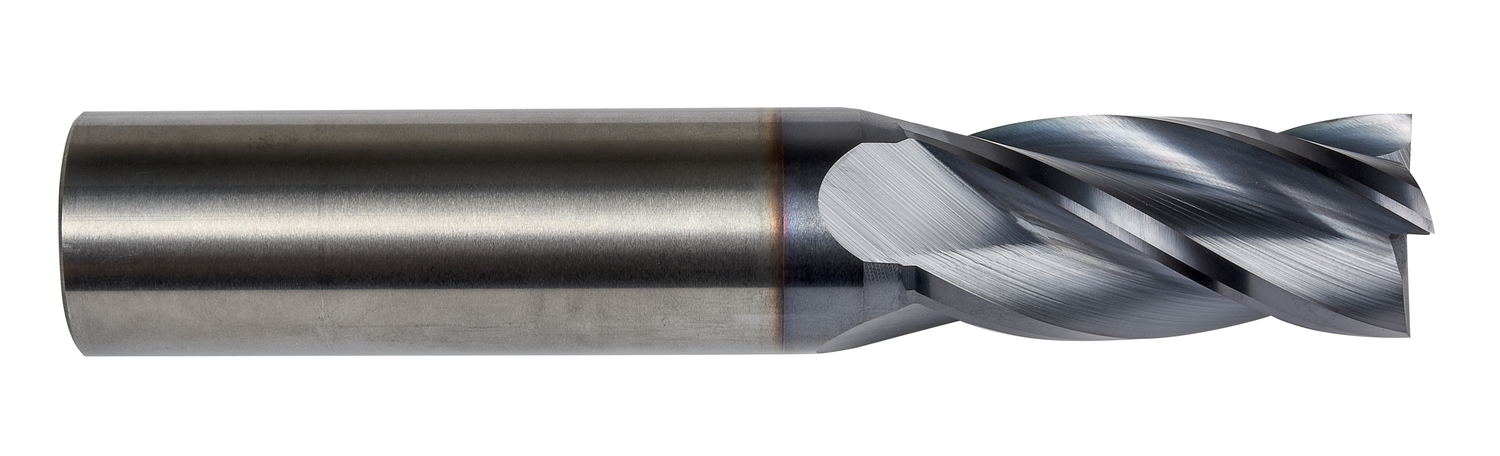

Regular length end mill with 4 flutes, diameter 9/16" with 1.1/4" length of cut and 3.1/2" overall length, according to DORMER standard with a 9/16" plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$144.30 - $144.30
$144.30
$144.30 - $144.30
$144.30
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

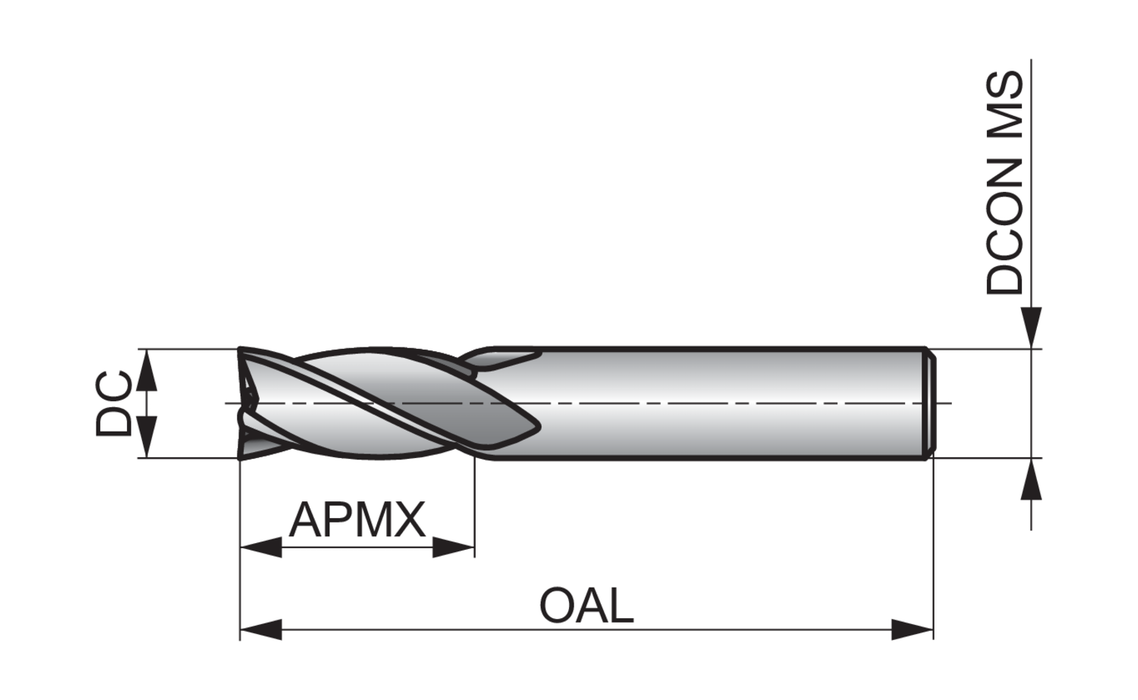

Material: HM

Cutting Diameter - in (DC): 0.5625

Cutting Diameter - mm (DC): 14.29

Overall Length (OAL): 3.5

Connetion Diameter: 0.5625

Shank: Cylindrical shank

Fractional: 9/16

Grade: TiAlN

EDP: 7648764

EAN: 7320760848111

MFG Part Number: 7648764
