S23514.0

S23514.0

SKU DOR7648803
by Dormer Pramet
Primary Use:

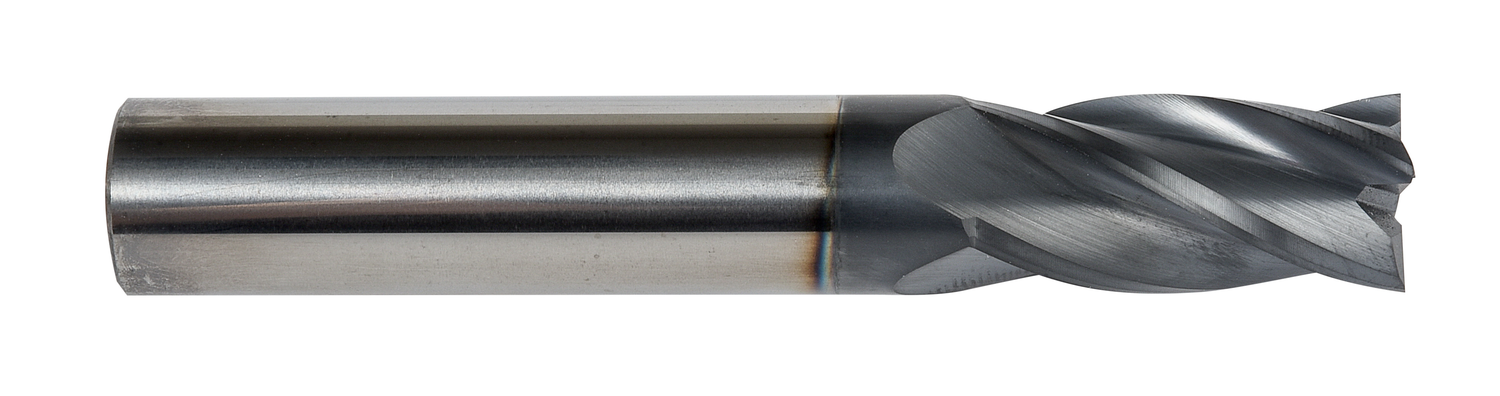

Regular length end mill with 4 flutes, diameter 14mm with 30mm length of cut and 88mm overall length, according to DORMER standard with a 14mm plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$151.17 - $151.17
$151.17
$151.17 - $151.17
$151.17
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

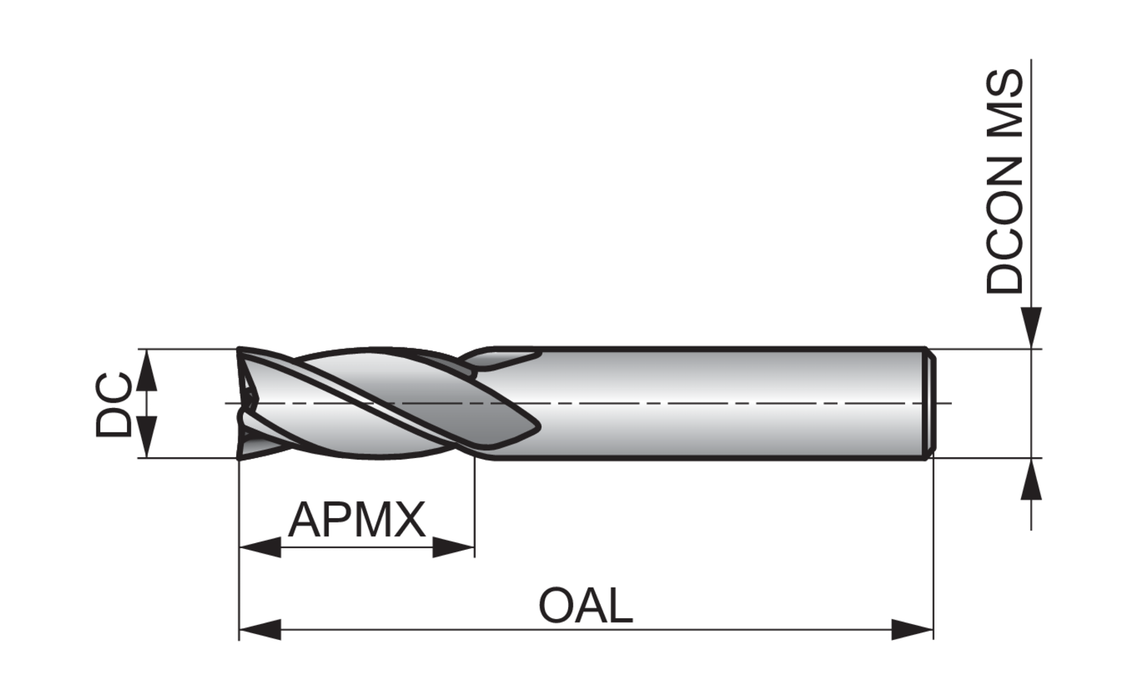

Material: HM

Cutting Diameter - in (DC): 0.5512

Cutting Diameter - mm (DC): 14.0

Overall Length (OAL): 3.4646

Connetion Diameter: 0.5512

Max. Depth of Cut: 1.1811

Shank: Cylindrical shank

Grade: TiAlN

Cutting Edge Count: 4

EDP: 7648803

EAN: 7320760848500

MFG Part Number: 7648803
