S23516.0

S23516.0

SKU DOR7648804
by Dormer Pramet
Primary Use:

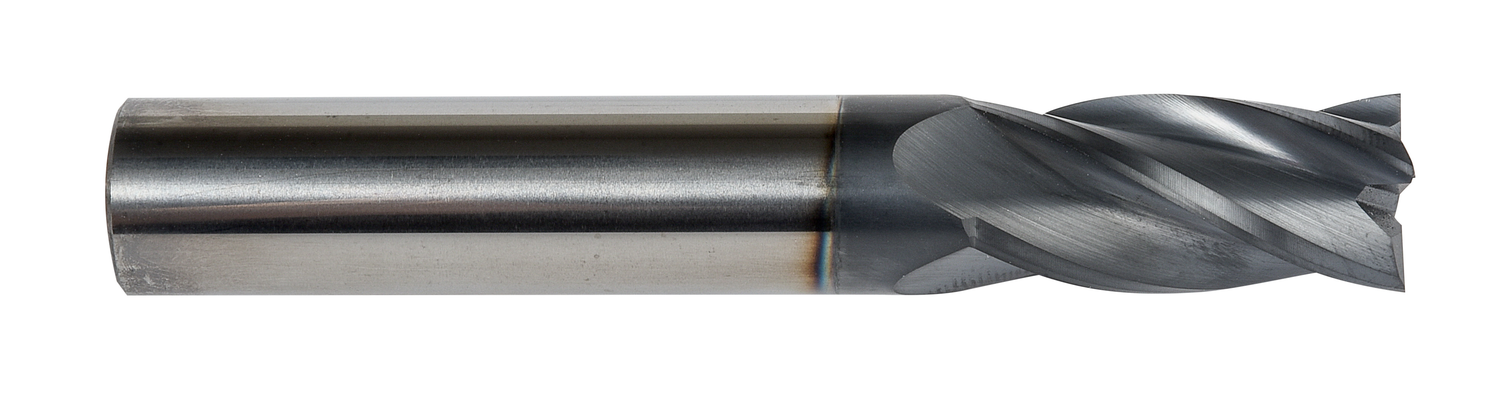

Regular length end mill with 4 flutes, diameter 16mm with 32mm length of cut and 88mm overall length, according to DORMER standard with a 16mm plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$172.31 - $172.31
$172.31
$172.31 - $172.31
$172.31
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HM

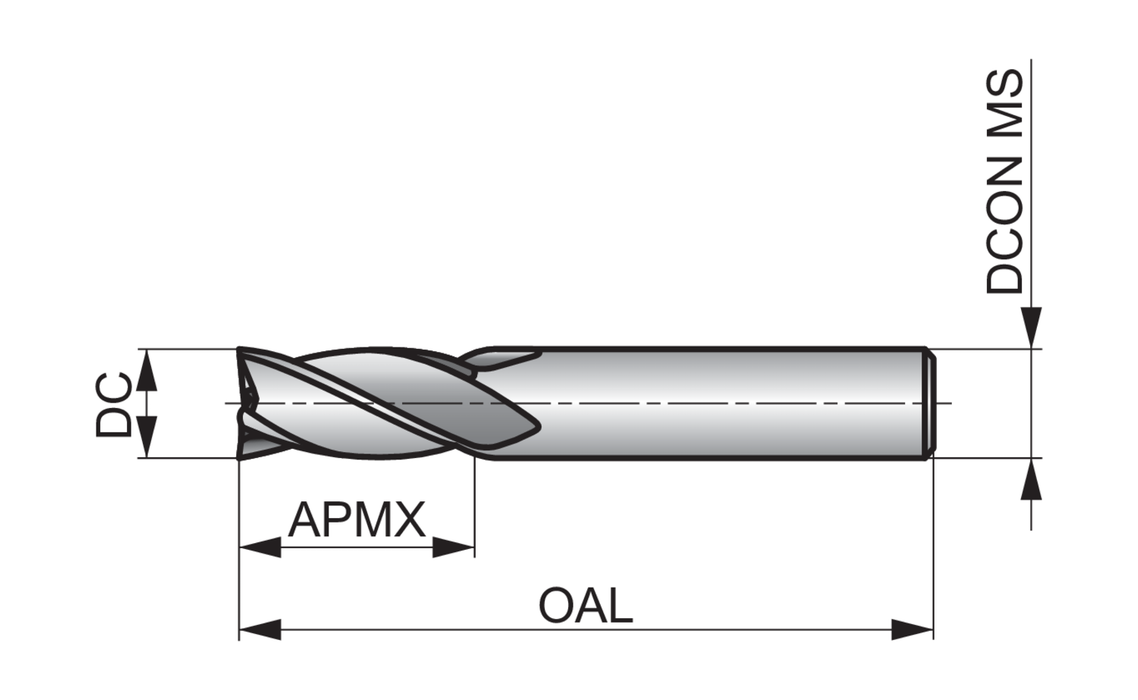

Cutting Diameter - in (DC): 0.6299

Cutting Diameter - mm (DC): 16.0

Overall Length (OAL): 3.4646

Connetion Diameter: 0.6299

Max. Depth of Cut: 1.2598

Shank: Cylindrical shank

Grade: TiAlN

Cutting Edge Count: 4

EDP: 7648804

EAN: 7320760848517

MFG Part Number: 7648804
