S2363/4
S2363/4

S2363/4

SKU DOR7648824
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$271.69 CAD - $271.69 CAD
$271.69 CAD
$271.69 CAD - $271.69 CAD
$271.69 CAD

Sold in packs of: 1

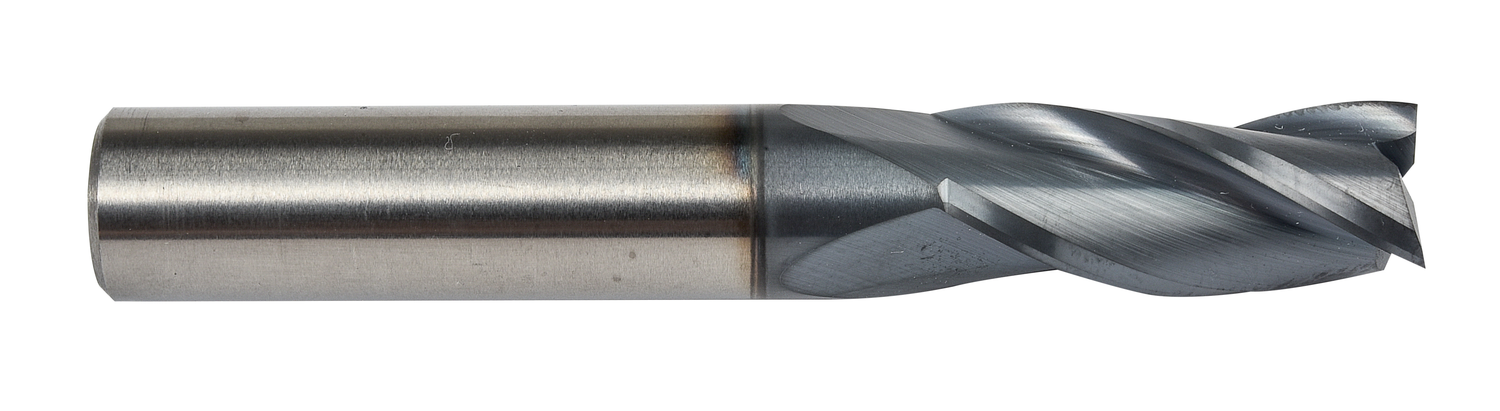

Long series end mill with 4 flutes, diameter 3/4" with 2.1/4" length of cut and 5" overall length, according to DORMER standard with a 3/4" plain shank, solid carbide with TiAlN coating, 30° helix for shoulder milling and plunging in steel and cast steel, stainless steel and cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2363/4
GradeTiAlN
Product Number7648824
Product FamilyS236

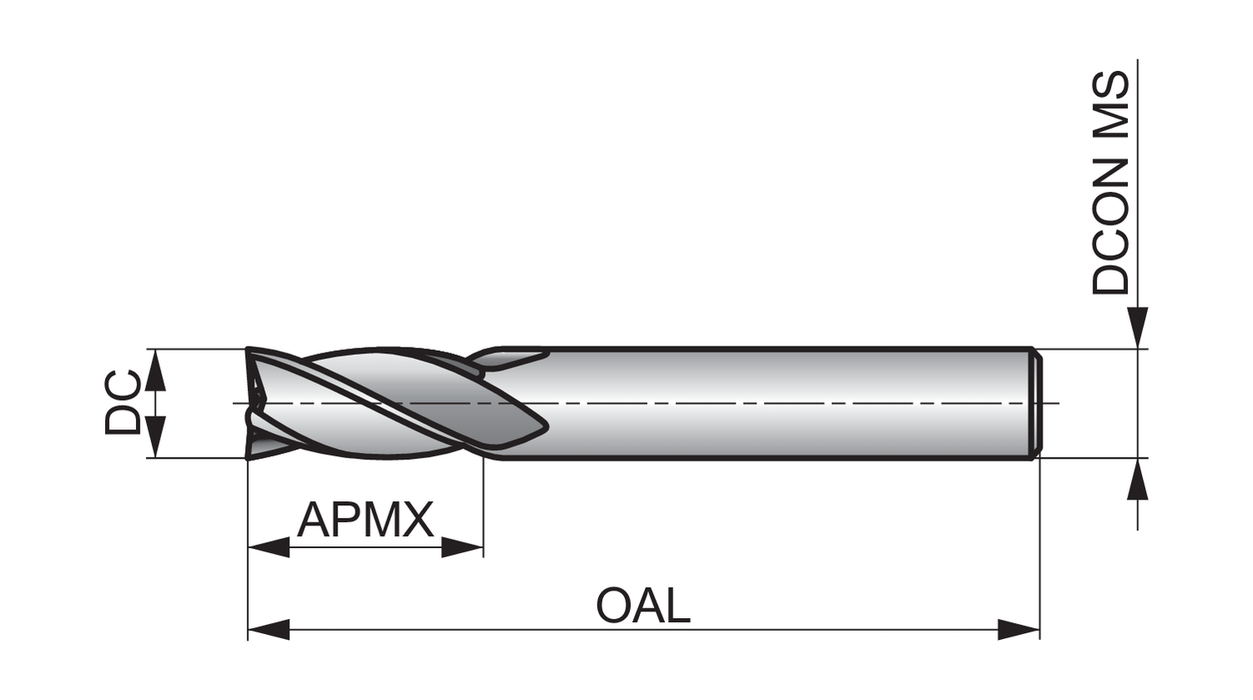

Insert Geometry
Depth of Cut Max — mm (APMX)57.15 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648824
EAN7320760848715
File Type Download
S2363/4 — Line Drawing PDF Download
