S1383/32

S1383/32

SKU DOR7648846
by Dormer Pramet
Primary Use:

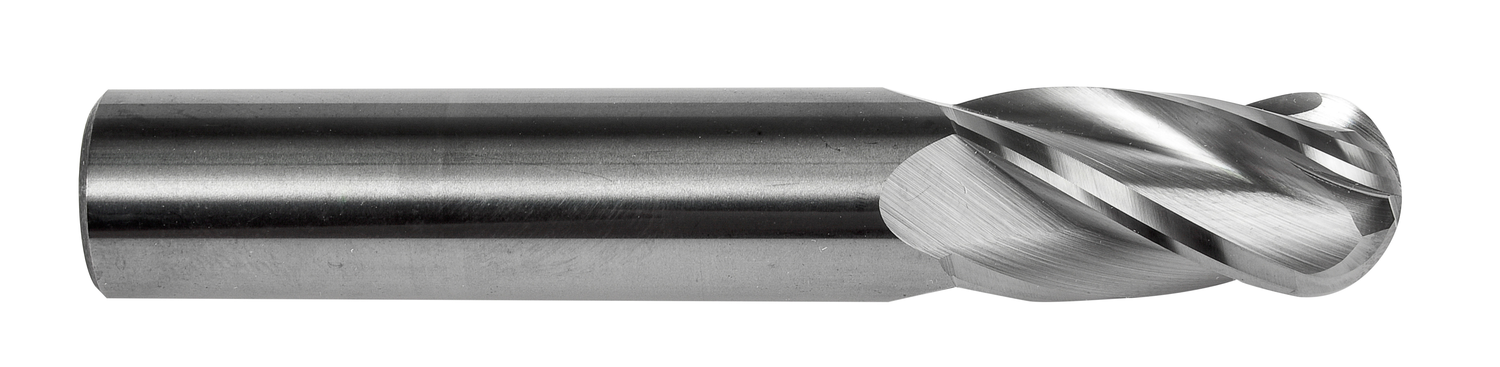

Regular length ball-nose end mill with 4 flutes, diameter 3/32" with 3/8" length of cut, 1.1/2" overall length and 3/64" full profile radius, according to DORMER standard with a 1/8" plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$19.56 - $19.56
$19.56
$19.56 - $19.56
$19.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

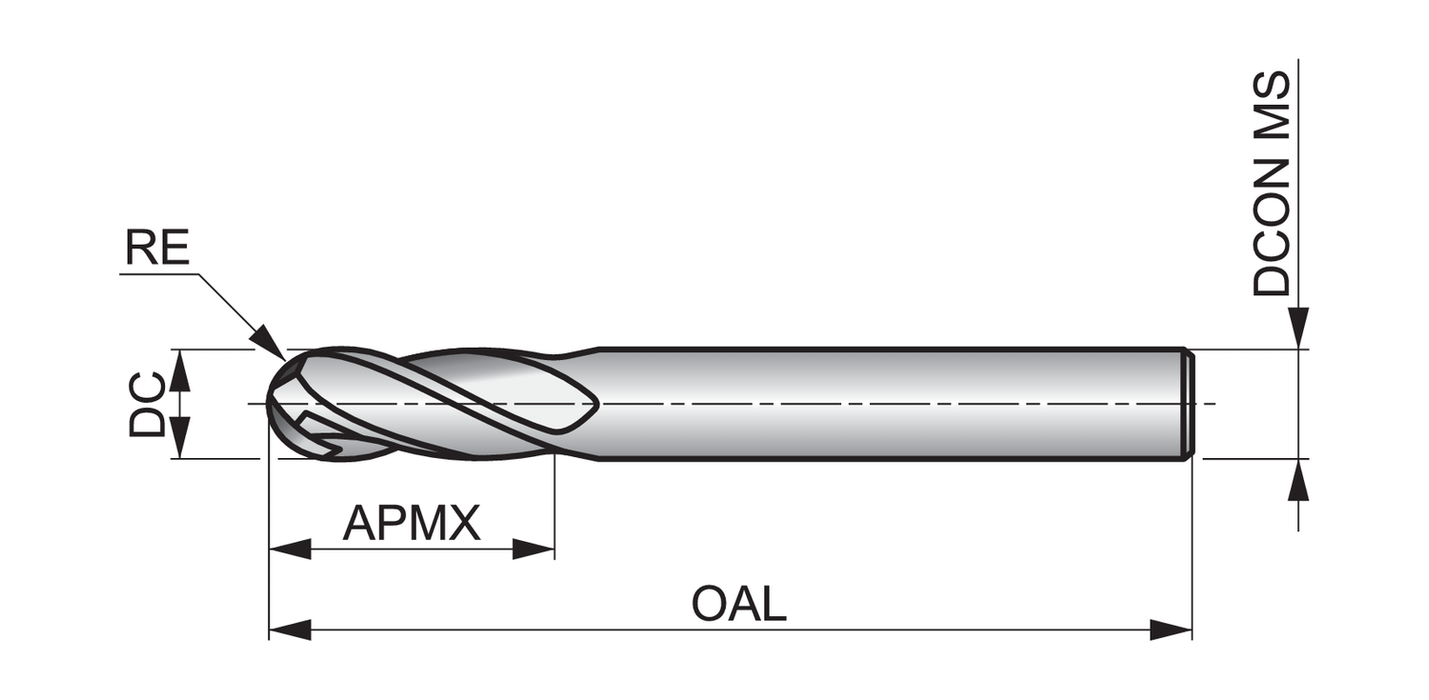

Material: HM

Cutting Diameter - in (DC): 0.0938

Cutting Diameter - mm (DC): 2.38

Overall Length (OAL): 1.5

Connetion Diameter: 0.125

Shank: Cylindrical shank

Fractional: 3/32

Grade: Bright

Corner Radius - in: 0.047

EDP: 7648846

EAN: 7320760848937

MFG Part Number: 7648846
