S1383/16
S1383/16

S1383/16

SKU DOR7648849
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.41 CAD - $23.41 CAD
$23.41 CAD
$23.41 CAD - $23.41 CAD
$23.41 CAD

Sold in packs of: 1

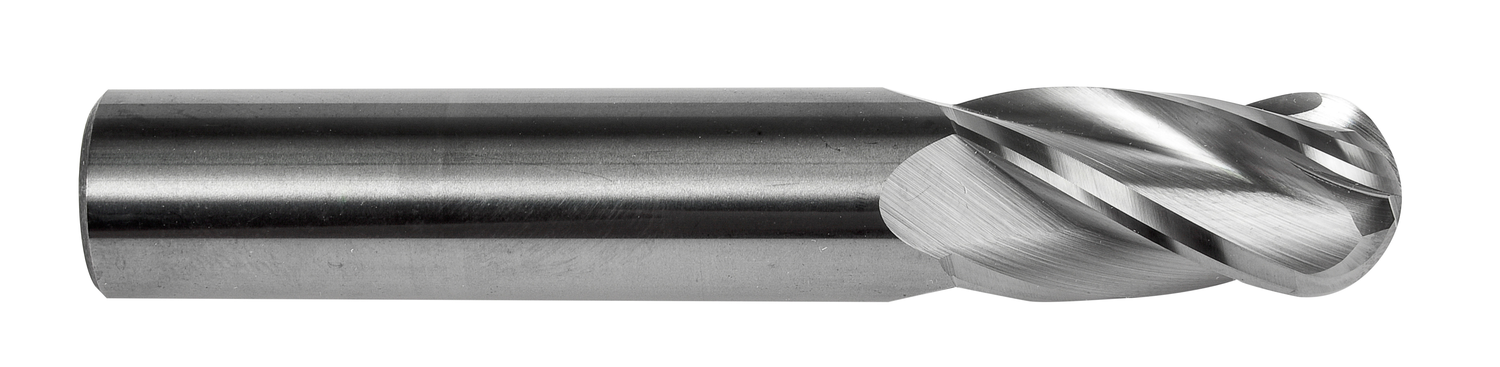

Regular length ball-nose end mill with 4 flutes, diameter 3/16" with 5/8" length of cut, 2" overall length and 3/32" full profile radius, according to DORMER standard with a 3/16" plain shank, solid carbide with bright finish, 30° helix for copy milling in steel and cast steel, stainless steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1383/16
GradeBright
Product Number7648849
Product FamilyS138
Insert Geometry
Corner Radius — in (RE)0.094"
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648849
EAN7320760848968
File Type Download

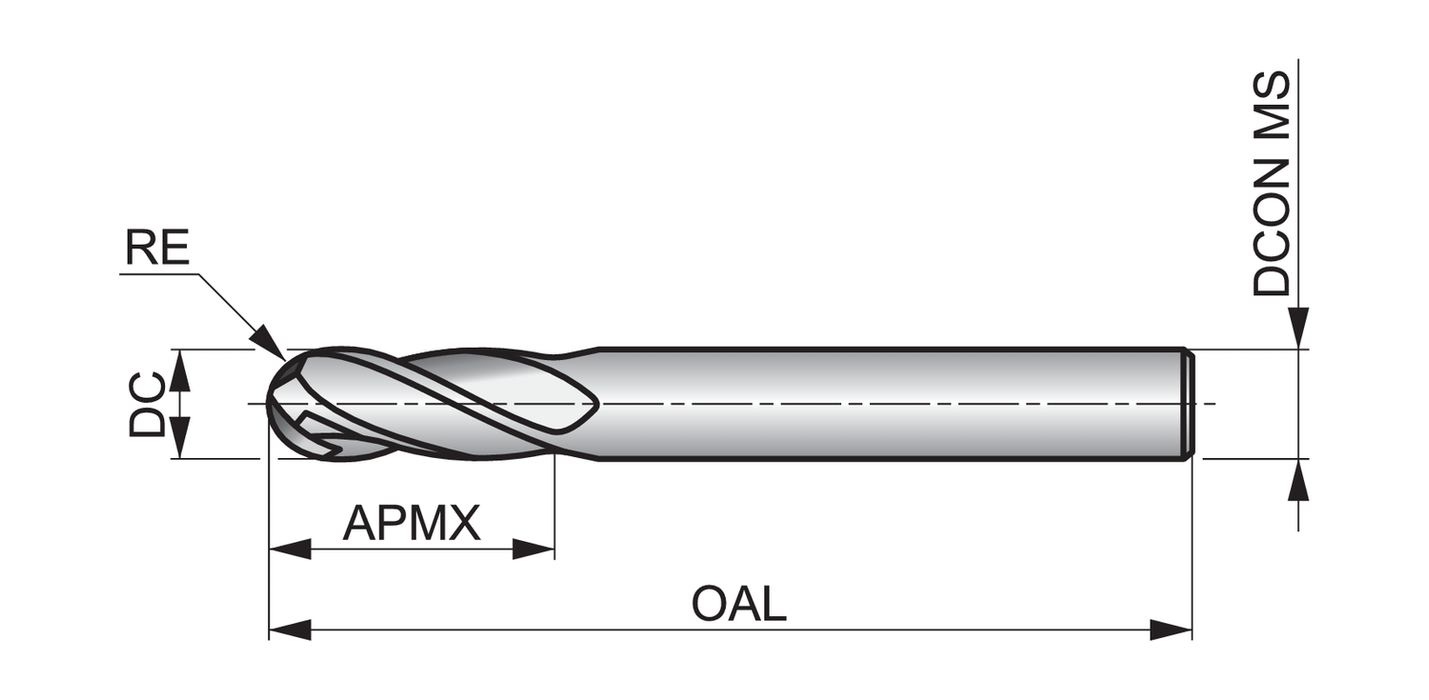

S1383/16 — Line Drawing PDF Download
