S2385/16

S2385/16

SKU DOR7648863
by Dormer Pramet
Primary Use: Possible Use:

Regular length ball-nose end mill with 4 flutes, diameter 5/16" with 7/8" length of cut, 2.1/2" overall length and 5/32" full profile radius, according to DORMER standard with a 5/16" plain shank, solid carbide with TiAlN coating, 30° helix for copy milling in steel and cast steel, stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$52.76 - $52.76
$52.76
$52.76 - $52.76
$52.76
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

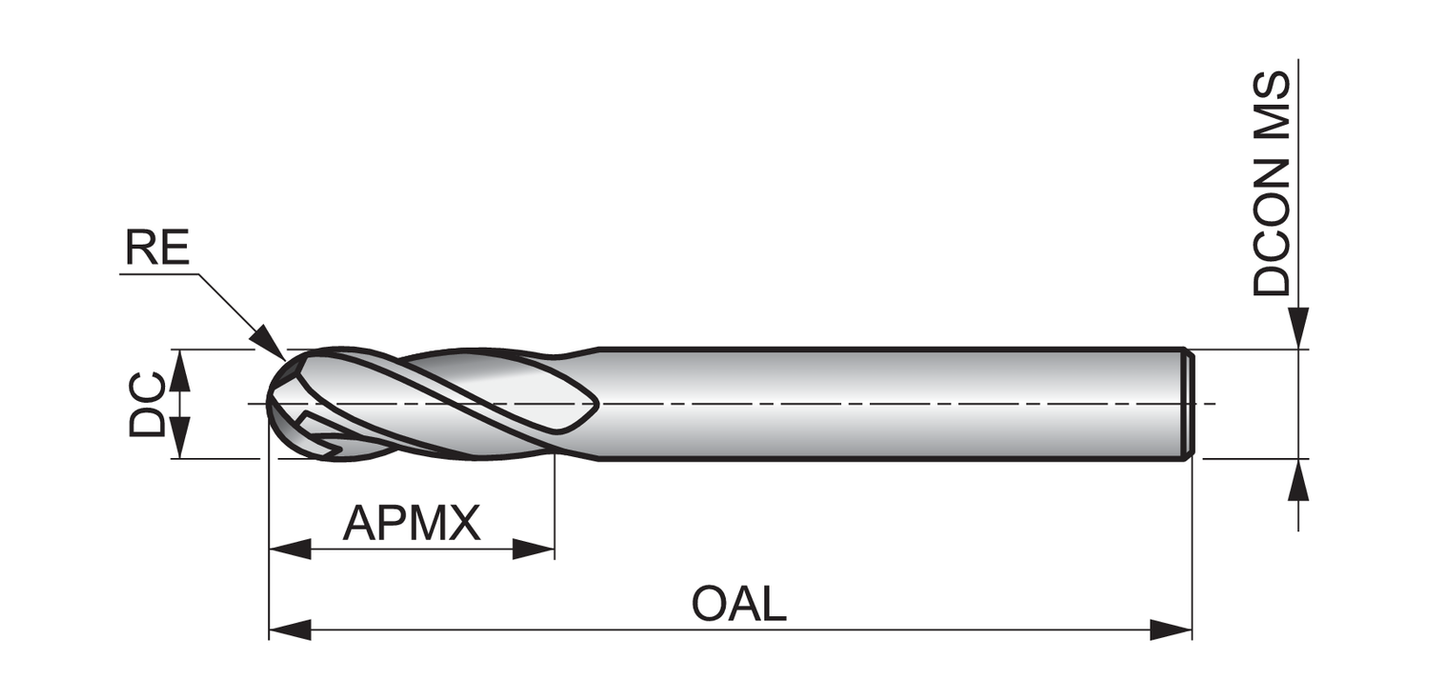

Material: HM

Cutting Diameter - in (DC): 0.3125

Cutting Diameter - mm (DC): 7.94

Overall Length (OAL): 2.5

Connetion Diameter: 0.3125

Shank: Cylindrical shank

Fractional: 5/16

Grade: TiAlN

Corner Radius - in: 0.156

EDP: 7648863

EAN: 7320760849101

MFG Part Number: 7648863
